Antilock Brake System Schematics

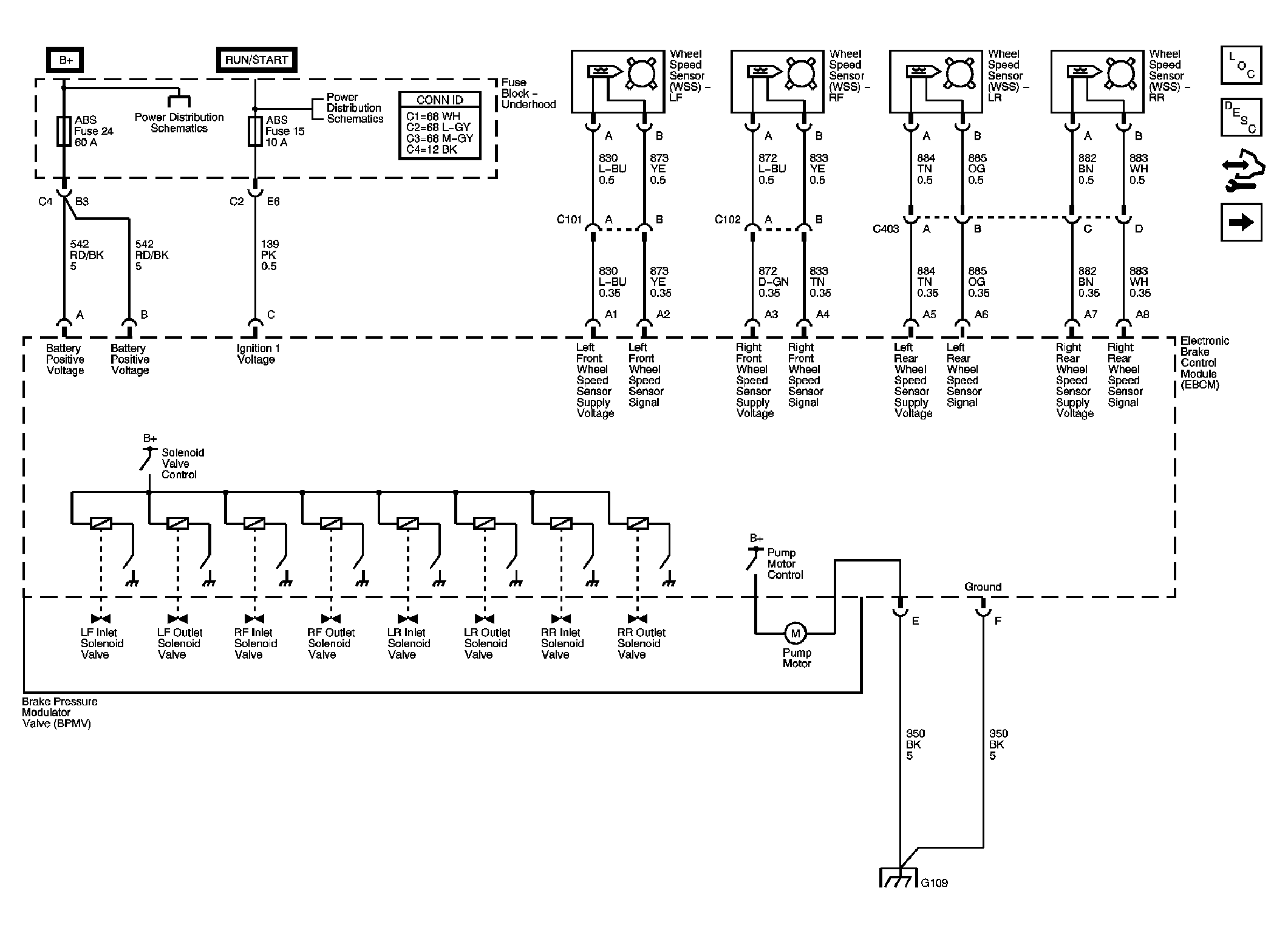

Fig 1: Power, Ground, Brake Pressure Modulator Valve and Wheel Speed Sensors
GM1786853Courtesy of GENERAL MOTORS CORP.

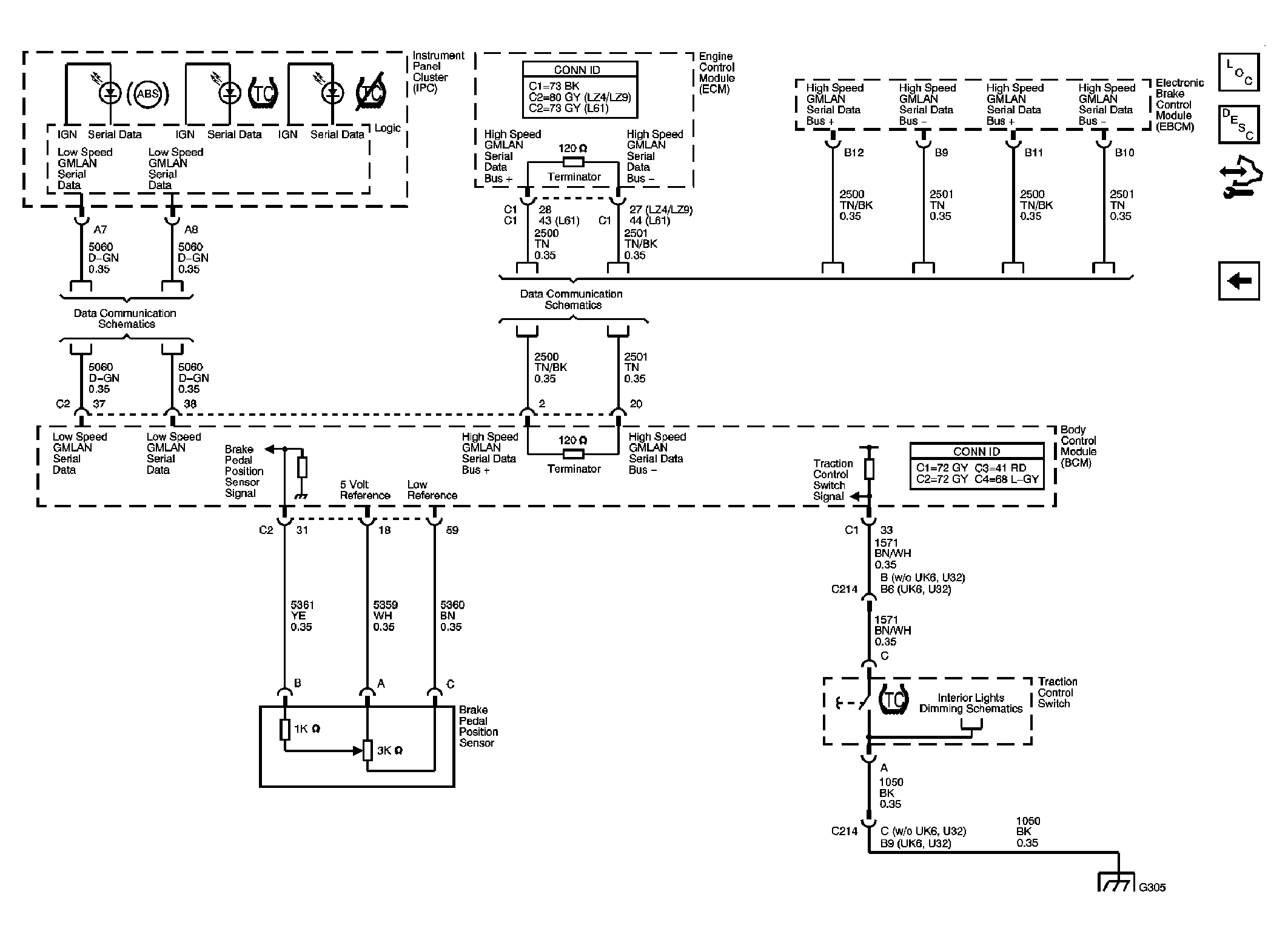

Fig 2: Brake Pedal Position Sensor, Data Link Communications and Traction Control Switch
GM1786861Courtesy of GENERAL MOTORS CORP.
