Power Outlet Component Views

Fig 1: Identifying Cigar Lighter And Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C214
2	Cigar Lighter
3	Traction Control Switch (NW7/NW9) or Auxiliary Power Outlet - Front (w/o NW7/NW9)

Fig 2: Locating Console Auxiliary Power Outlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Console (w/NW7, NW9)

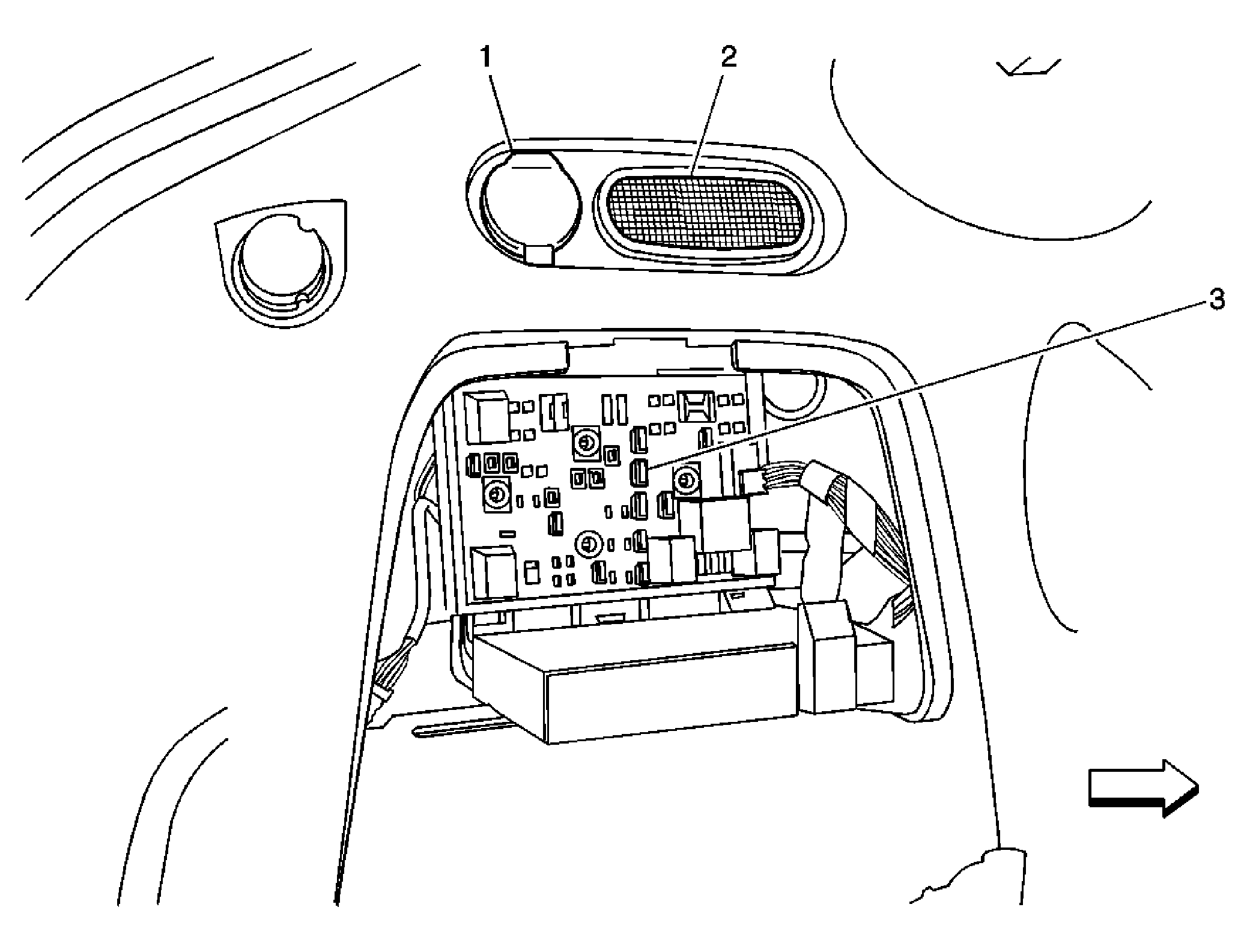

Fig 3: View Of Rear Auxiliary Power Outlet And Cargo Lamp

Courtesy of GENERAL MOTORS CORP.
