Installation Procedure

Install the housing and bearing assembly (1).

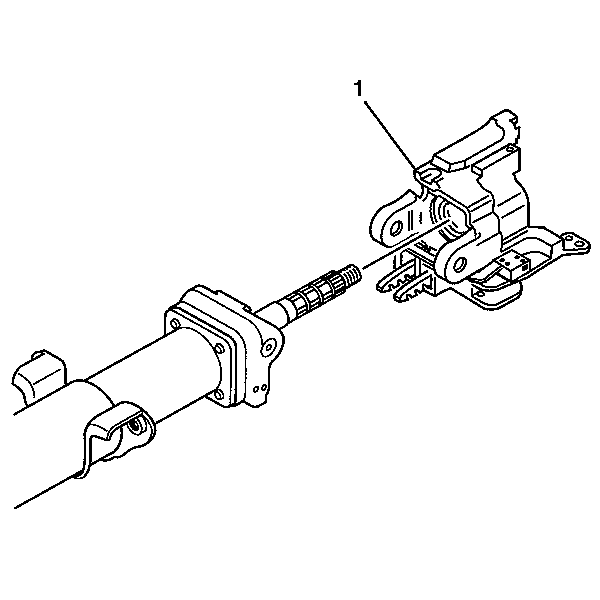

Fig 1: View Of Steering Column Housing & Bearing Assembly
Courtesy of GENERAL MOTORS CORP.
Using the tilt lever position, lock the shoes to the dowel pins (2).

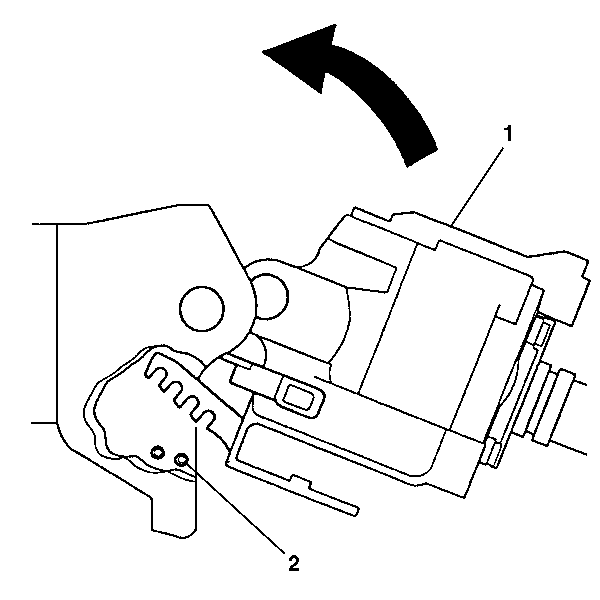

Fig 2: Locking Shoes To Dowel Pins
Courtesy of GENERAL MOTORS CORP.
Rotate the tilt head assembly (1) in order to align the holes for the pivot pins.
Install the 2 pivot pins by performing the following steps:
1. Lubricate the pivot pins (1) with, GM P/N 12346293 (Canadian P/N 992723).
2. Press the pivot pins (1) until the pins are firmly seated.
3. Stake the pivot pins at three new locations (1).

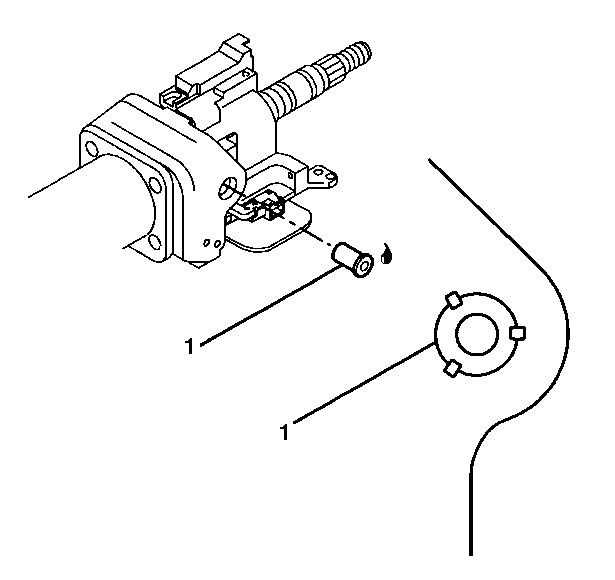

  Fig 3: View Of Pivot Pins At Steering Column Assembly
  Courtesy of GENERAL MOTORS CORP.
Install the inner race (1).

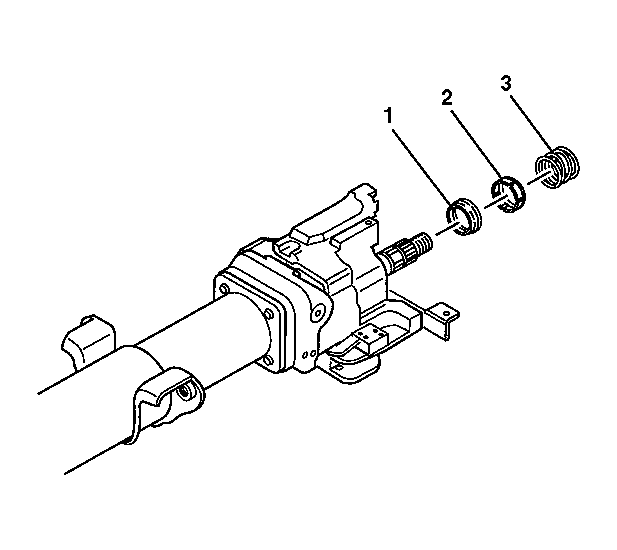

Fig 4: View Of Upper Bearing Spring, Inner Race Seat & Inner Race
Courtesy of GENERAL MOTORS CORP.
Install the upper bearing inner race seat (2).
Install the upper bearing spring (3).
Install the turn signal cancel cam assembly (1).

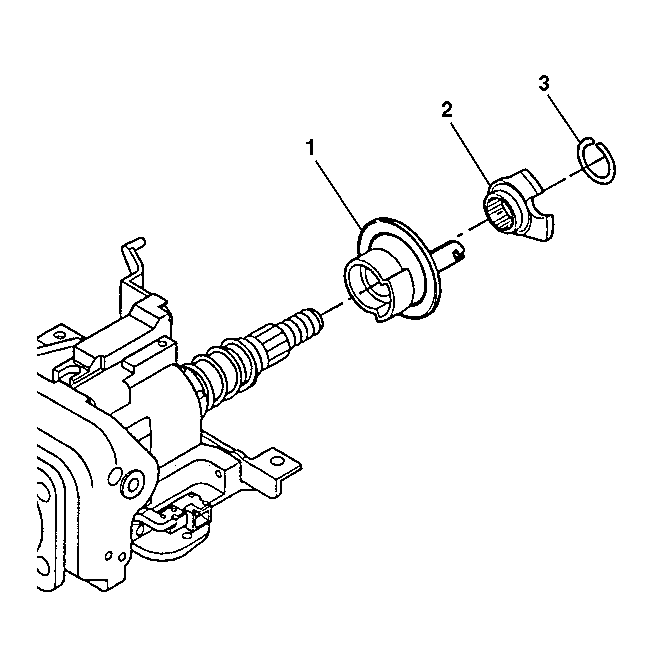

Fig 5: View Of Turn Signal Cancel Cam Assembly, Cam Orientation Plate & Bearing Retainer
Courtesy of GENERAL MOTORS CORP.
Install the cam orientation plate (2).
Install the bearing retainer (3).
Install the bearing retainer ring to the steering shaft.
Compress the cam orientation plate using J 23653-SIR and J 42137 . See Special Tools .

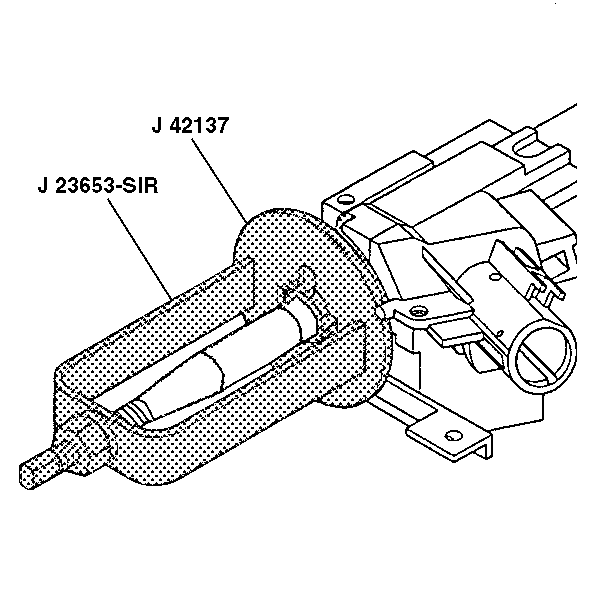

Fig 6: Identifying Special Tools J 23653-SIR & J 42137
Courtesy of GENERAL MOTORS CORP.
Remove J 23653-SIR and J 42137 . See Special Tools .
Install the SIR coil. Refer to Inflatable Restraint Steering Wheel Module Coil Replacement (Coil) .
Enable the SIR system. Refer to SIR Disabling and Enabling .
