Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

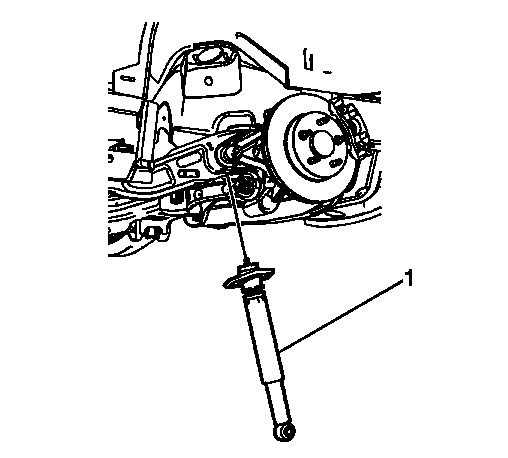

    Fig 1: Identifying Shock Absorber
    GM2013878Courtesy of GENERAL MOTORS CORP.
  1. Position the shock absorber (1) in the vehicle.
    2. Fig 2: Identifying Upper Shock Absorber Mounting Bolts
    GM2013803Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the upper shock absorber nuts (1) and tighten to 25 N.m (18 lb ft).

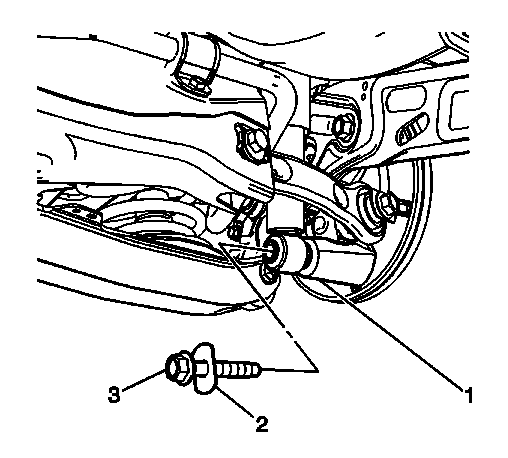

    3. Fig 3: View Of Lower Shock Absorber Bolt & Washer
    GM2013772Courtesy of GENERAL MOTORS CORP.
  3. Install the lower shock absorber bolt (3) and the washer (2) in the knuckle (1). Tighten the lower mounting bolt to 180 N.m (133 lb ft) .,
  4. Remove the jack stand from the knuckle.
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
