Front Side Door Window Inner Sealing Strip Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

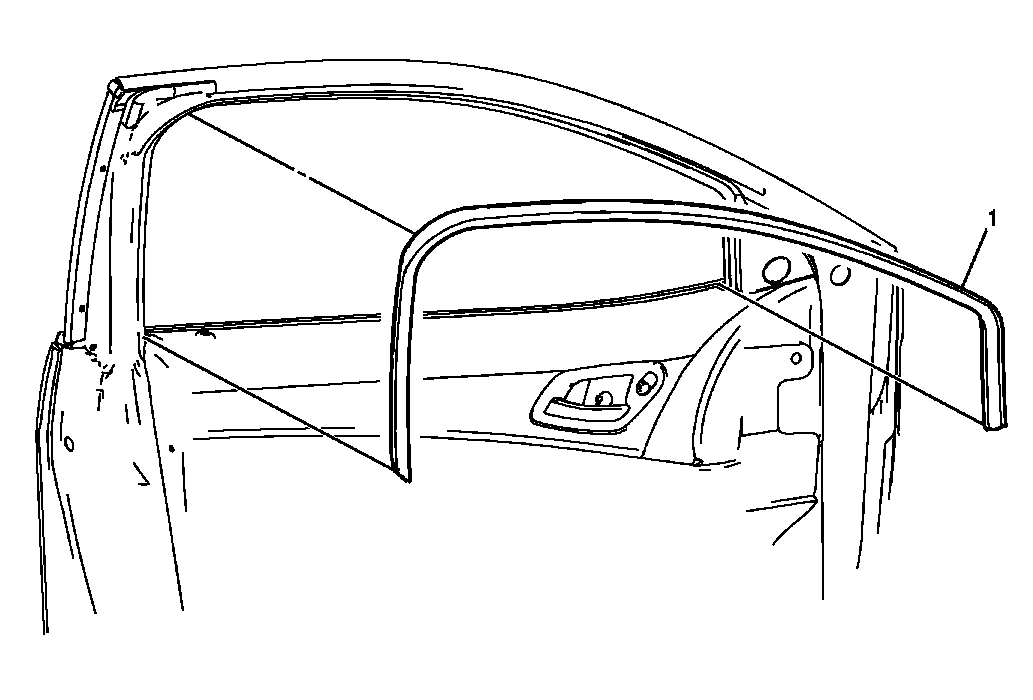

Fig 1: View Of Front Side Door Window Inner Sealing Strip

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Door Window Inner Sealing Strip Procedure Pull the inner sealing strip away from the inner window flange to remove. When installing the new sealing strip, start at the lower inside corner of the door frame.
