Steering Wheel Secondary/Configurable Control Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

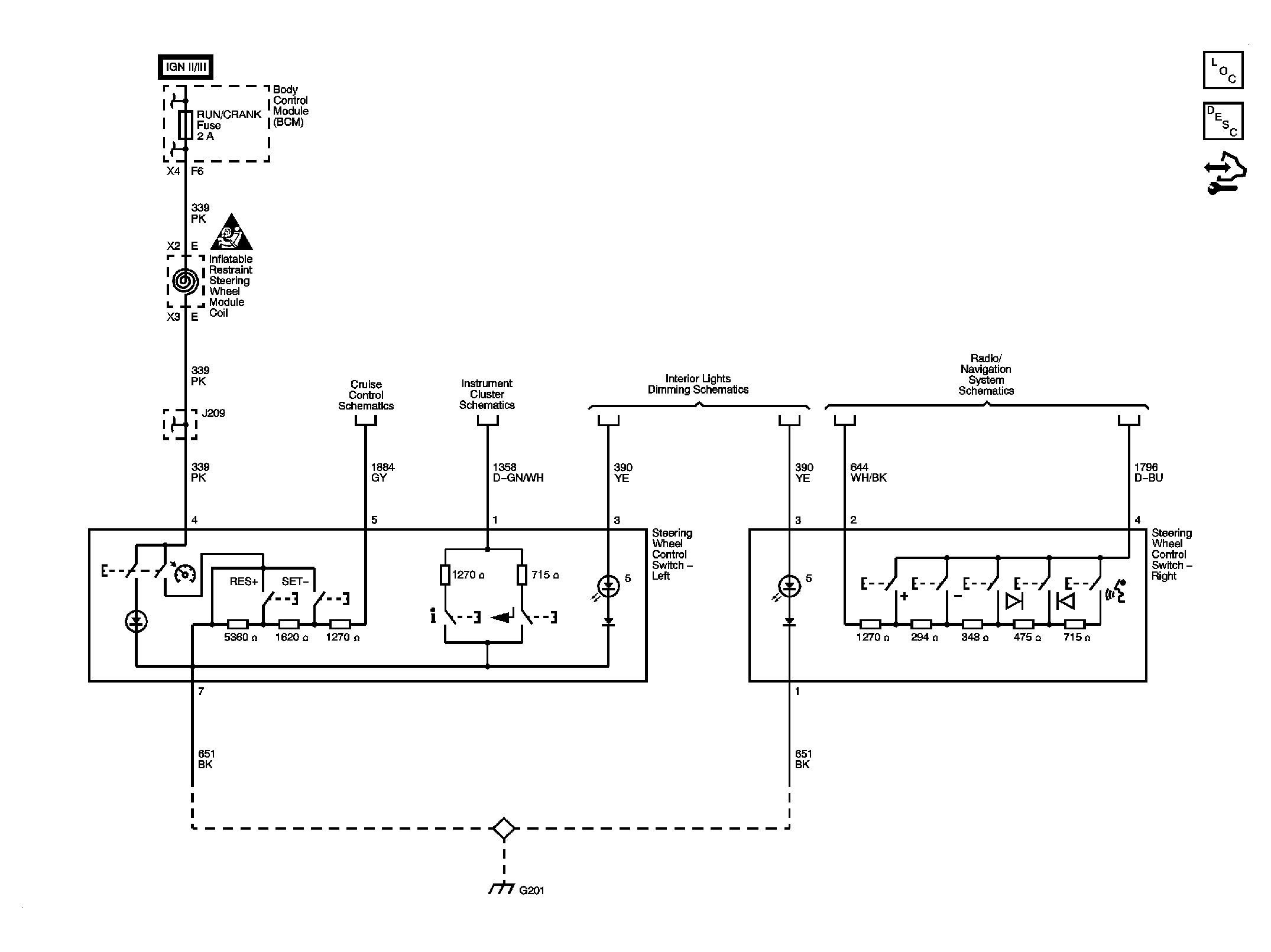

Fig 1: Steering Wheel Secondary/Configurable Control Schematic
GM1979788Courtesy of GENERAL MOTORS CORP.
