Generator Control Module Coolant Pump Hose Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

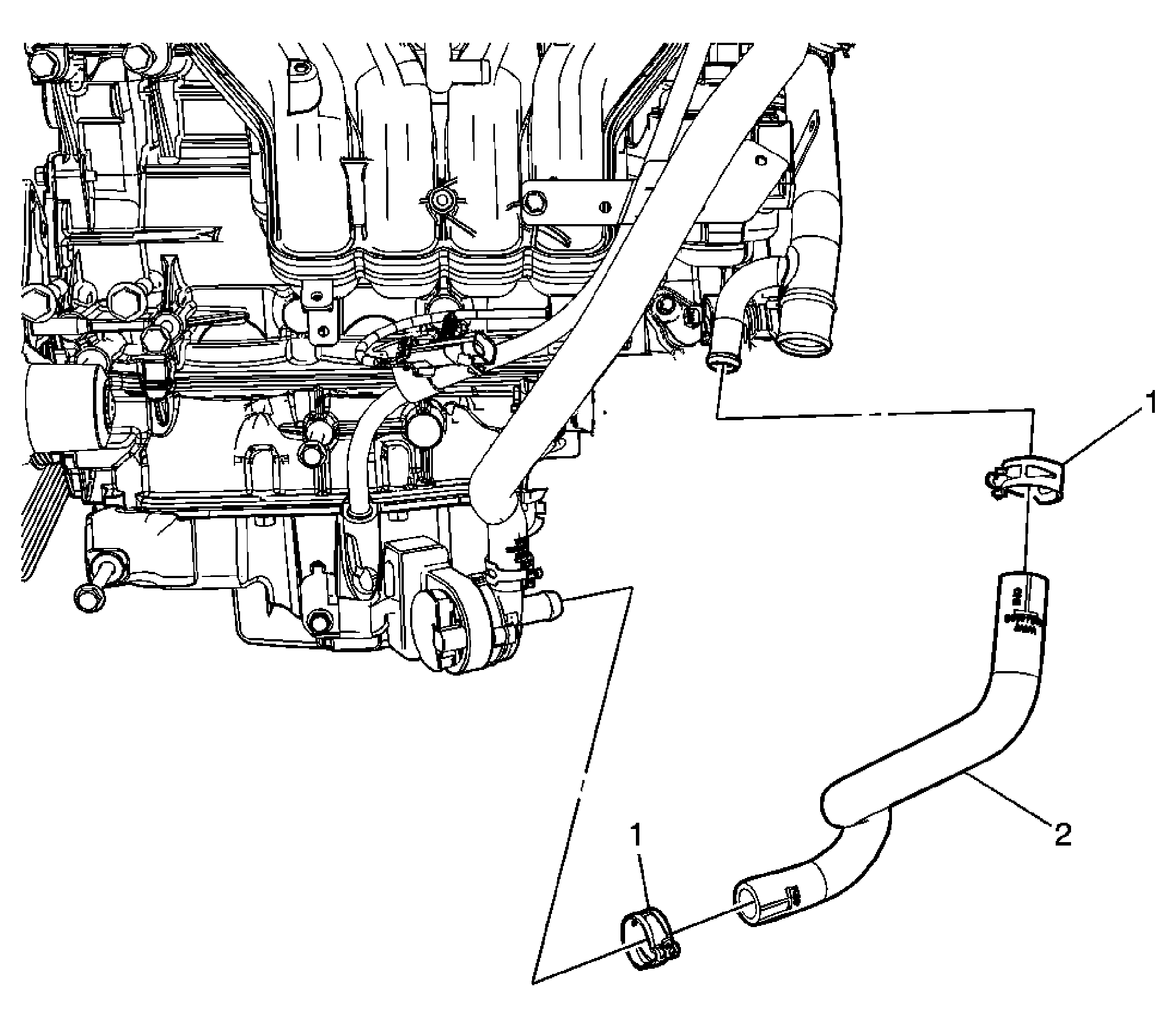

Fig 1: Identifying Generator Control Module Coolant Pump Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (LY7, LZ4, Static Fill) or Cooling System Draining and Filling (LAT Static Fill) or Cooling System Draining and Filling (LE5 Static Fill) . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Generator Control Module Coolant Pump Hose Clamp (Qty: 2) Procedure: Using J 38185 reposition the generator coolant pump inlet hose clamps. Special Tools: J 38185 Hose Clamp Pliers
2	Generator Control Module Coolant Pump Hose

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Refer to Cooling System Draining and Filling (LY7, LZ4, Static Fill) or Cooling System Draining and Filling (LAT Static Fill) or Cooling System Draining and Filling (LE5 Static Fill) .
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

Generator Control Module Coolant Pump Hose Clamp (Qty: 2)
Procedure:
Using J 38185 reposition the generator coolant pump inlet hose clamps.
Special Tools:
J 38185 Hose Clamp Pliers

Generator Control Module Coolant Pump Hose
