Toe Link Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

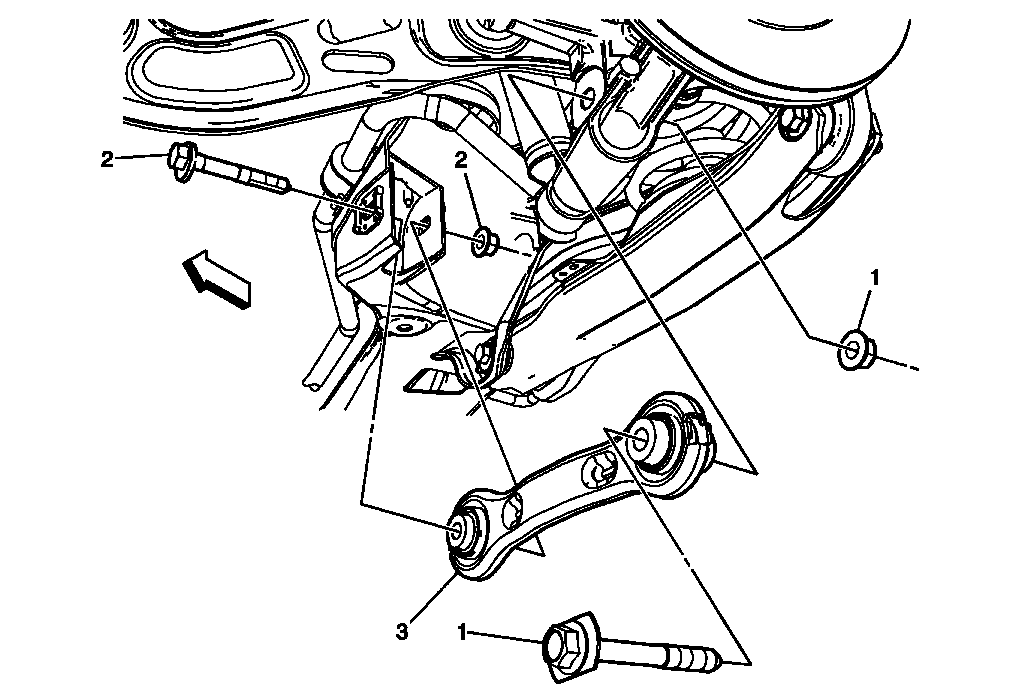

Fig 1: Identifying Toe Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Toe Link to Knuckle Bolt/Nut NOTE: Refer to Fastener Notice . Procedure: Use the J 45059 to tighten to specification. Tighten: 110 N.m (81 lb ft) + 70 degree rotation Special Tools: J 45059 Angle Meter
2	Toe Link to Support Bolt/Nut Tighten: 110 N.m (81 lb ft)
3	Toe Link Tip: During installation, it is recommended to loosely install all fasteners prior to applying torque. Adjust rear toe. Refer to Rear Toe Adjustment .
