Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

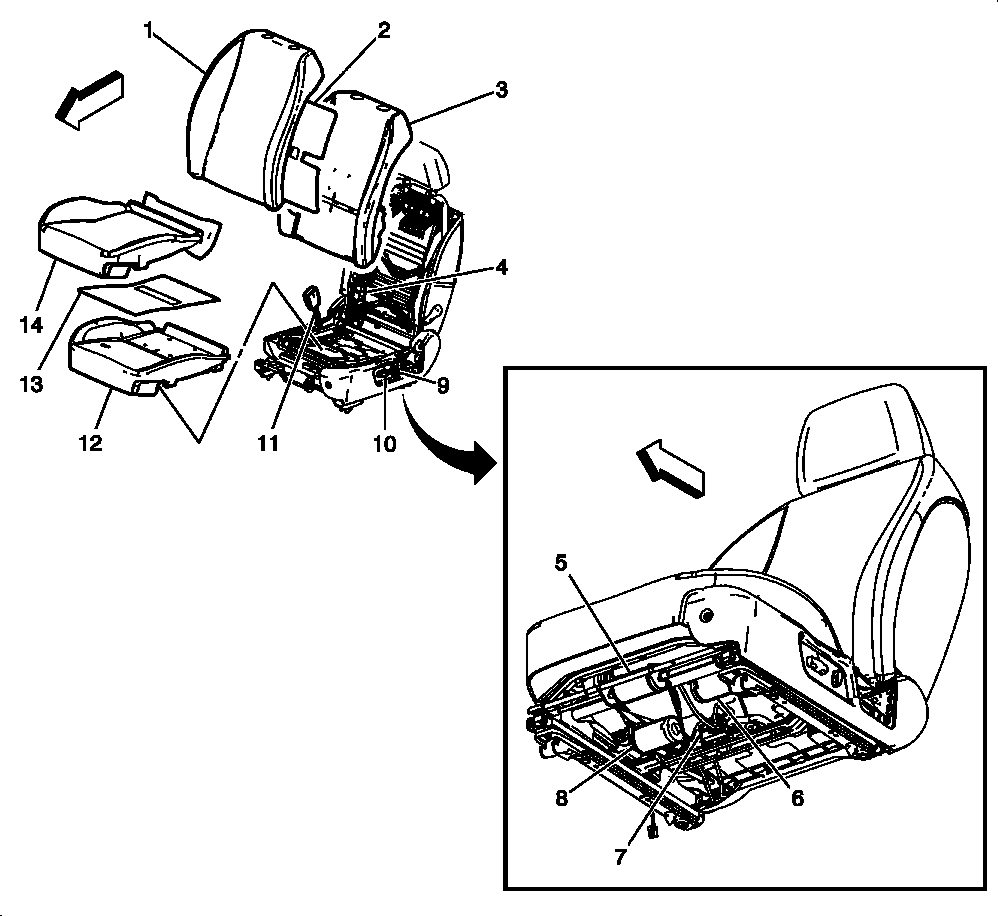

Fig 1: View Of Driver Heated Seats

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Cover - Driver
2	Heated Seat Element - Driver Back (KA1)
3	Seat Back Cushion Pad - Driver
4	Seat Recline Motor - Driver (1LZ)
5	Seat Horizontal Motor - Driver (AG1 or 1LZ)
6	Seat Rear Vertical Motor - Driver (AG1 or 1LZ)
7	Heated Seat Control Module - Driver (KA1)
8	Seat Front Vertical Motor - Driver (AG1 or 1LZ)
9	Seat Recline Switch - Driver
10	Seat Adjuster Switch - Driver
11	Heated Seat Switch - Driver (KA1)
12	Seat Belt Switch - Driver
13	Seat Cushion - Driver
14	Heated Seat Element - Driver Cushion (KA1)
15	Seat Cover - Driver

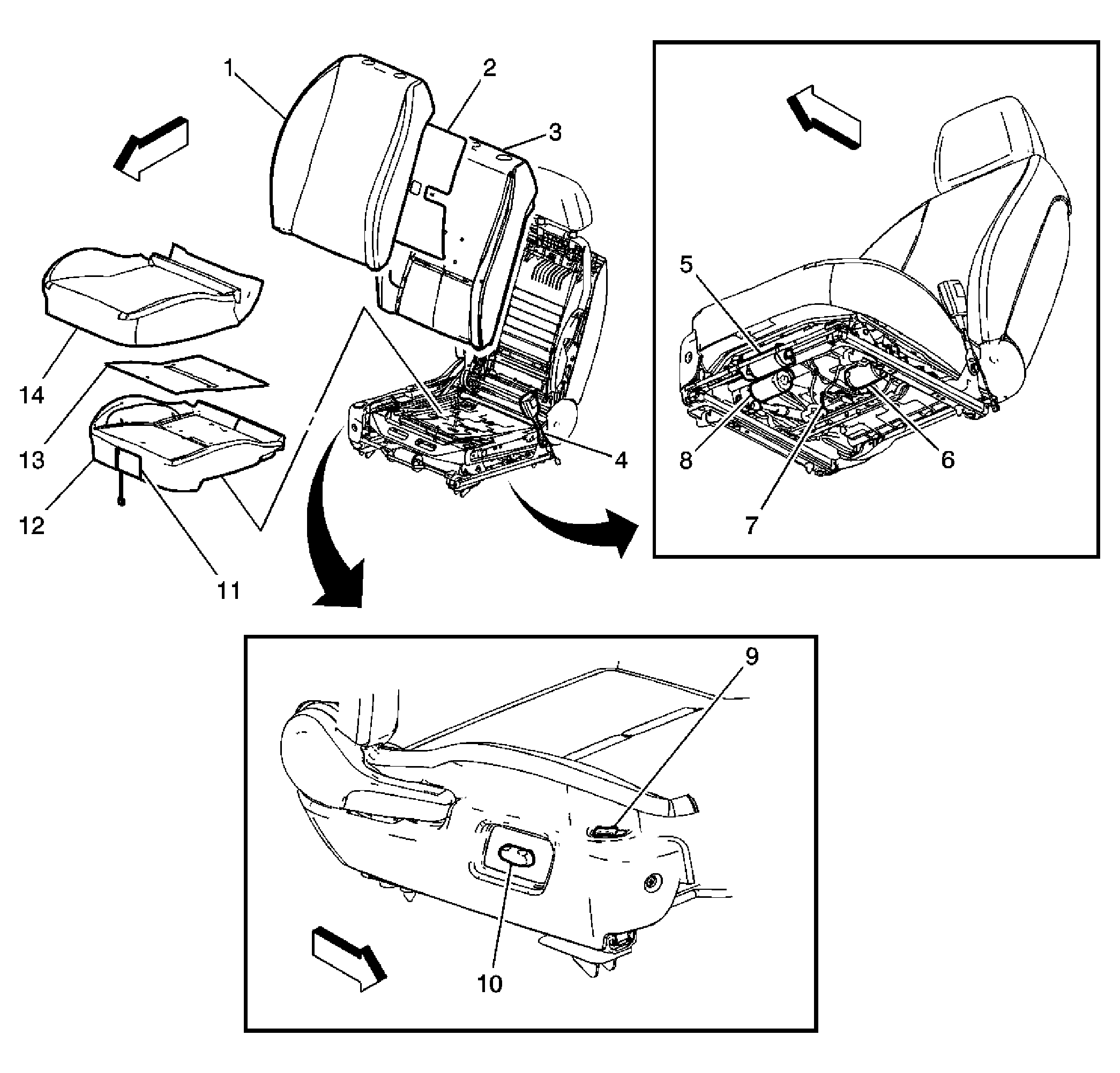

Fig 2: View Of Passenger Heated Seats

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Cover - Passenger
2	Heated Seat Element - Passenger Back (KA1)
3	Seat Back Cushion Pad - Passenger
4	Seat Belt Switch - Passenger
5	Seat Horizontal Motor - Passenger (AG2)
6	Seat Rear Vertical Motor - Passenger (AG2)
7	Heated Seat Control Module - Passenger (KA1)
8	Seat Front Vertical Motor - Passenger (AG2)
9	Heated Seat Switch - Passenger (KA1)
10	Seat Adjuster Switch - Passenger (AG2)
11	Seat Cushion - Passenger
12	Heated Seat Element - Passenger Cushion (KA1)
13	Seat Cover - Passenger

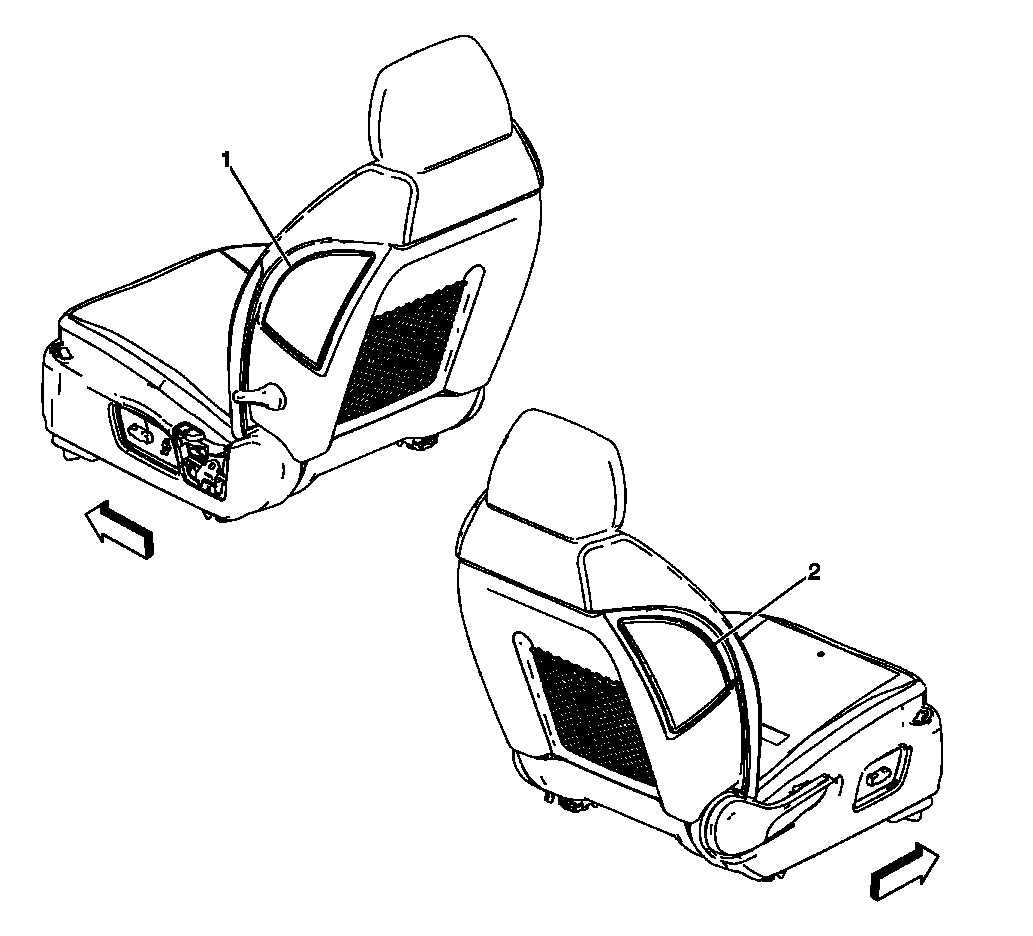

Fig 3: Identifying Side Impact Inflatable Restraints Modules

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left
2	Inflatable Restraint Side Impact Module - Right

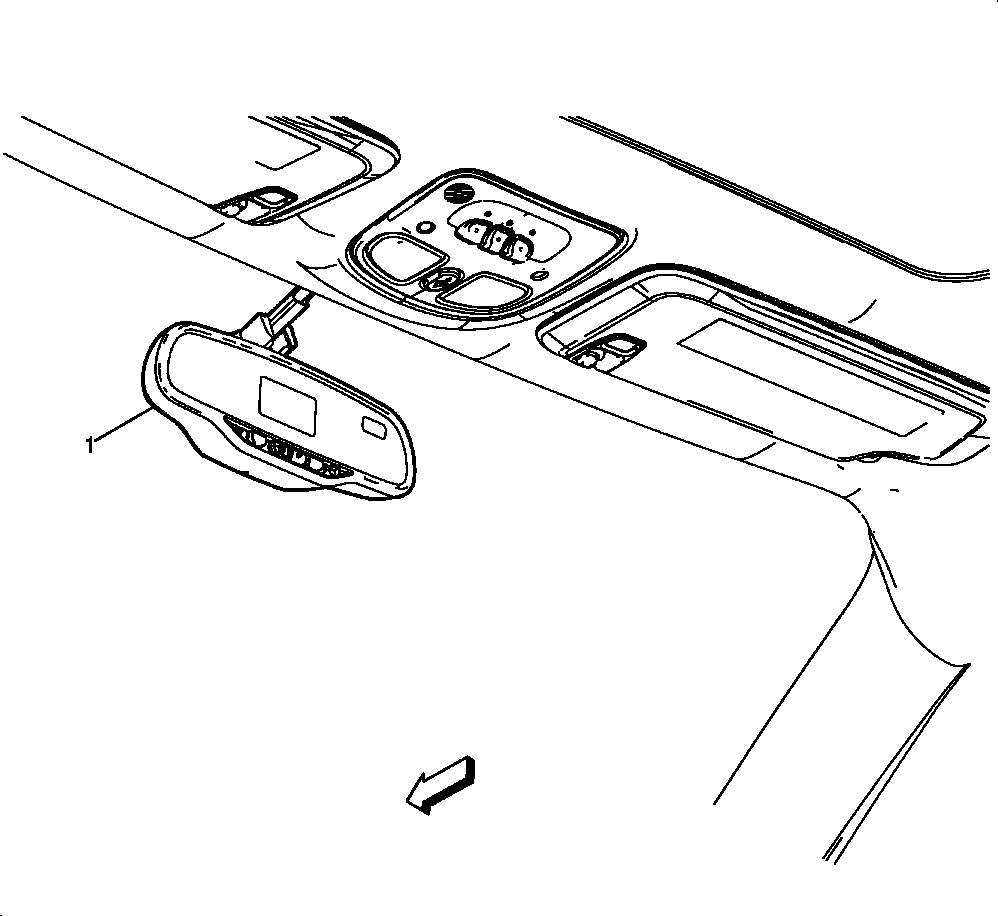

Fig 4: View Of Inside Rearview Mirror

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (UE1)

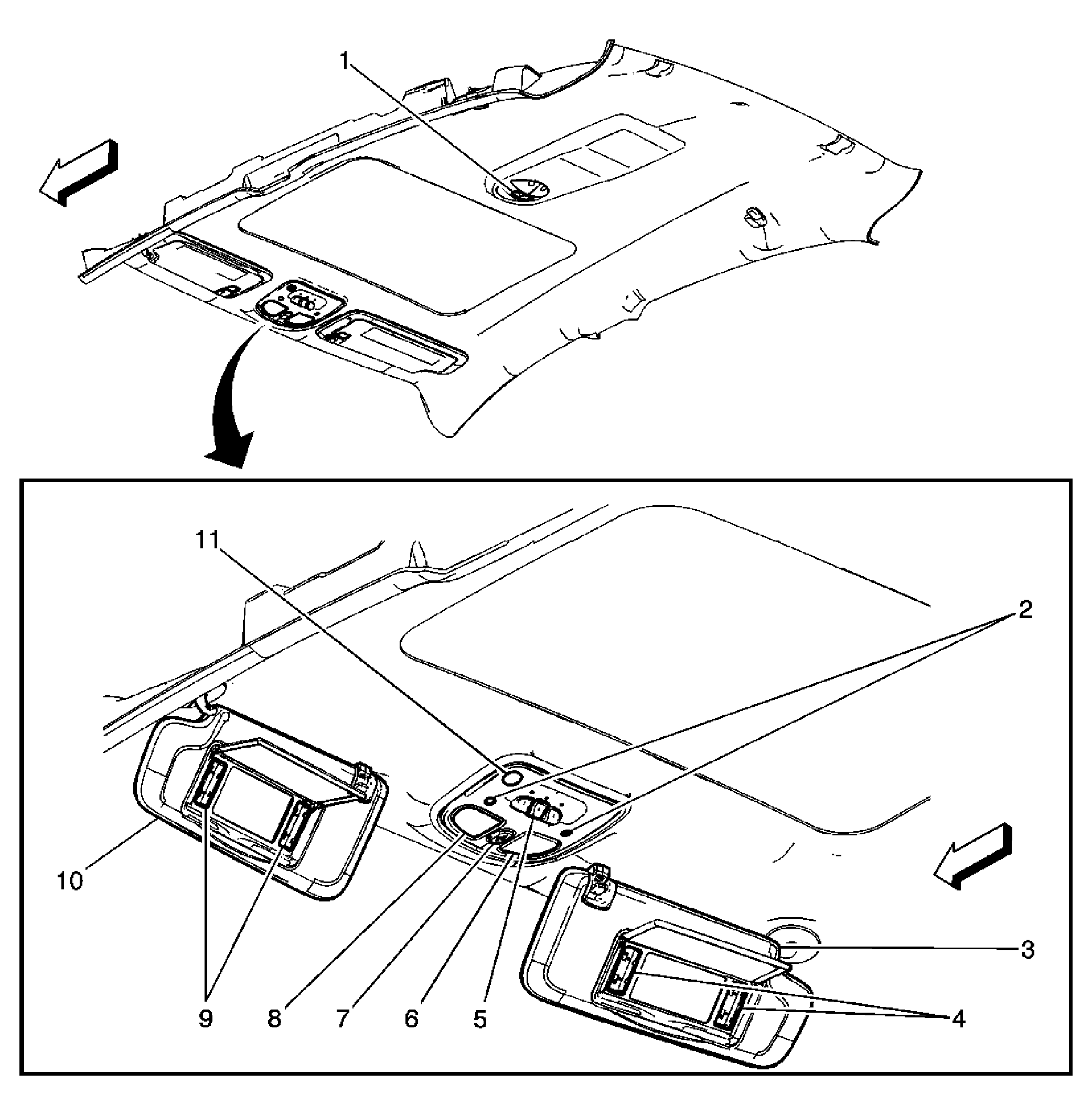

Fig 5: View Of Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dome/Reading Lamps
2	Sunshade - Right
3	Vanity Mirror Lamp - Right (TR0) (Part of Sunshade - Right)
4	Courtesy Lamp
5	Sunroof Switch (CF5)
6	Courtesy Lamp
7	Vanity Mirror Lamp - Left (TR0) (Part of Sunshade - Left)
8	Sunshade - Left
9	Garage Door Opener (GDO) (UG1)
10	Cellular Telephone Microphone (UE1)

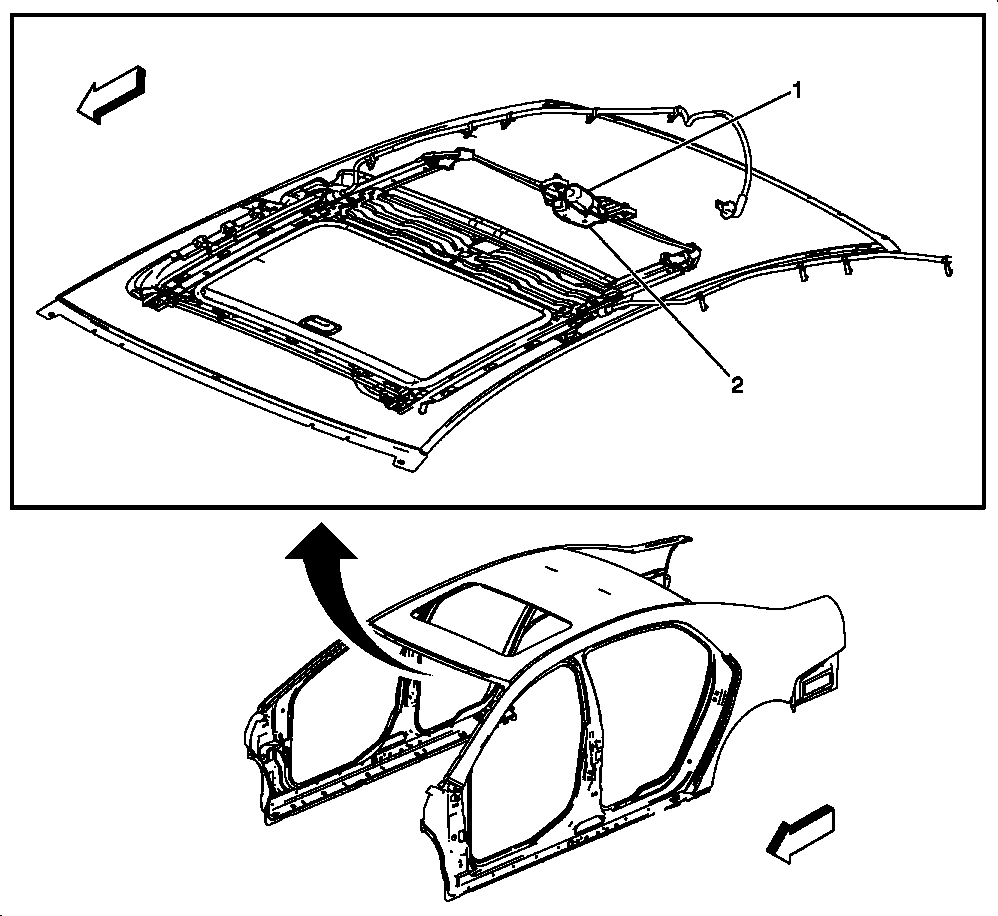

Fig 6: Identifying Sunroof Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Motor (CF5)
2	Sunroof Control Module (CF5)

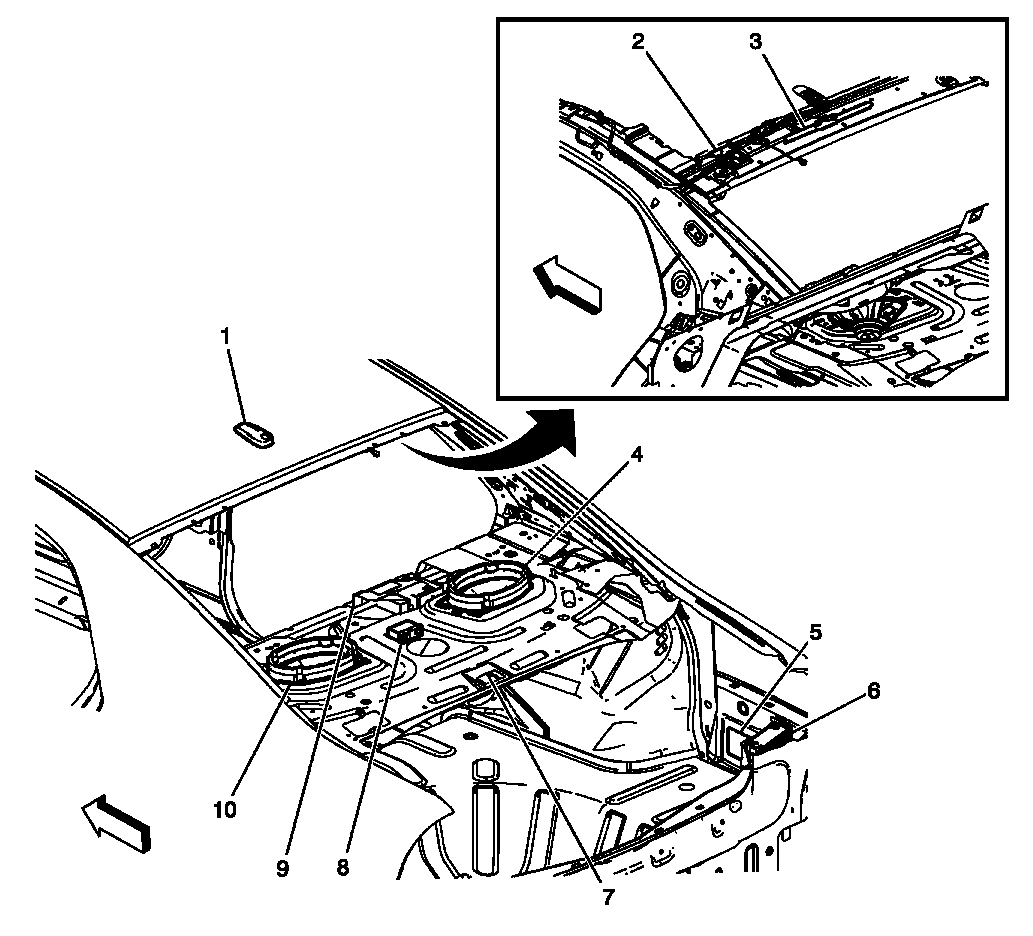

Fig 7: Locating Rear Window Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cellular and Navigation Antenna (UE1)
2	Radio Antenna Module
3	Remote Start Antenna (AP8)
4	Speaker - Right Rear
5	Audio Amplifier (UQ3)
6	Remote Control Door Lock Receiver (RCDLR)
7	Digital Radio Receiver (U2K)
8	Speaker - Left Rear

Fig 8: Identifying Generator Battery Assembly (HP7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Generator Battery 1
2	Generator Battery Temperature Sensor 1
3	Generator Battery Temperature Sensor 1
4	Generator Battery 2
5	Generator Battery Temperature Sensor 2
6	Generator Battery Temperature Sensor 2
7	Generator Battery 3
8	Generator Battery Temperature Sensor 3
9	Generator Battery Temperature Sensor 3
10	Generator Battery Vent Fan
11	Main Contactor Relay
12	Battery Disconnect Switch
13	Generator Battery Disconnect Control Module

Fig 9: Identifying Rear Compartment Courtesy lamp (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp

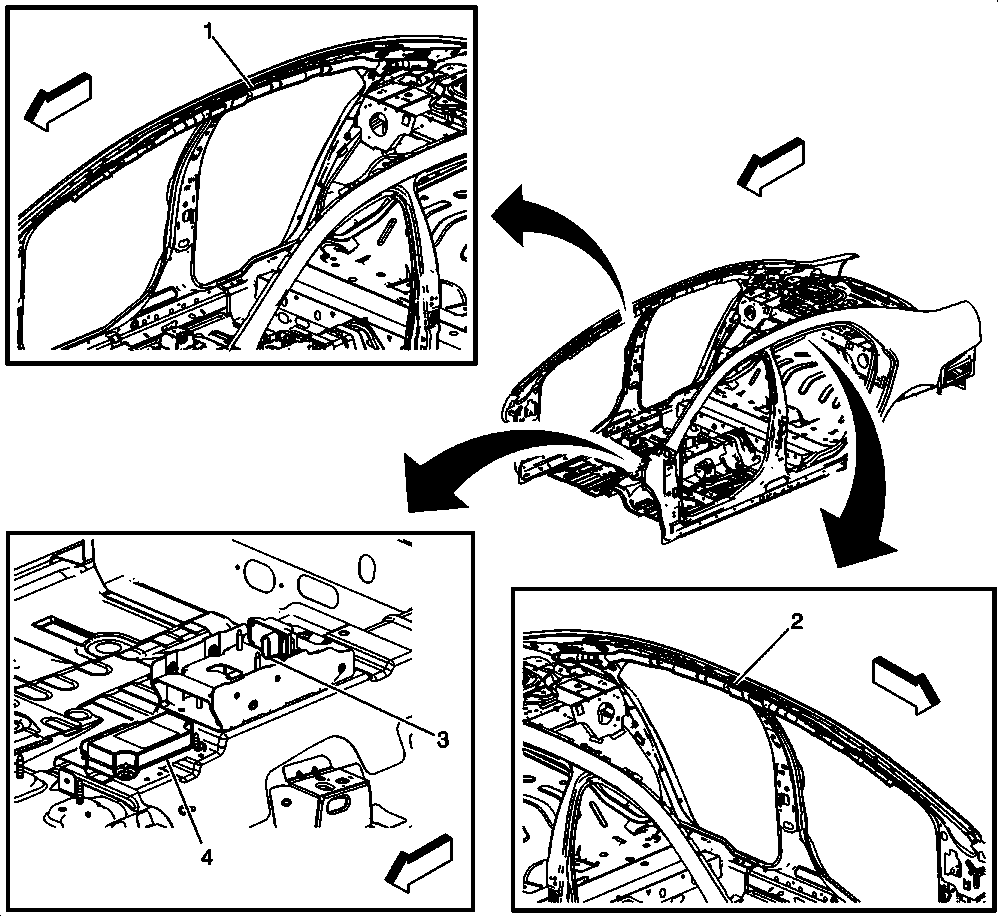

Fig 10: Identifying Roof Rail Inflatable Restraints

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Right Front
2	Inflatable Restraint Roof Rail Module - Left Front
3	Yaw and Lateral Accelerometer Sensor
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)

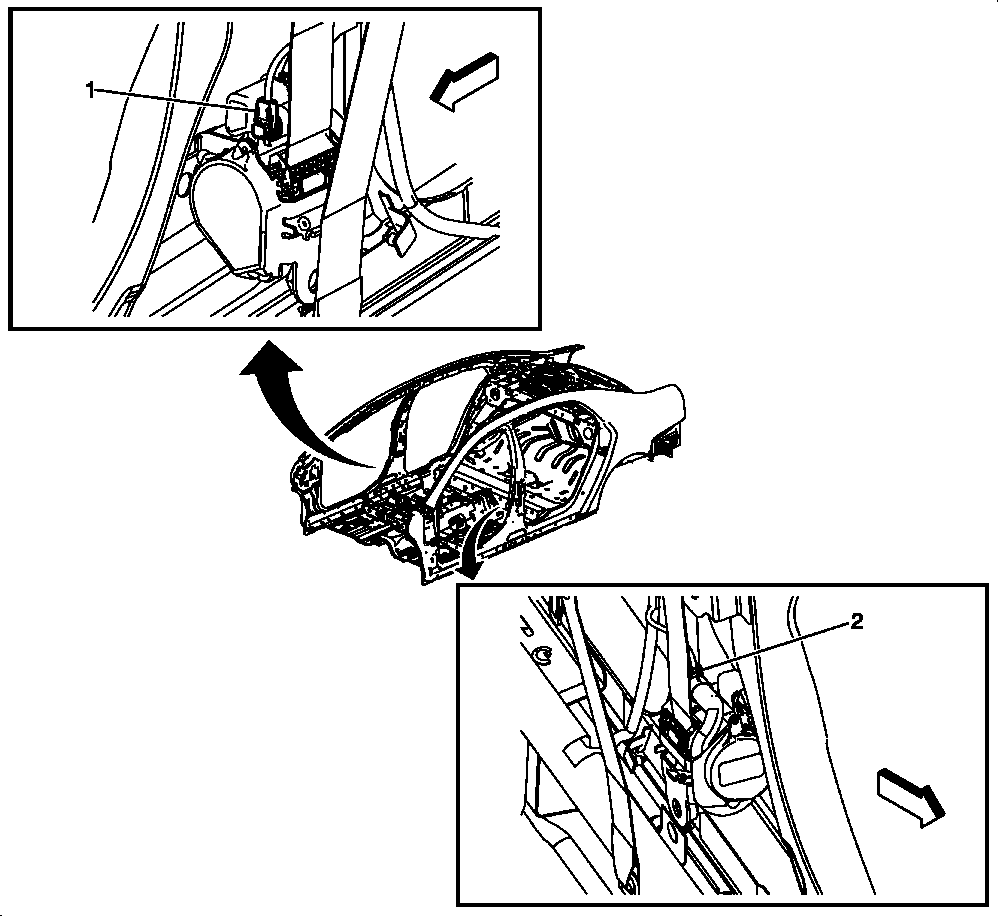

Fig 11: Identifying Seat Belts Inflatable Restraints

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretensioner - Passenger
2	Seat Belt Retractor - Passenger
3	Seat Belt Pretensioner - Driver
4	Seat Belt Retractor - Driver
