Installation Procedure

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

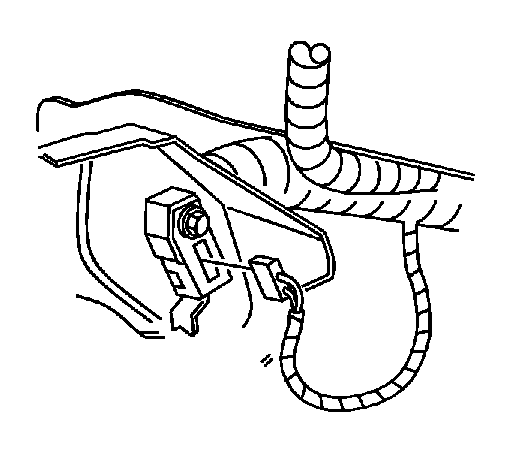

    Fig 1: Identifying Park Brake Warning Switch & Connector
    GM658944Courtesy of GENERAL MOTORS CORP.
  1. Install the park brake warning lamp switch to the park brake lever assembly. Align the pin to the locator hole.
    2. NOTE: Refer to Fastener Notice .
  2. Install the park brake warning lamp switch retaining bolt.

    Tighten:  Tighten the bolt to 2.0 N.m (18 lb in).

  3. Connect the park brake warning lamp switch electrical connector.
  4. Install the left closeout/insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
