Installation Procedure

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

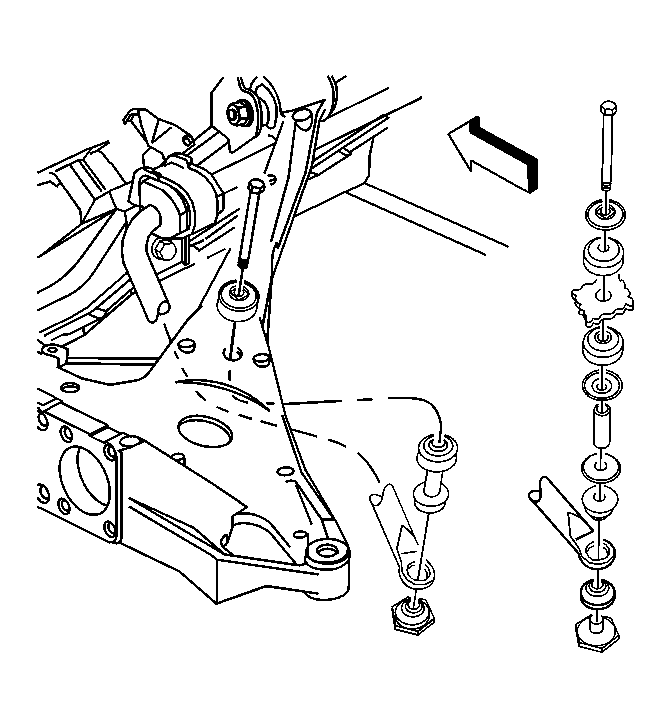

    Fig 1: Expanded View of Stabilizer Shaft Link Bolt, Nut, Insulators & Spacer
    GM105020Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Loosely install the stabilizer link insulators, spacer, nut and bolt.

    Tighten:  Tighten the stabilizer shaft link nut to 15 N.m (11 lb ft).

  2. Lower the vehicle.
