OnStar Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

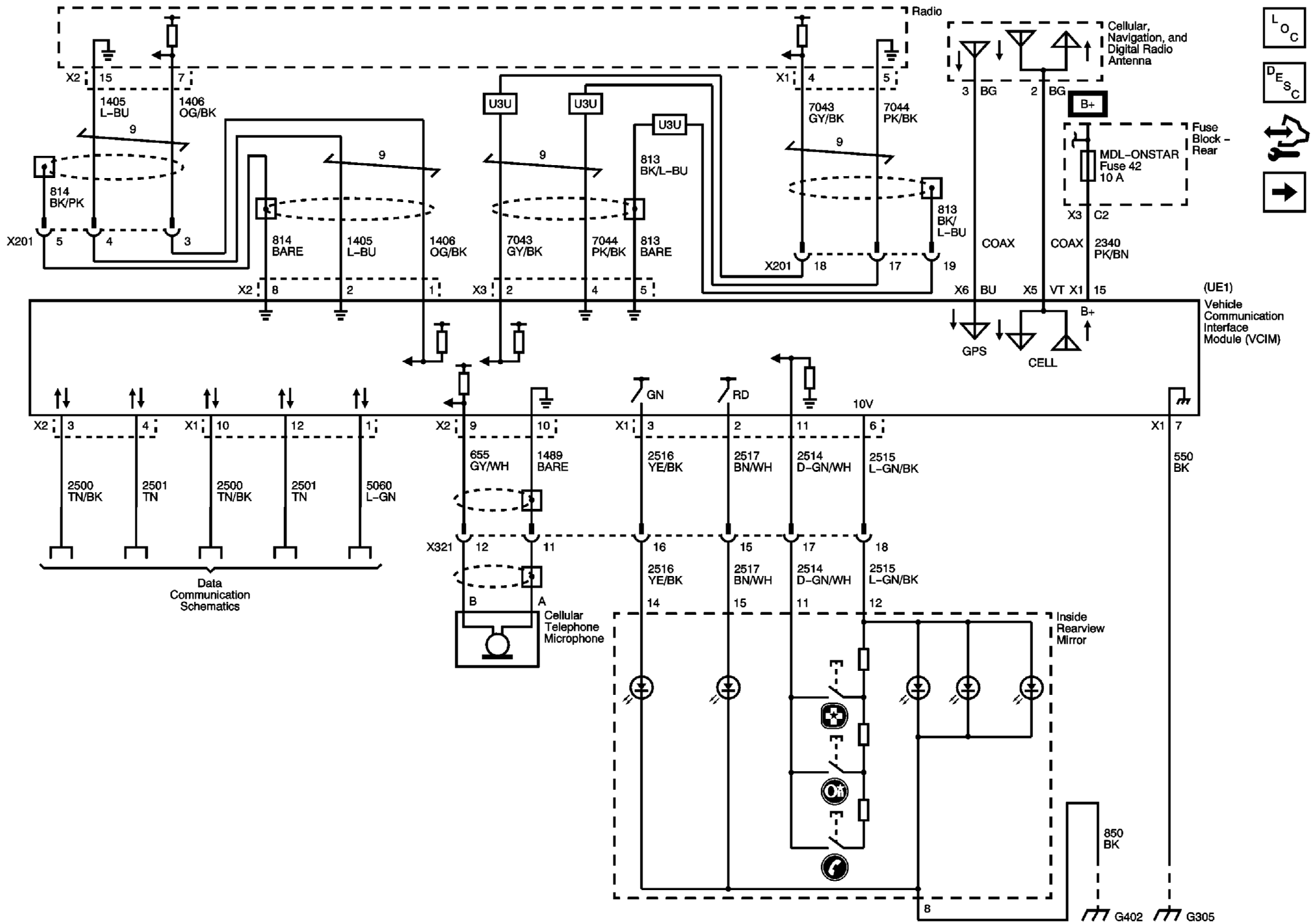

Fig 1: UE1
GM1886692Courtesy of GENERAL MOTORS CORP.

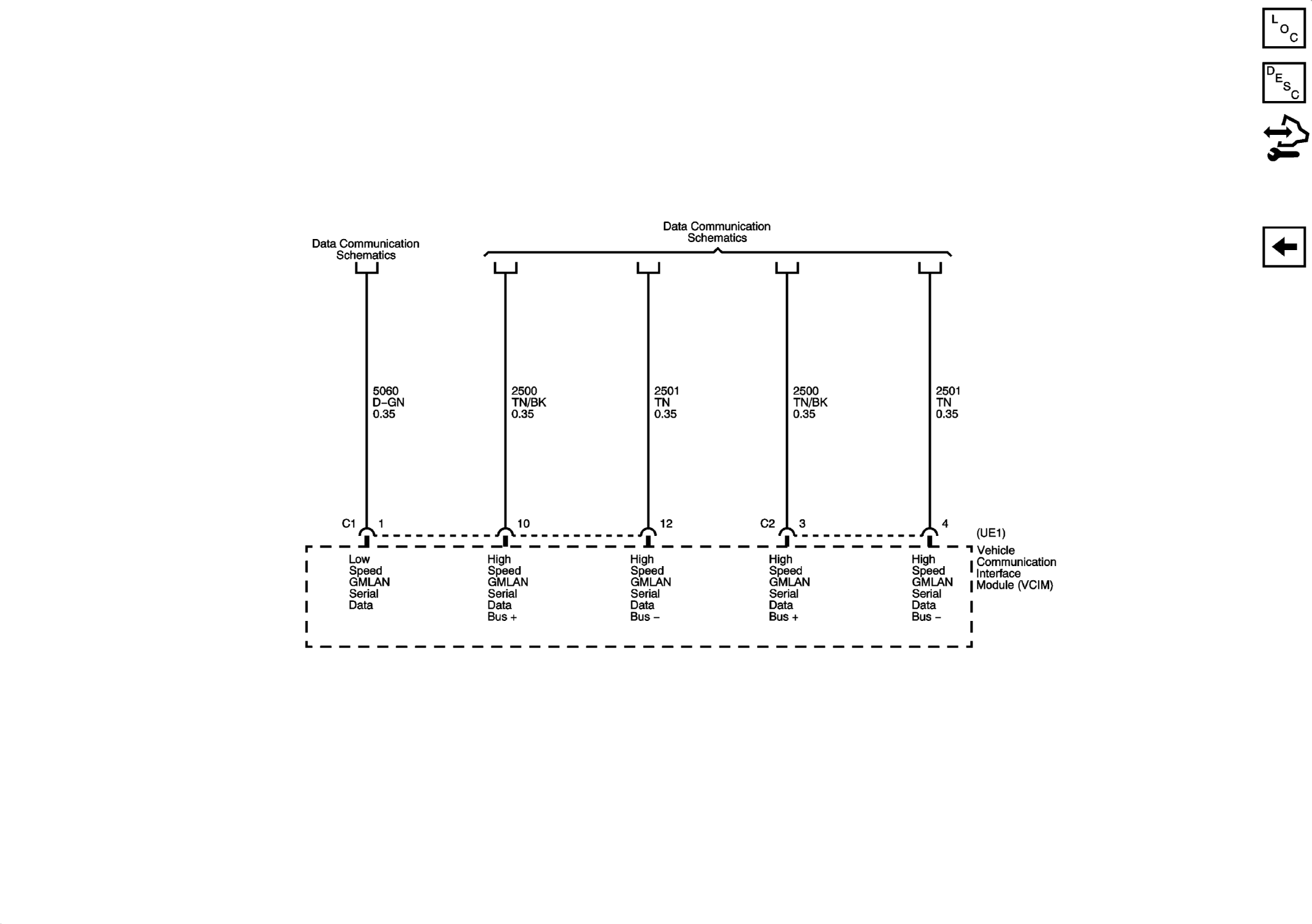

Fig 2: Data Link Communication
GM1886700Courtesy of GENERAL MOTORS CORP.
