Front Upper Speaker Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

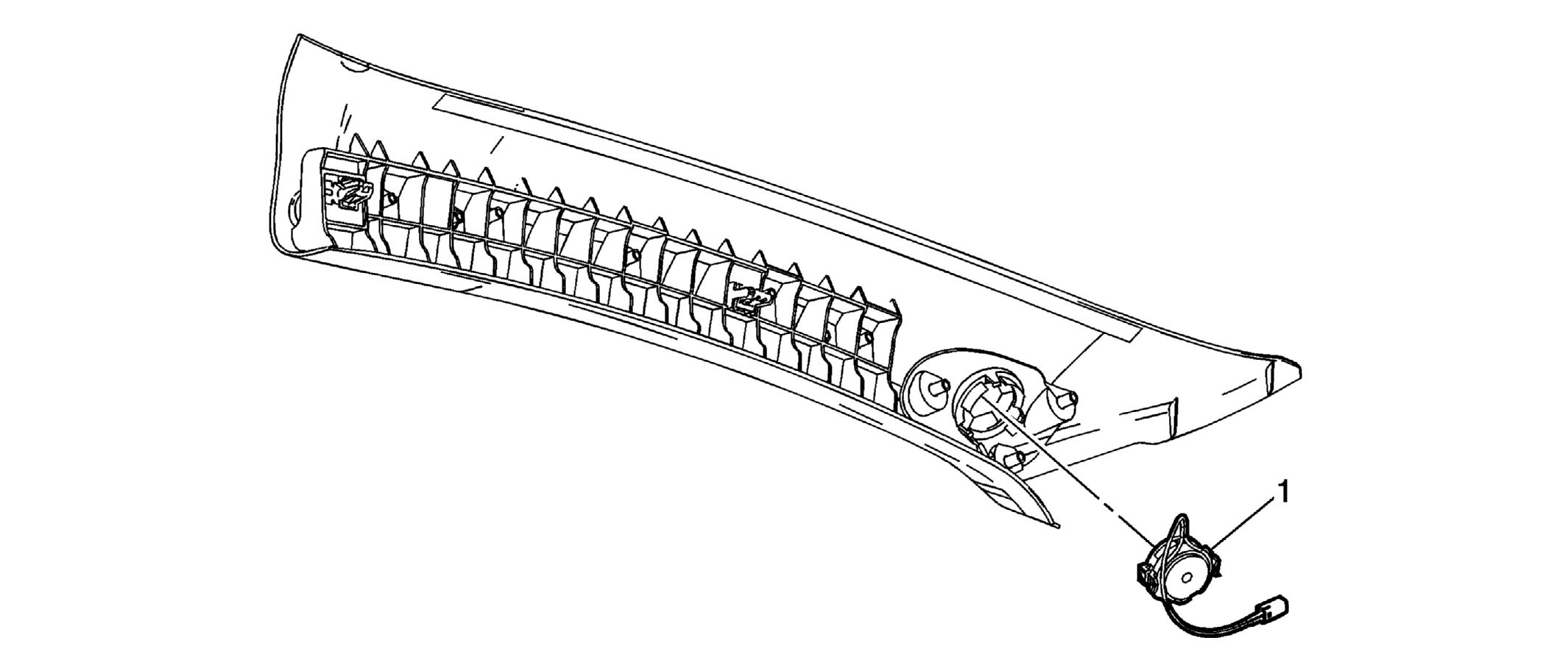

Fig 1: Identifying Front Upper Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
1	Speaker Assembly, Radio Windshield Side Garnish Molding Tip: Release the tabs on the windshield pillar speaker carrier to remove the speaker from the molding.
