Object Detection Schematics

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

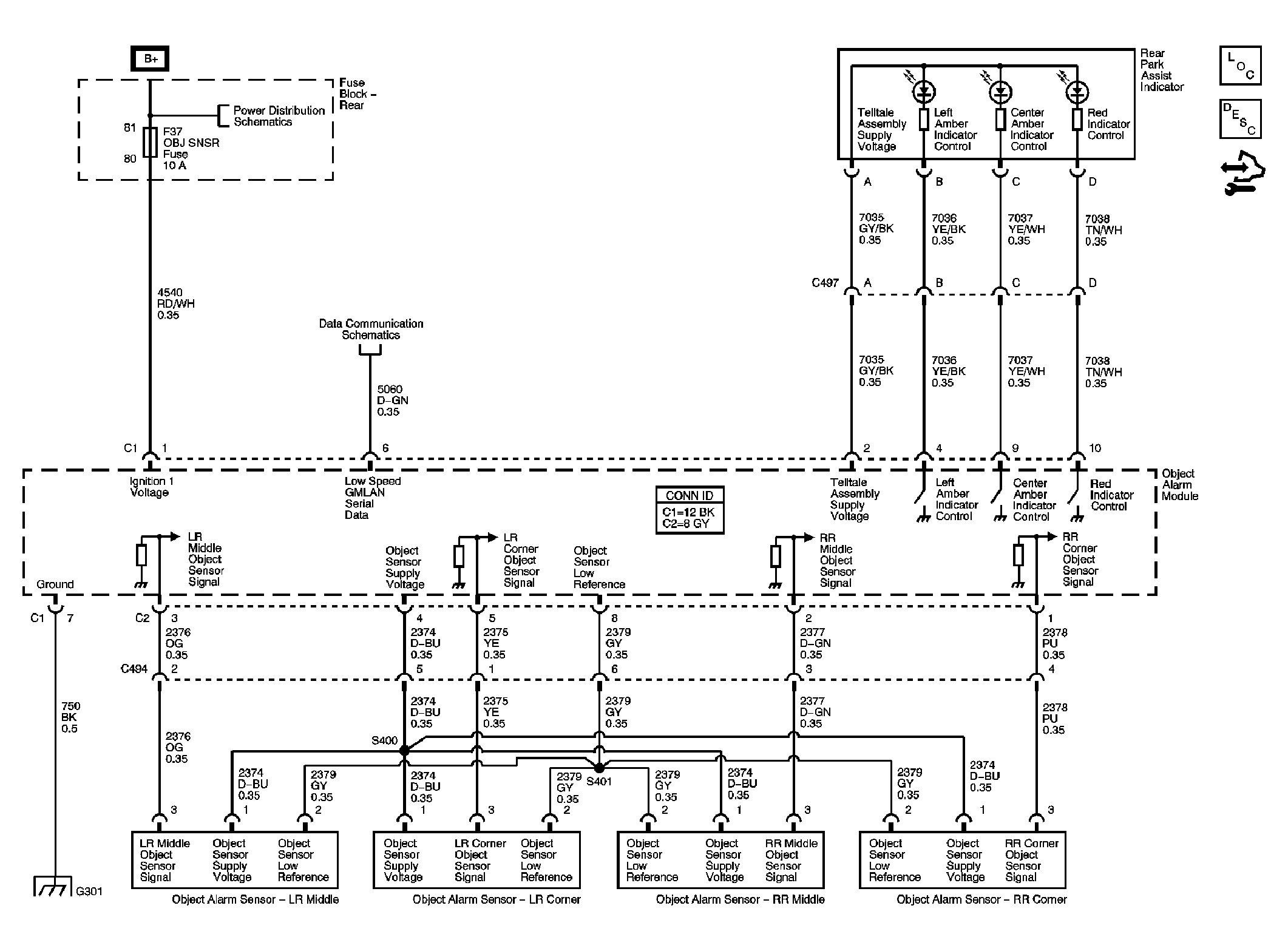

Fig 1: Rear Park Assist - UD7
GM1795346Courtesy of GENERAL MOTORS CORP.
