Installation Procedure

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

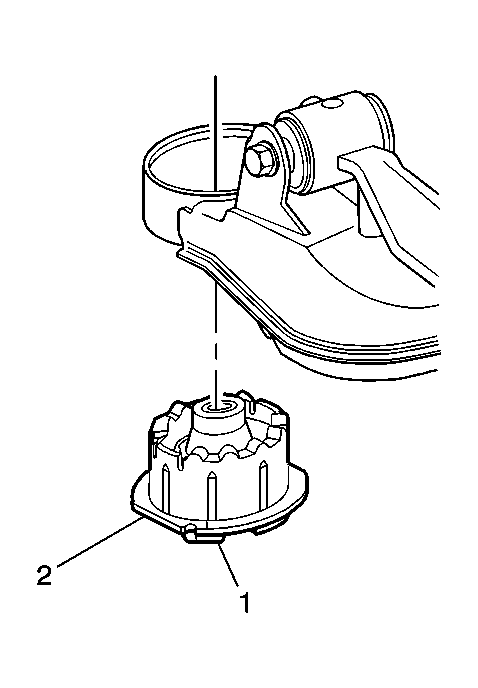

    Fig 1: View of Tabs and Inboard Mount of Support Assembly
    GM105038Courtesy of GENERAL MOTORS CORP.
  1. Tap the mount into the support assembly, ensuring that the flat is outboard (2) and the notch (1) is rearward upon installation.
  2. Bend the tabs outboard with a large pair of channel lock pliers.
  3. Raise the support assembly to the body of the vehicle.
    4. NOTE: Refer to Fastener Notice .
  4. Install the two bolts securing the front of the support assembly to the vehicle body.

    Tighten:  Tighten the bolts to 181 N.m (133 lb ft).

  5. Install the brackets to the body at the support assembly forward mounts.

    Tighten:  Tighten the bolts to 86 N.m (63 lb ft).

  6. Install the exhaust system. Refer to Exhaust System Replacement (RPO L26) or Exhaust System Replacement (RPO LD8) .
  7. Lower the vehicle.
