Door Control Module Schematics

WARNING: This page is about a different car, the 2007 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

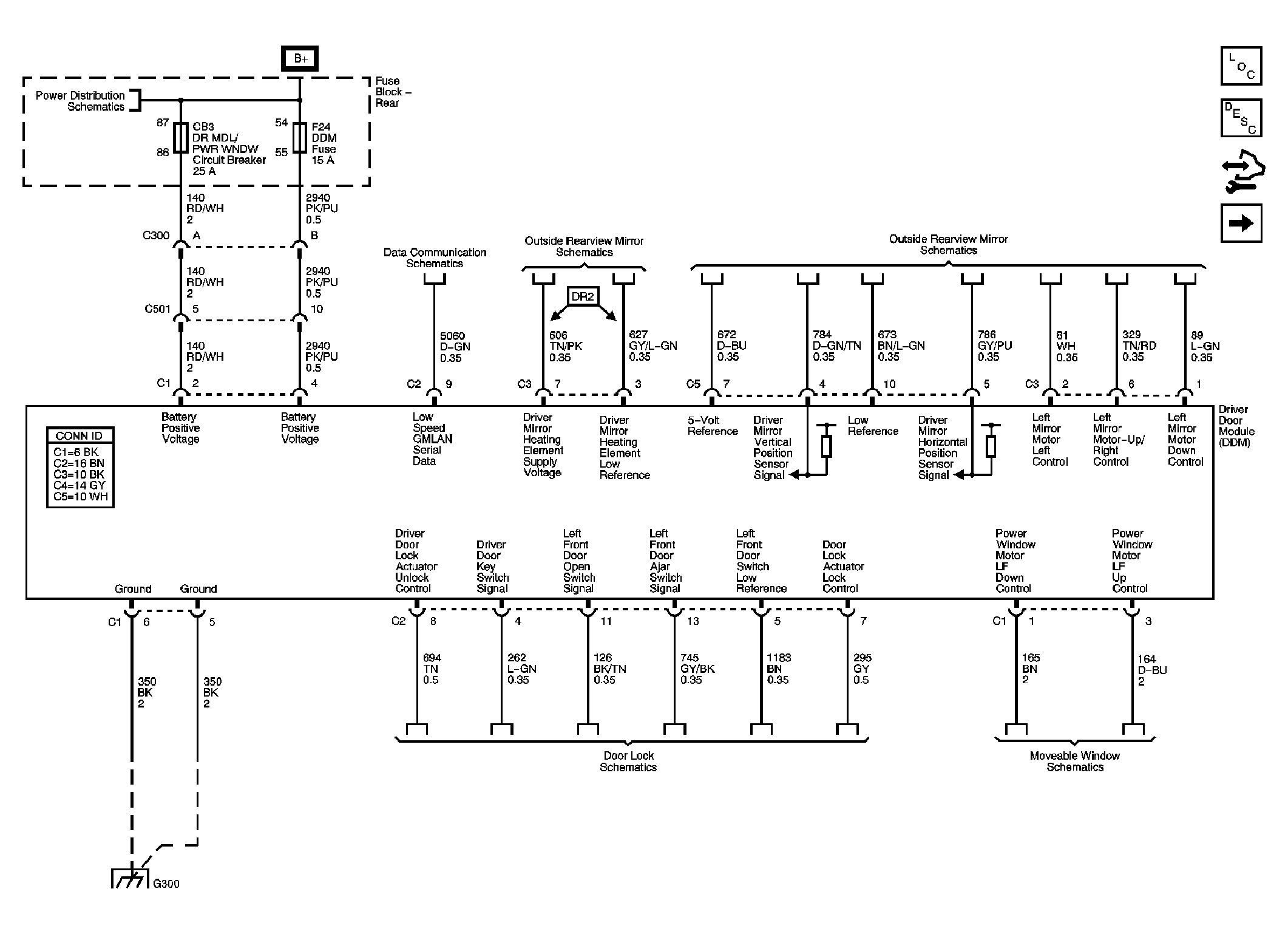

Fig 1: Driver Door Module (DDM)
GM1795483Courtesy of GENERAL MOTORS CORP.

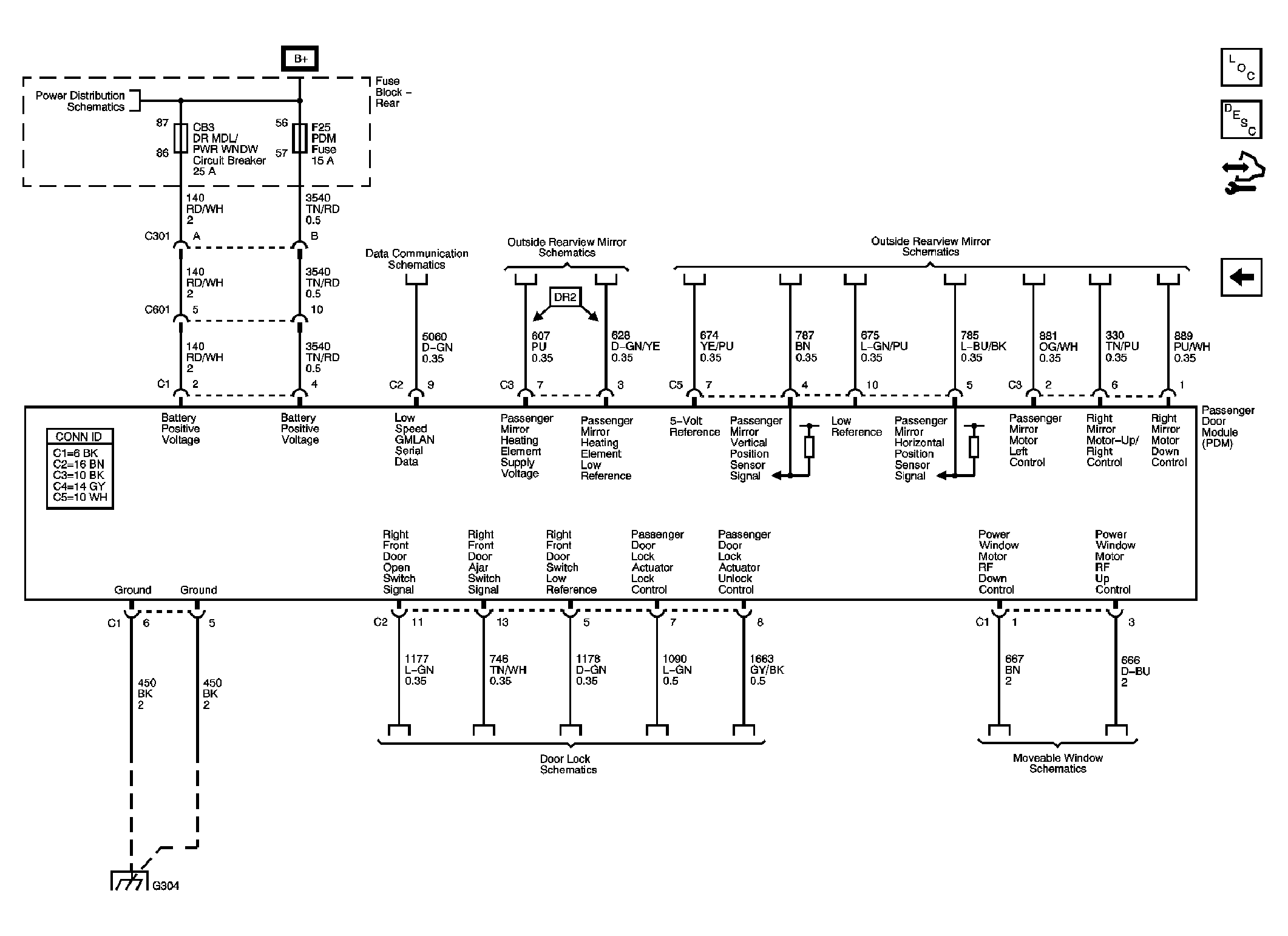

Fig 2: Front Passenger Door Module (FPDM)
GM1795487Courtesy of GENERAL MOTORS CORP.
