Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lower control arm spring insulators.
  2. Position the lower control arm to the support assembly.

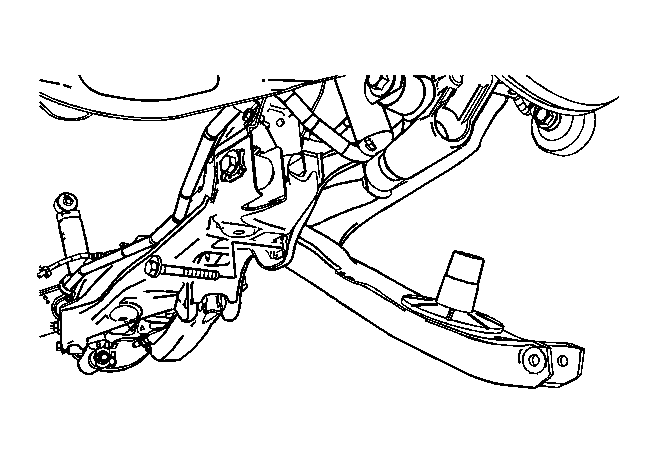

    Fig 1: Identifying Lower Control Arm Bolt And Nut
    GM1361415Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the lower control arm to support assembly bolt and nut.

    Tighten:  Tighten the nut and bolt to 110 N.m (81 lb ft).

  4. Install the rear spring. Refer to Coil Spring Replacement .
  5. Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
  7. Check the rear alignment. Refer to Measuring Wheel Alignment .
