Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

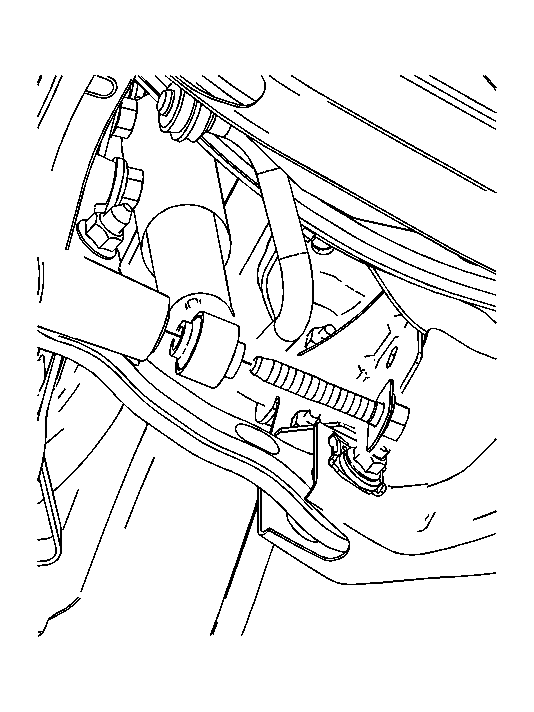

Fig 1: Identifying Trailing Arm Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the trailing arm to knuckle bolts.
Tighten: Tighten the bolts to 180 N.m (133 lb ft).

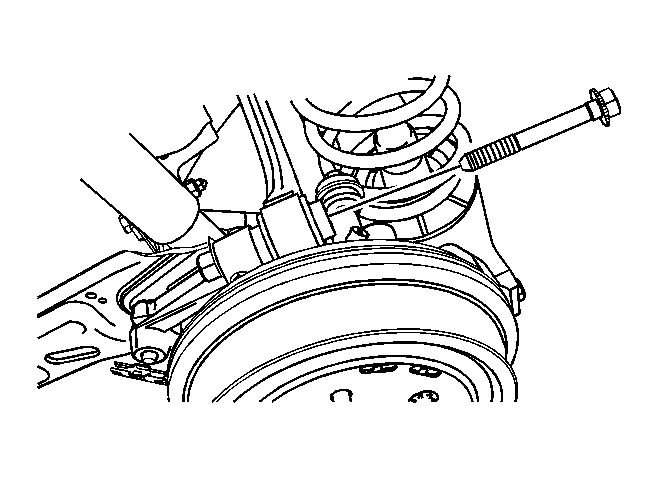

Fig 2: Identifying Upper Control Arm Bolt And Nut

Courtesy of GENERAL MOTORS CORP.

Install the upper control arm to knuckle bolt and nut.
Tighten: Tighten the bolt and nut to 110 N.m (81 lb ft) plus 70 degrees.

Fig 3: Identifying Toe Link Bolts And Nuts

Courtesy of GENERAL MOTORS CORP.

Install the toe link. Refer to Toe Link Replacement .
Install the coil spring. Refer to Coil Spring Replacement .

Fig 4: Identifying Lower Shock Bolt

Courtesy of GENERAL MOTORS CORP.

Install the lower shock absorber to knuckle bolt.
Tighten: Tighten the bolt to 180 N.m (133 lb ft).

Fig 5: Identifying Stabilizer Link Bolts

Courtesy of GENERAL MOTORS CORP.

Install the stabilizer link to the knuckle.
Tighten: Tighten the bolt to 55 N.m (41 lb ft).
Install the rear wheel bearing and brake components. Refer to Wheel Bearing/Hub Replacement - Rear .
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
