Surge Tank Replacement
WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
Surge Tank Replacement

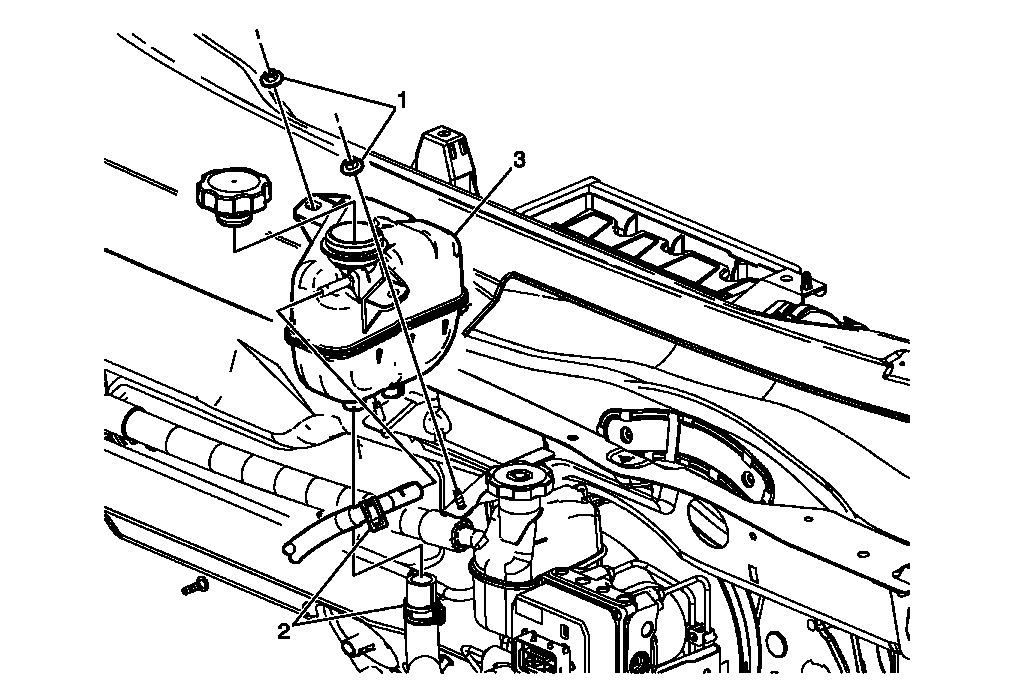

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Drain the cooling system. Refer to Draining and Filling Cooling System (LZ4, LZ9) or Draining and Filling Cooling System (GE 47716) or Draining and Filling Cooling System (L61) . |
|
| 1 | Radiator Surge Tank Assembly Nut (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 6 N.m (53 lb in) |
| 2 | Reposition Surge Tank Hose Clamp (Qty 2) using J 38185 . See Special Tools . |
| 3 | Radiator Surge Tank Assembly |
