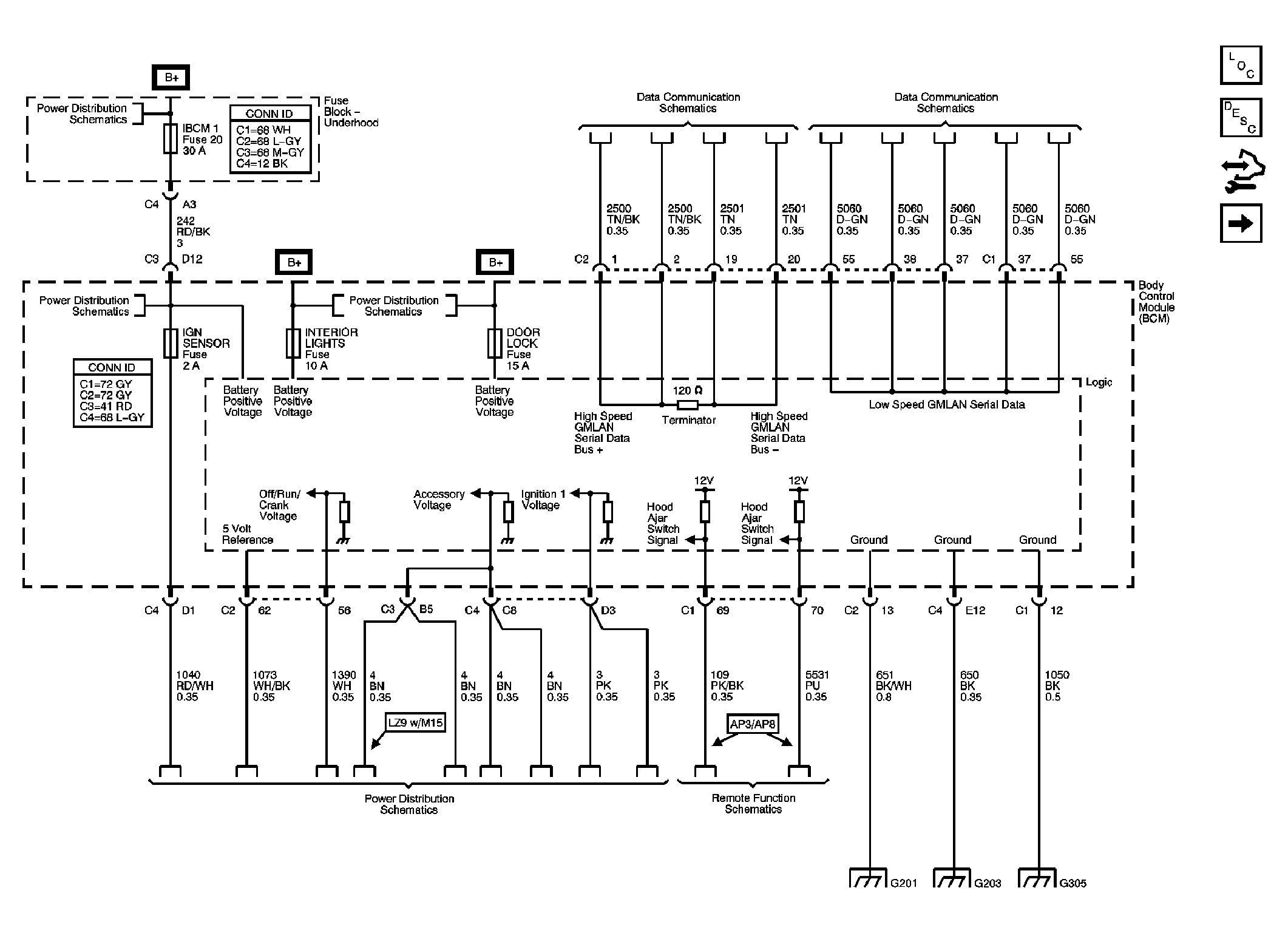

Fig 1: Power, Ground And Serial Data - Schematic
Courtesy of GENERAL MOTORS CORP.

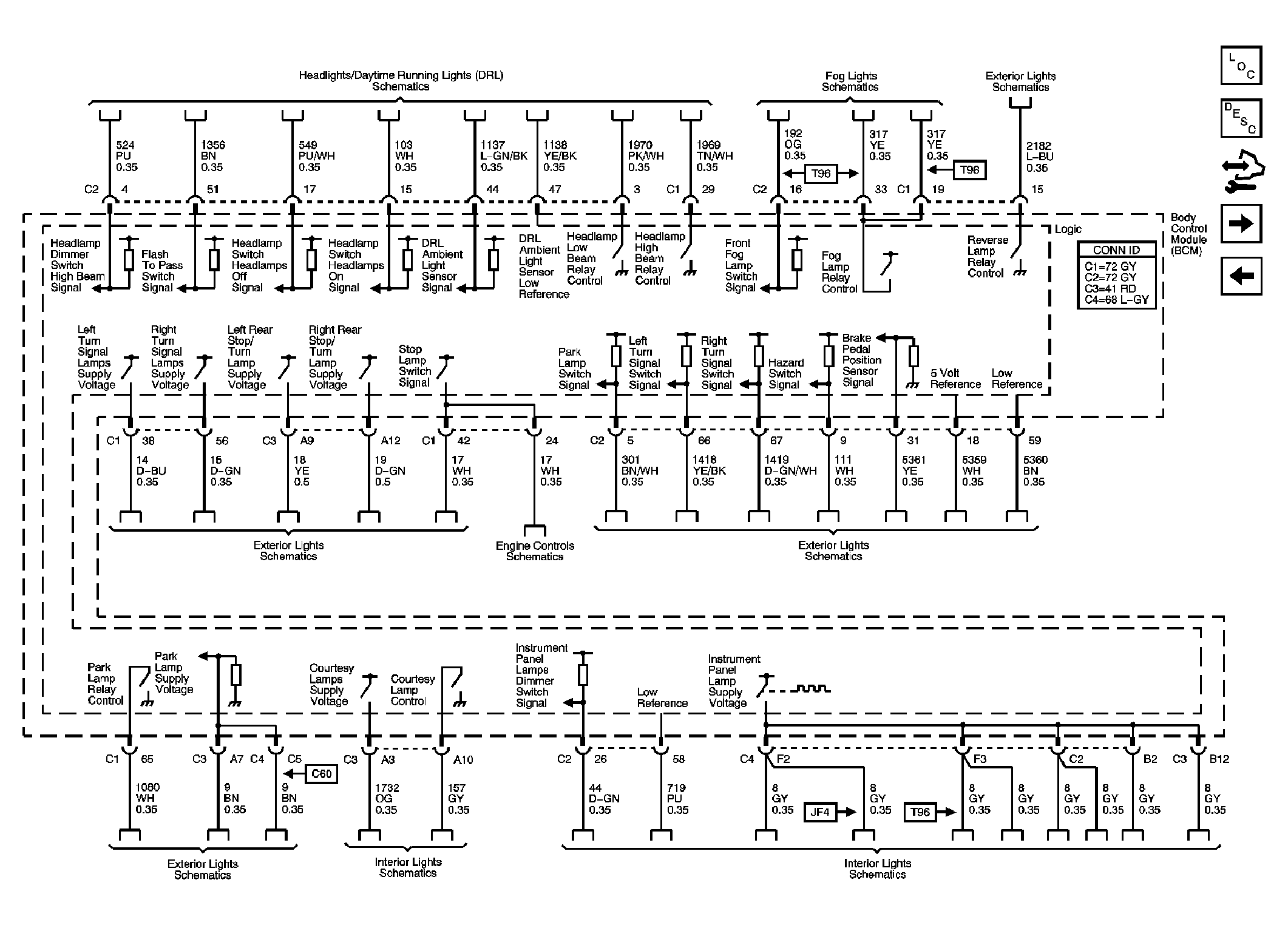

Fig 2: Controlled/Monitored Subsystem References 1 Of 4 - Schematic
Courtesy of GENERAL MOTORS CORP.

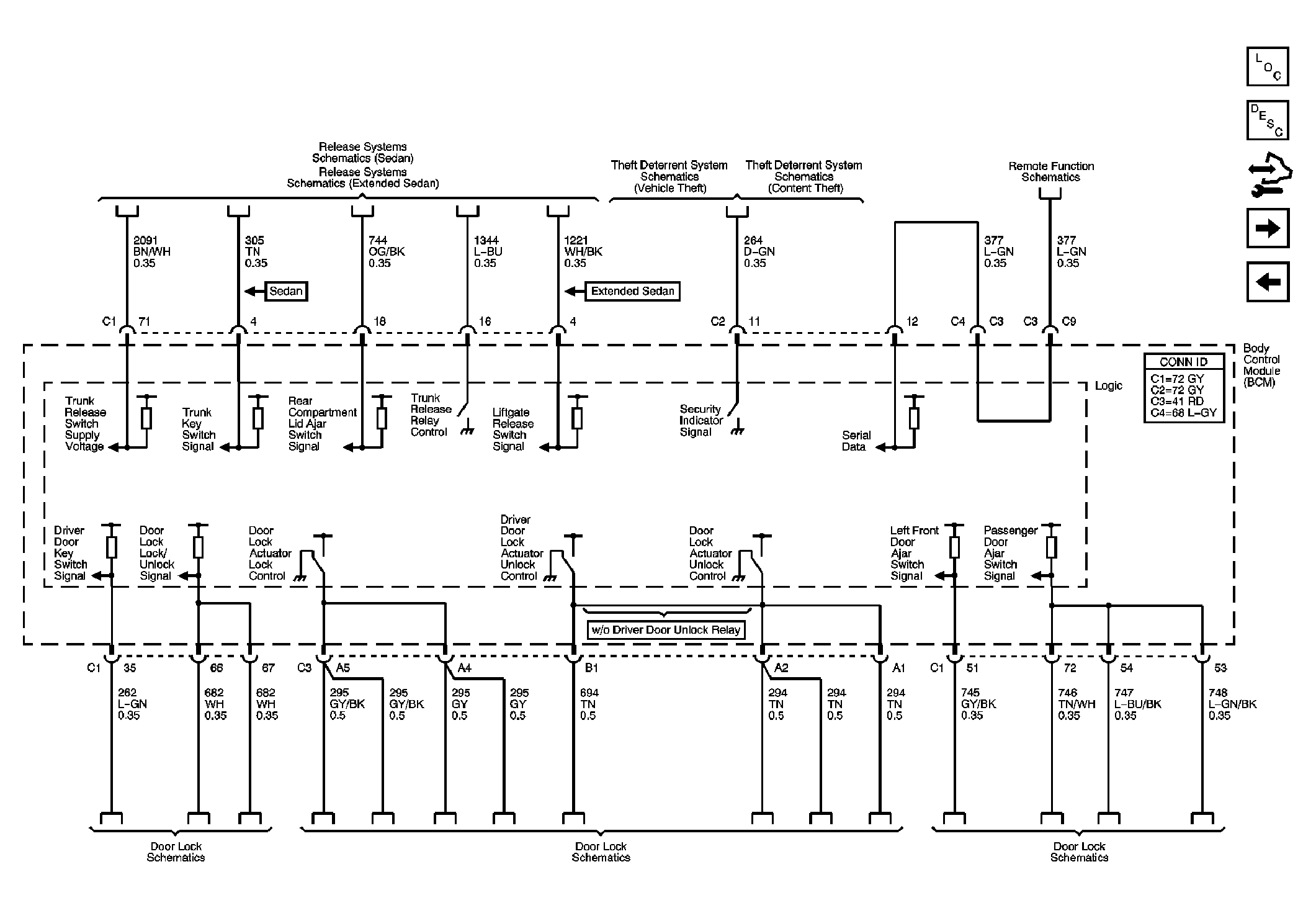

Fig 3: Controlled/Monitored Subsystem References 2 Of 4 - Schematic
Courtesy of GENERAL MOTORS CORP.

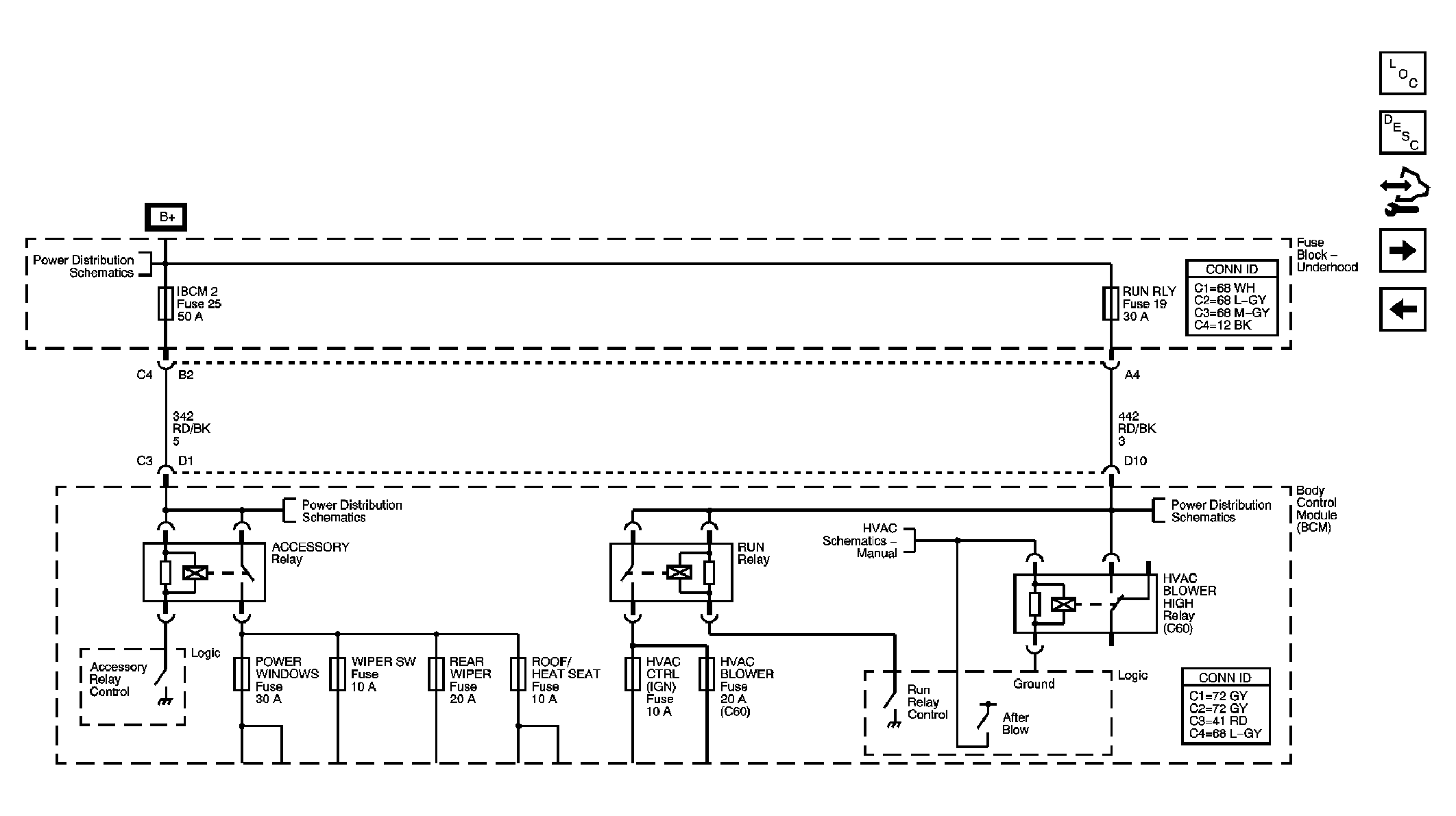

Fig 4: Controlled/Monitored Subsystem References 3 Of 4 - Schematic
Courtesy of GENERAL MOTORS CORP.

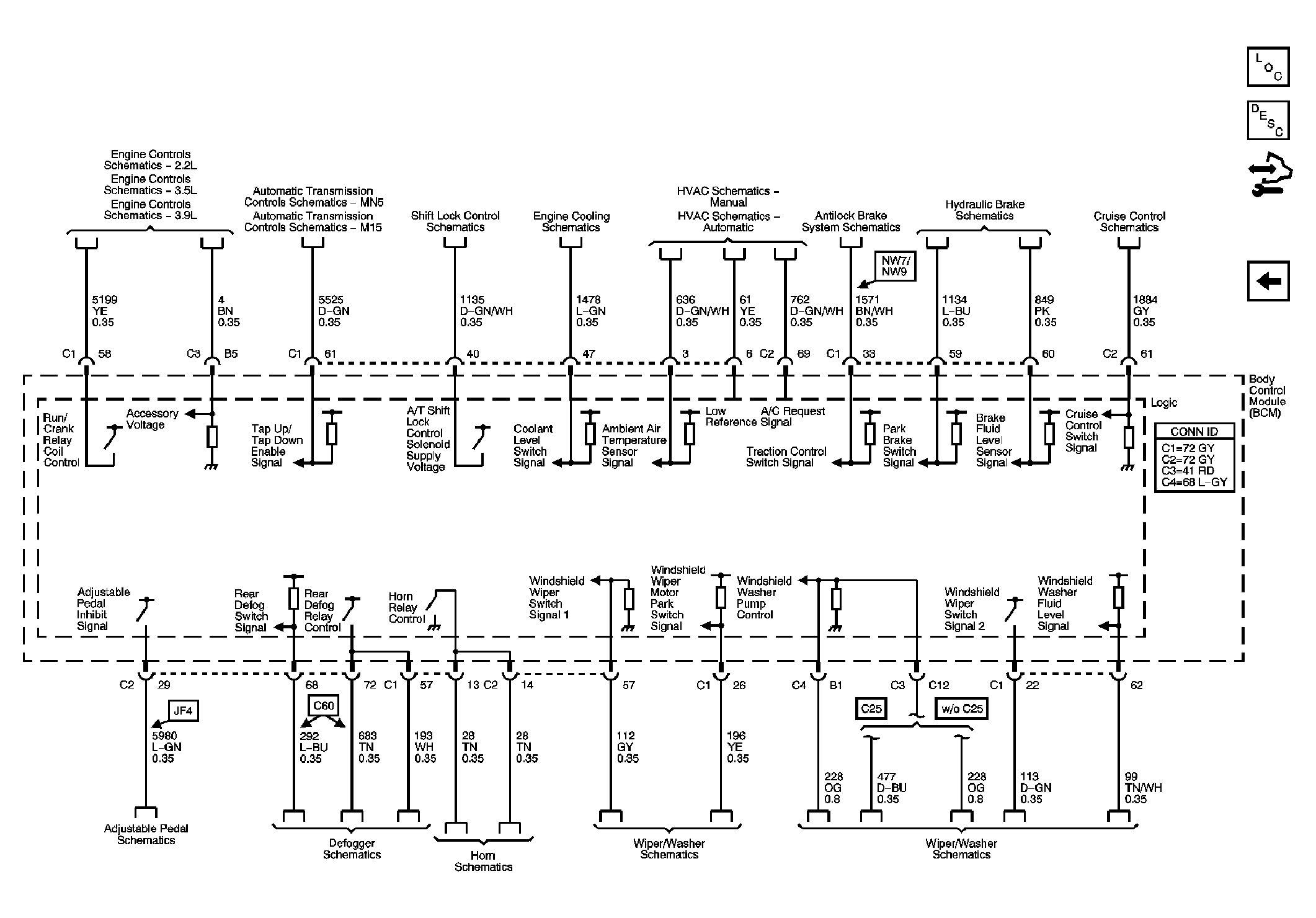

Fig 5: Controlled/Monitored Subsystem References 4 Of 4 - Schematic
