Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the DVD player wire harness connectors.

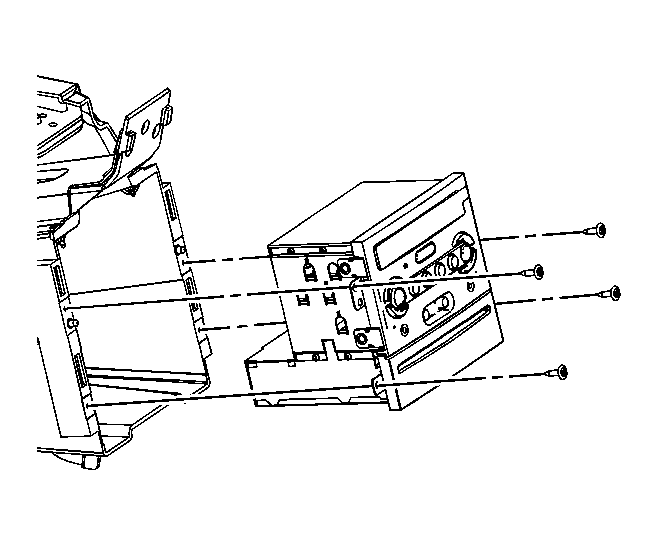

Fig 1: View Of DVD Player & Mounting Screws

Courtesy of GENERAL MOTORS CORP.

Install the DVD player.

NOTE: Refer to Fastener Notice .

Install the DVD screws.
Tighten: Tighten the screws to 1 N.m (10 lb in).
Install the console rear trim plate. Refer to Console Rear Trim Plate Replacement (U32) or Console Rear Trim Plate Replacement (UK6) .
