Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

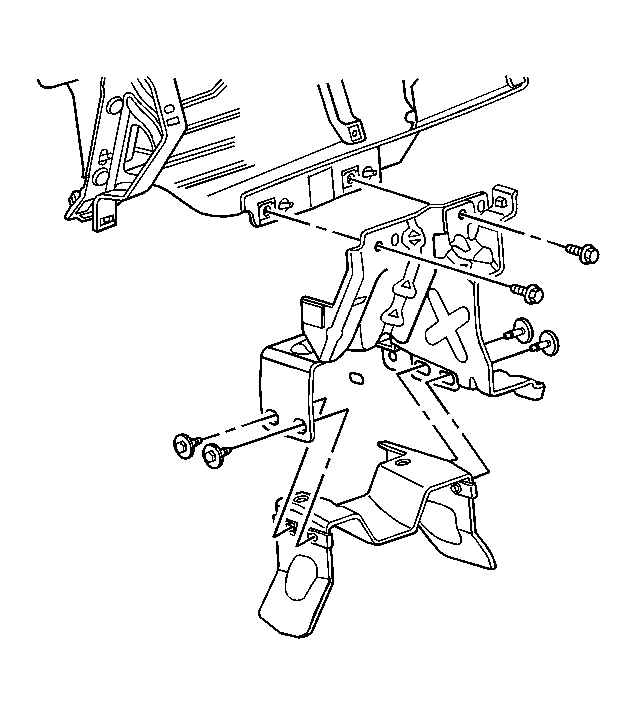

    Fig 1: View Of I/P Center Support Bracket Bolts
    GM1206841Courtesy of GENERAL MOTORS CORP.
  1. Install the I/P center support bracket.
    NOTE: Refer to Fastener Notice .
  2. Install the I/P center support bracket bolts.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  3. Install the body control module. Refer to Body Control Module Replacement .
  4. Install the center console. Refer to Console Replacement .
