Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console armrest.

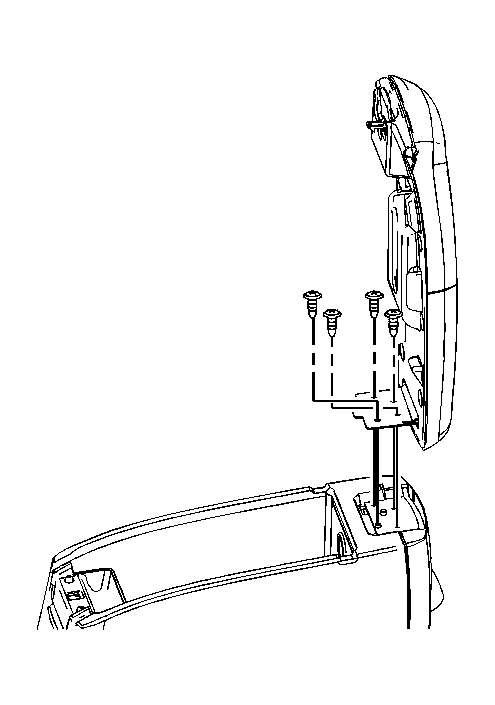

    Fig 1: View Of Console Armrest
    GM1207924Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Install the console armrest screws.

    Tighten:  Tighten the screws to 1 N.m (10 lb in).
