Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

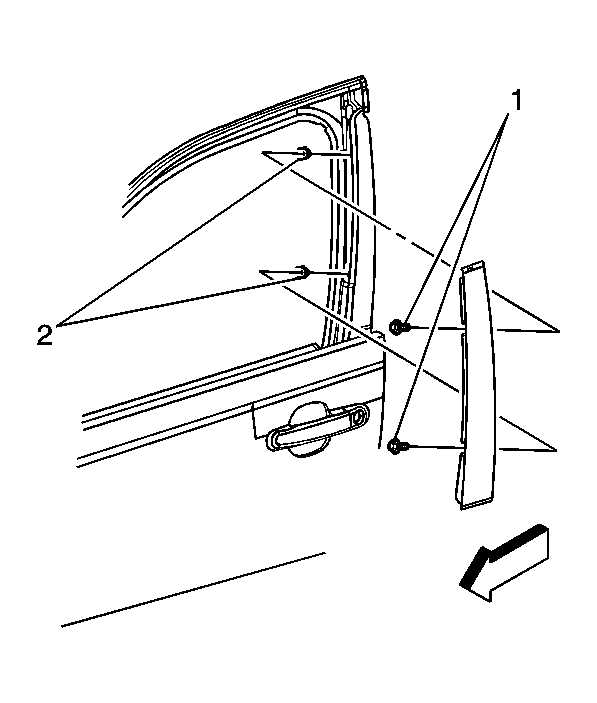

    Fig 1: Locating Screws
    GM1222141Courtesy of GENERAL MOTORS CORP.
  1. Install the new nylon anchors (2), if required.
  2. Install the frame applique to the front door.
    NOTE: Refer to Fastener Notice .
  3. Install the screws (1).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Install the outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
