Suspension Controls Component Views

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

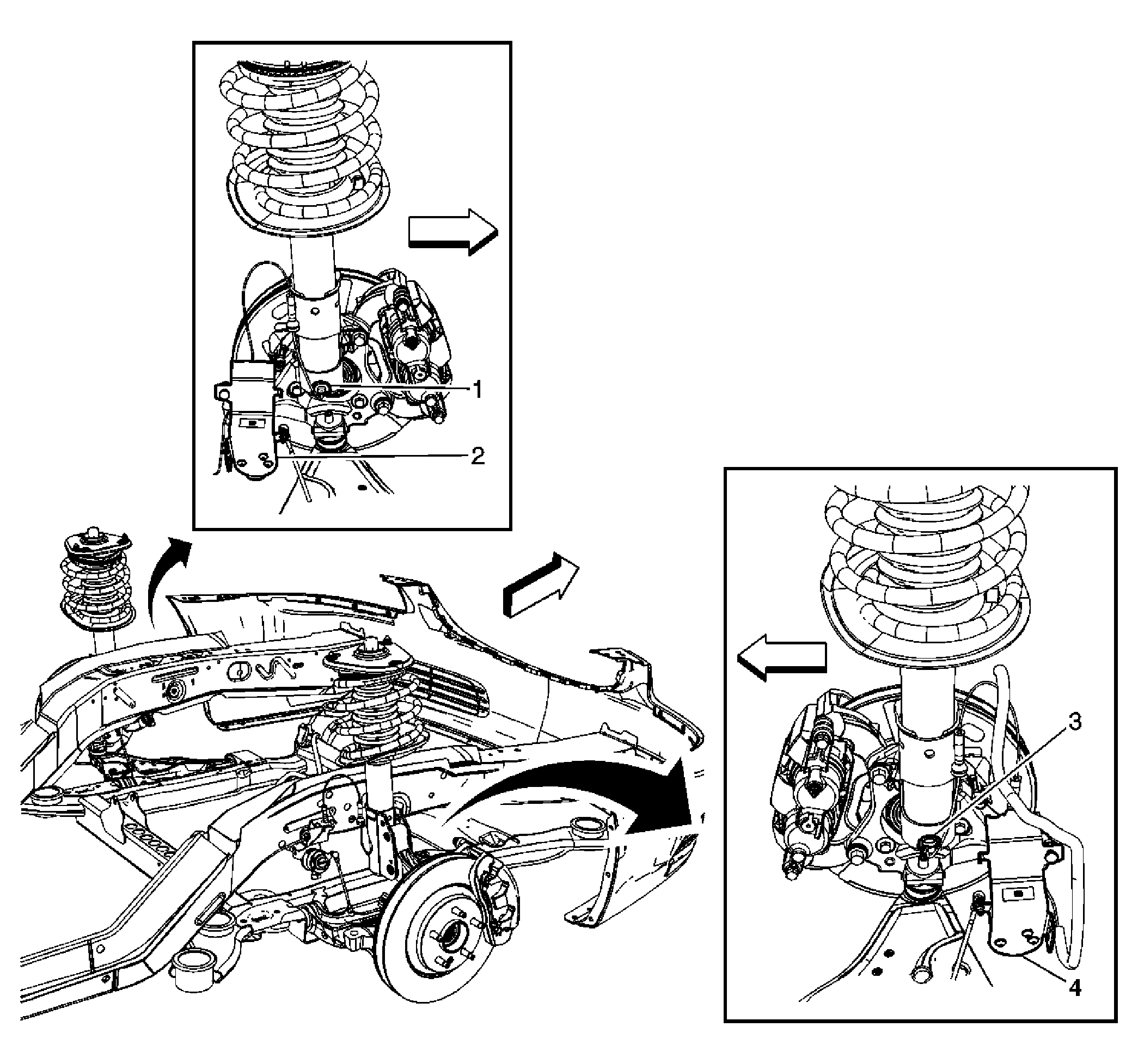

Fig 1: View Of Front Suspension Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Damper - LF (F55)
2	Suspension Position Sensor - LF (F55)
3	Suspension Damper - RF (F55)
4	Suspension Position Sensor - RF (F55)

Fig 2: View Of Rear Suspension Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - LR (F55)
2	Suspension Position Sensor - RR (F55)
3	Automatic Level Control (ALC) Compressor
4	Rear Bumper
5	Suspension Damper - RR (F55)
6	Suspension Damper - LR (F55)

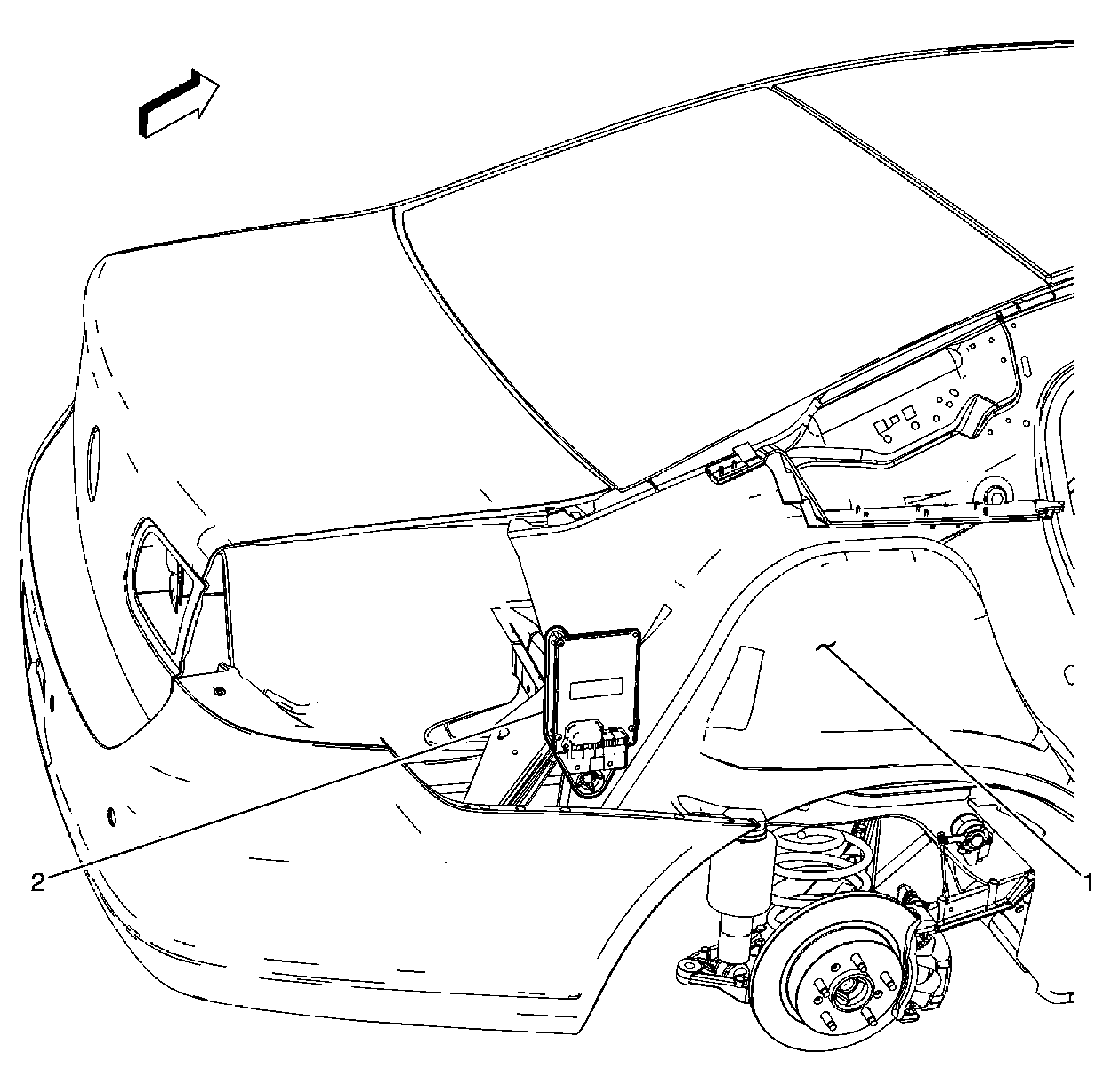

Fig 3: View Behind Right Rear Wheel Well Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Inner Panel-Right
2	Electronic Suspension Control (ESC) Module (F55)
