Removal Procedure

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

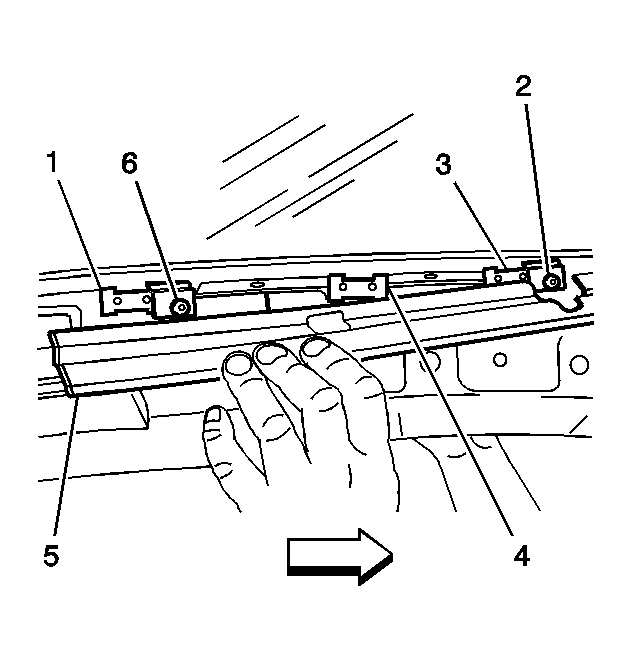

    Fig 1: Identifying Sunroof Panel Side Opening Closeout Panel Cover
    GM786921Courtesy of GENERAL MOTORS CORP.
    NOTE: In order to prevent damage to the paint, mask the roof panel in front of the sunroof opening using masking tape and paper.
  1. Cycle the sunroof window to the vent position.
  2. Slide the sunshade rearward.
  3. Disconnect the sunroof panel side opening closeout covers (5) from the sunroof window clips (1,3,4) in order to access the window screws (2,6).
  4. Tape the sunroof panel side opening closeout covers in a downward position.
    5. Fig 2: Identifying Sunroof, Housing And Adjusting Screws
    GM468350Courtesy of GENERAL MOTORS CORP.
  5. Remove the sunroof window screws (1) on both sides.
    6. IMPORTANT: Be careful not to scratch the roof surface or the sunroof window.
  6. Lift the sunroof window (3) from the sunroof opening.
