Brake Pedal Assembly Replacement

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

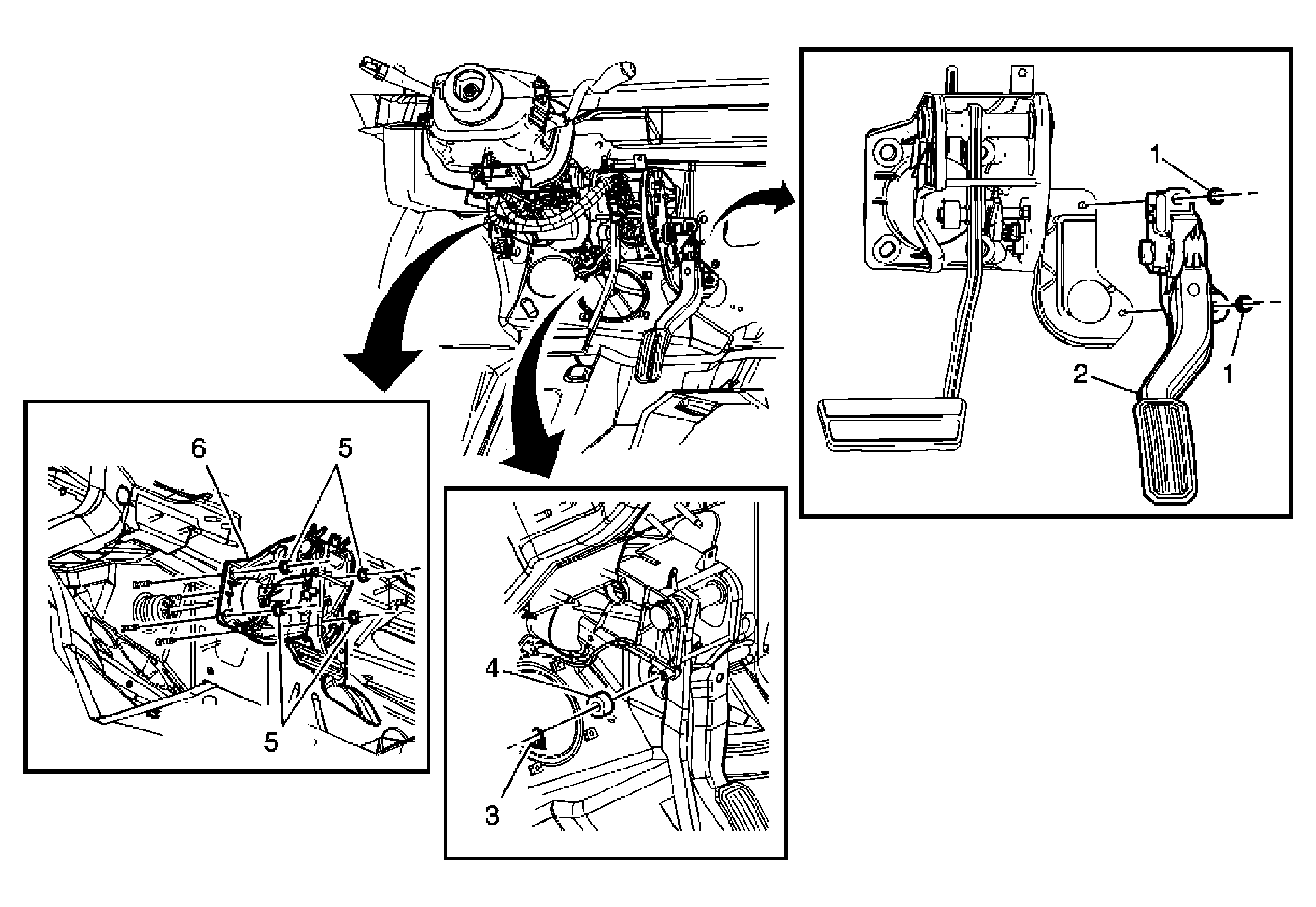

Fig 1: Replacing Brake Pedal Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the knee bolster panel. Refer to Driver Knee Bolster Replacement . Disconnect the electrical connector from the brake pedal position sensor.
1	Nut (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Accelerator Pedal Tip: Release the wiring harness retainer from the brake pedal bracket. Relocate accelerator pedal to the side.
3	Clip
4	Spacer Tip: Apply silicone brake lubricant to the brake pedal pushrod pivot pin.
5	Nut (Qty: 4) Tip: Lower the steering column. Refer to Steering Column Replacement . You DO NOT have to remove the steering column from the vehicle. Lower the steering column to gain access to the mounting bolts for the brake pedal mounting bracket. Tighten: 30 N.m (22 lb ft)
6	Brake Pedal Tip: Re-calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
