Body Rear End Component Views

WARNING: This page is about a different car, the 2006 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying I/P Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Release Switch
2	I/P Compartment Lamp

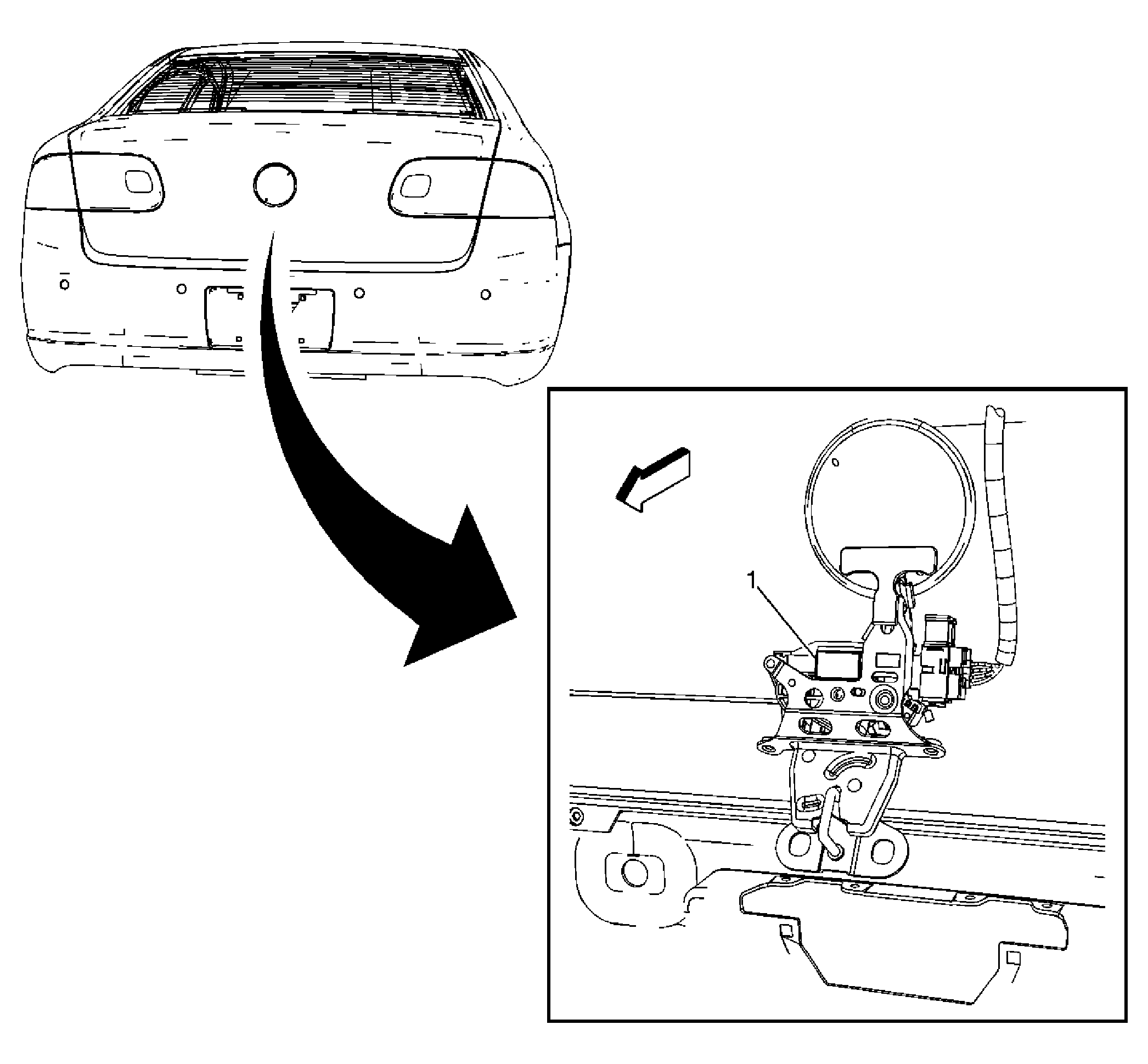

Fig 2: Identifying Center of Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch
