Interior Lights Schematics

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

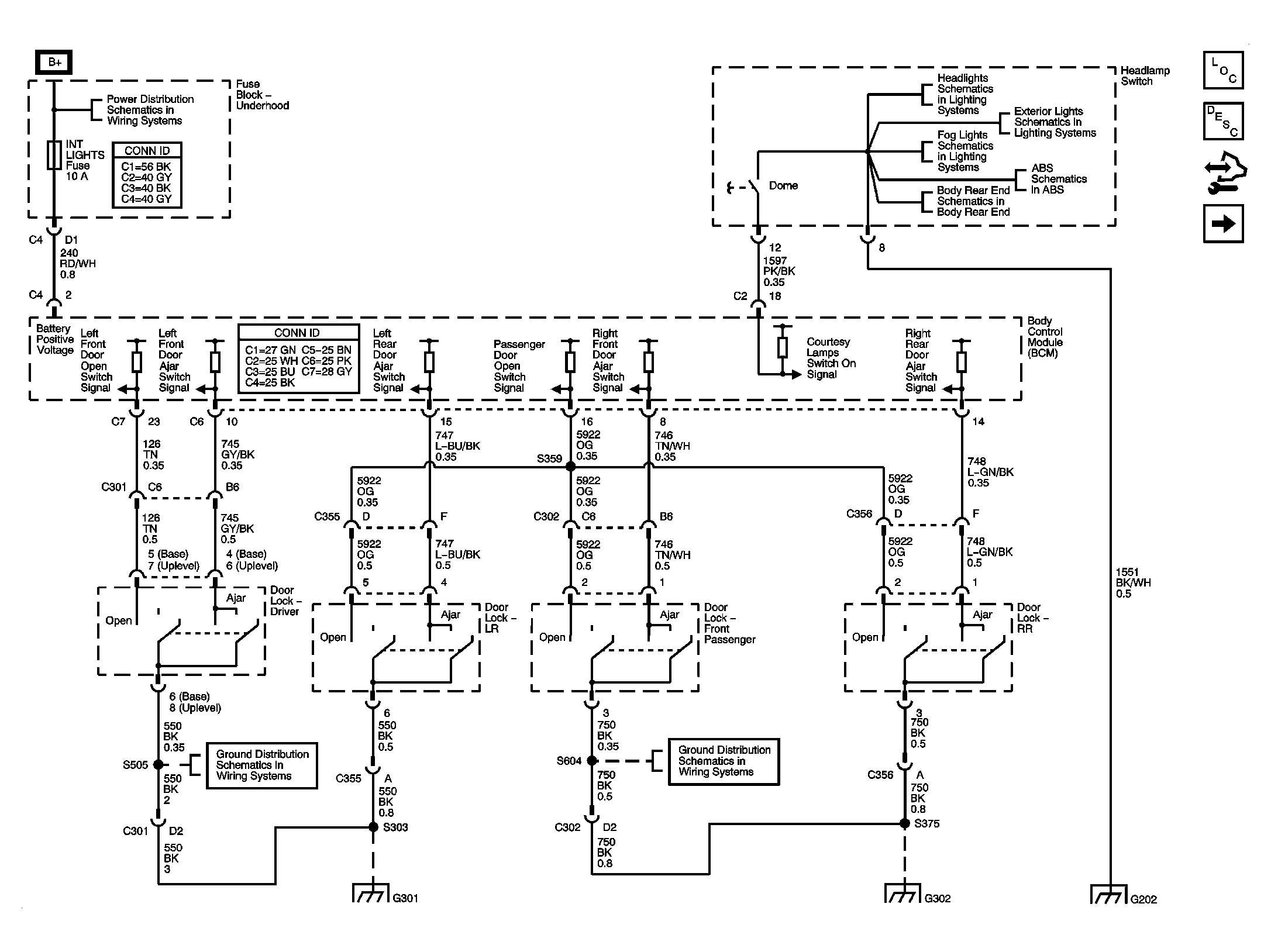

Fig 1: Switches (Sedan) - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

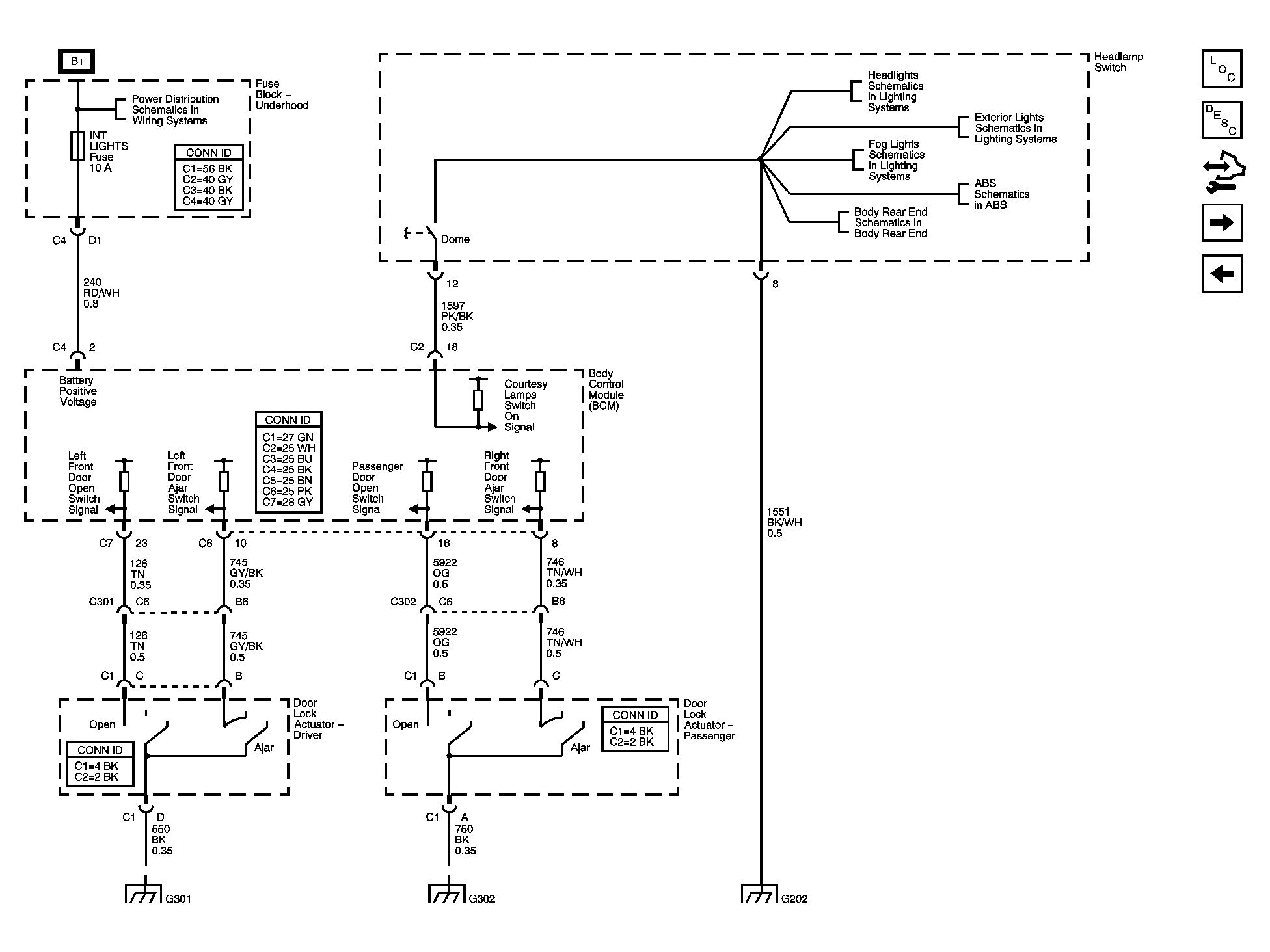

Fig 2: Switches (Coupe) - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

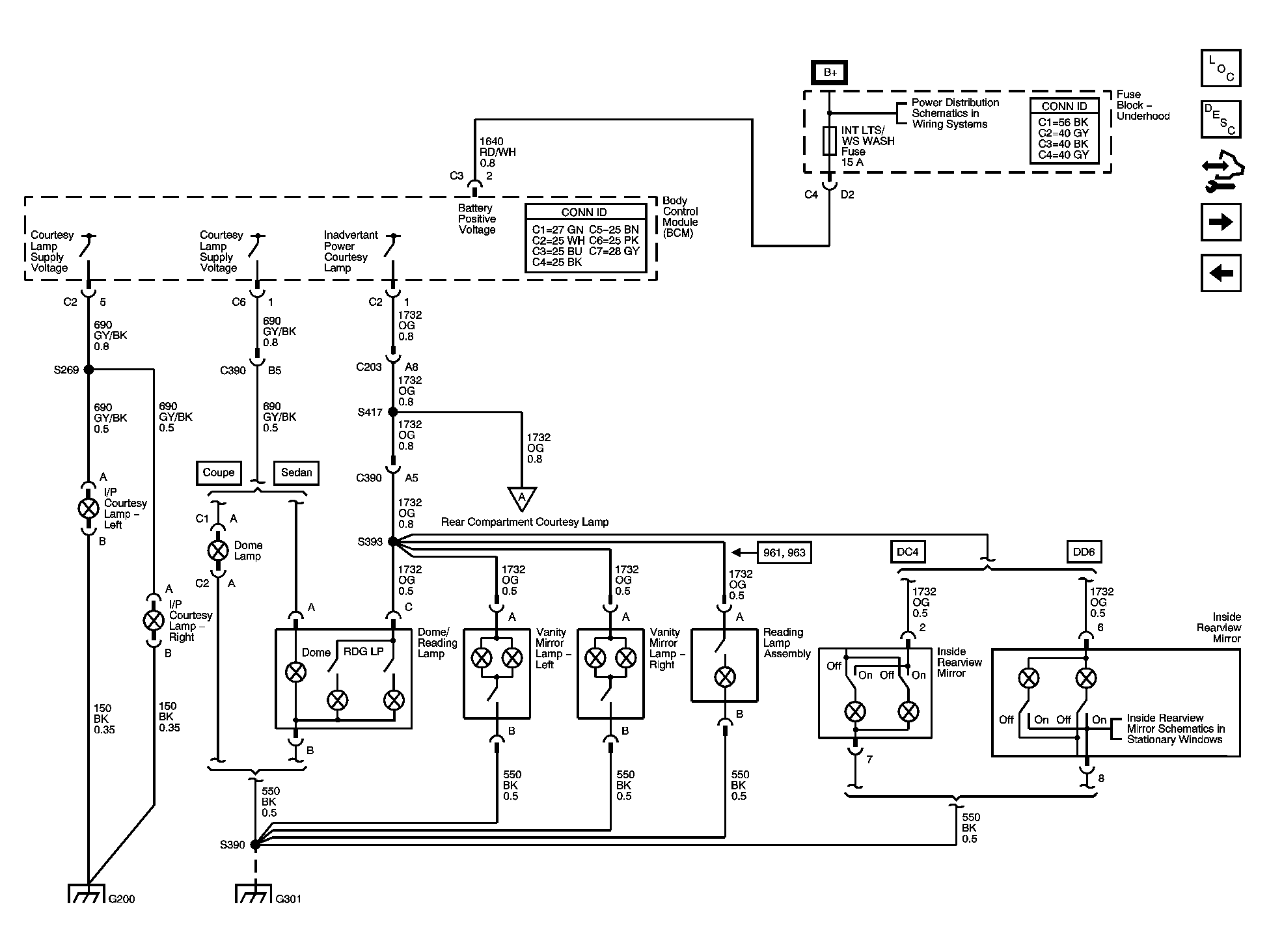

Fig 3: Interior Lights - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 4: Rear Compartment Lights - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
