Headlamp Replacement (Monte Carlo)

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

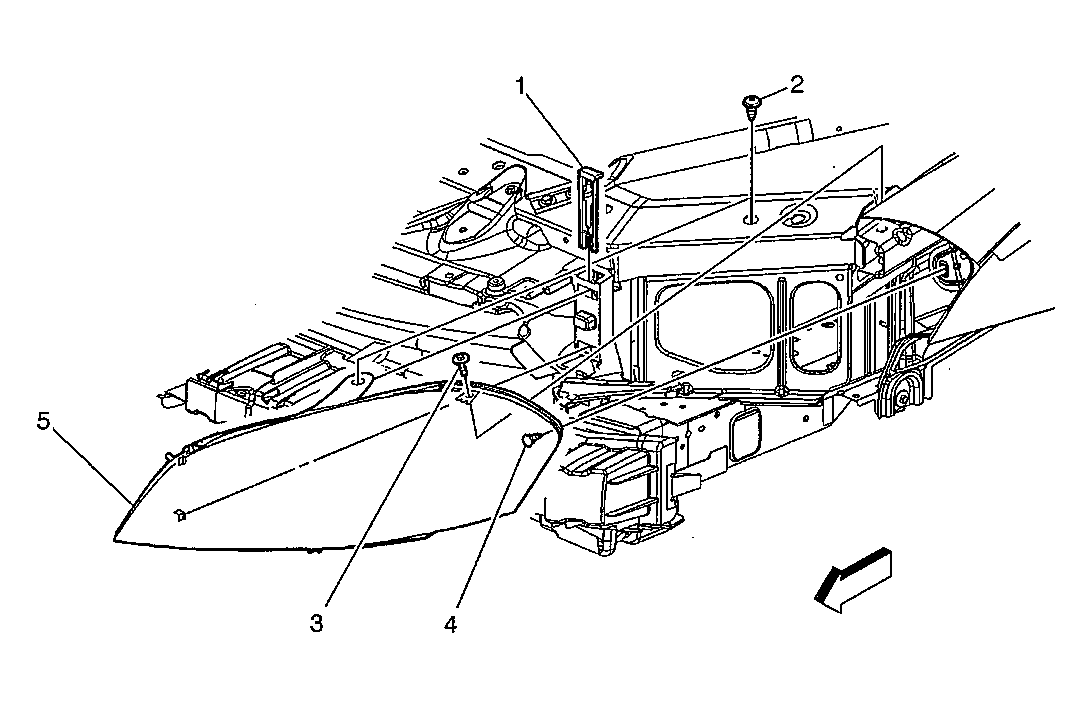

Fig 1: Replacing Headlamp

Courtesy of GENERAL MOTORS CORP.

Headlamp Replacement (Impala)

Callout	Component Name
1	Headlamp Retainer Tip Lift upward on the retainer in order to release the headlamp from the radiator support.
2	Headlamp Screw Refer to Fastener Notice . Tighten Tighten the screw to 2 N.m (18 lb in)
3	Headlamp Retainer Screw Tighten Tighten the screw to 2 N.m (18 lb in)
4	Front Fender Upper Outer Rail Locator
5	Headlamp Assembly Procedure: Pull the inside edge of the headlamp outward. Pull and release the outer edge of the headlamp by grasping the outer edge and giving the headlamp a quick jerk. Disconnect the forward lamp harness from the headlamp electrical connector. Remove the headlamp from the vehicle.
