I/P Courtesy Lamp - Right

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

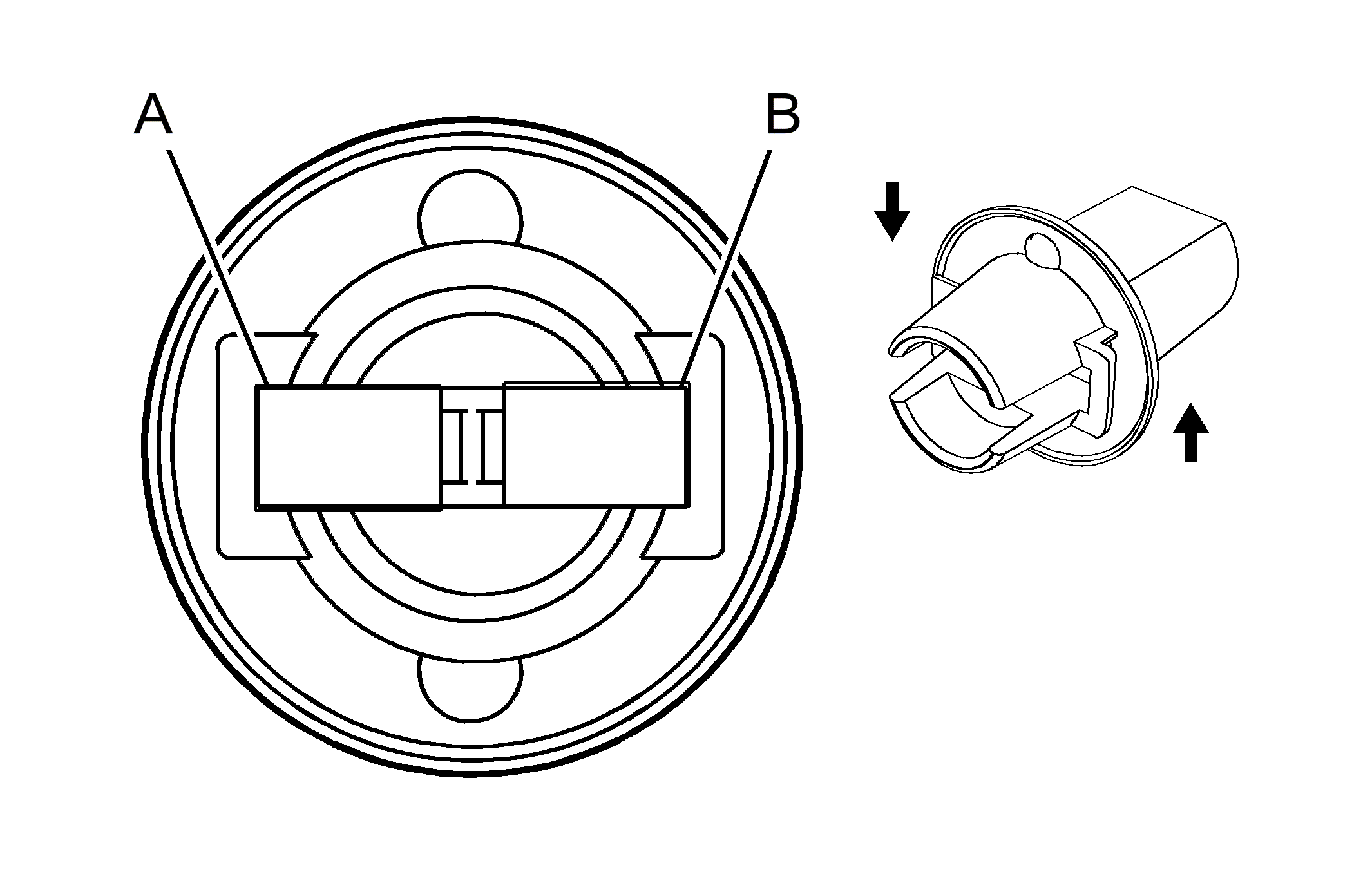

Fig 1: Connector End Views
GM365949Courtesy of GENERAL MOTORS CORP.
Lighting Systems Connector End Views

Connector Part Information
  • OEM: 12084388
  • Service: See Catalog
  • Description: 2-Way F Lamp Socket Hardshell W2 (BK)
Terminal Part Information
  • Terminal/Tray: Not Serviced in Kit
  • Core/Insulation Crimp: Not Serviced in Kit
  • Release Tool/Test Probe: Not Serviced in Kit
I/P Courtesy Lamp - Right

Pin Wire Color Circuit No. Function
A GY/BK 690 Courtesy Lamp Low Control
B BK 150 Ground
