Headlamp - Low Beam - Left

WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

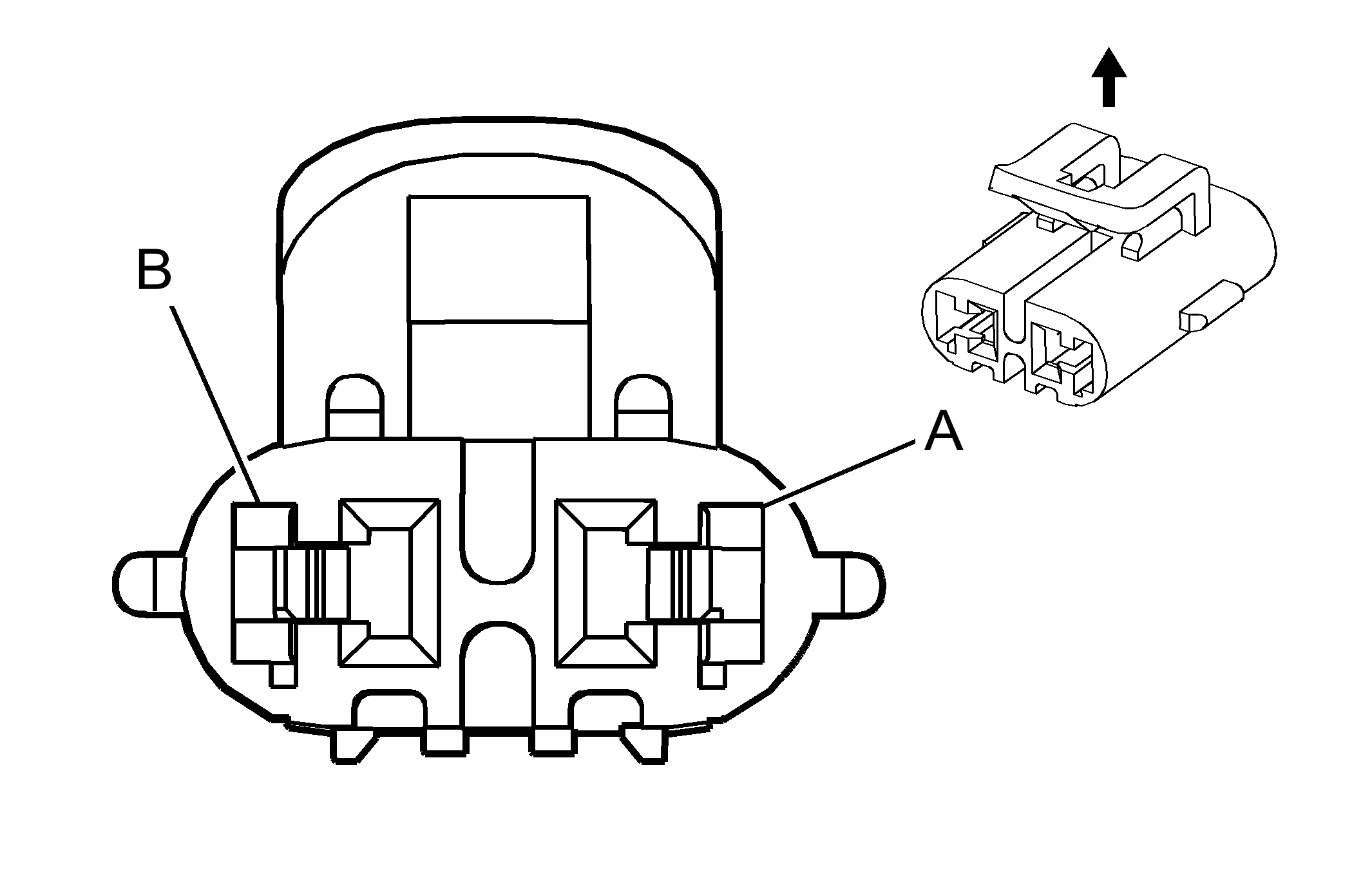

Fig 1: Connector End Views
GM1717008Courtesy of GENERAL MOTORS CORP.
Lighting Systems Connector End Views

Connector Part Information
  • OEM: H11
  • Service: See Catalog
  • Description: 2-Way F (WH)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Headlamp - Low Beam - Left

Pin Wire Color Circuit No. Function
A GN 712 Left Headlamp Low Beam Supply Voltage
B BK 1350 Ground
