Inflatable Restraint Sensing and Diagnostic Module Replacement

WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

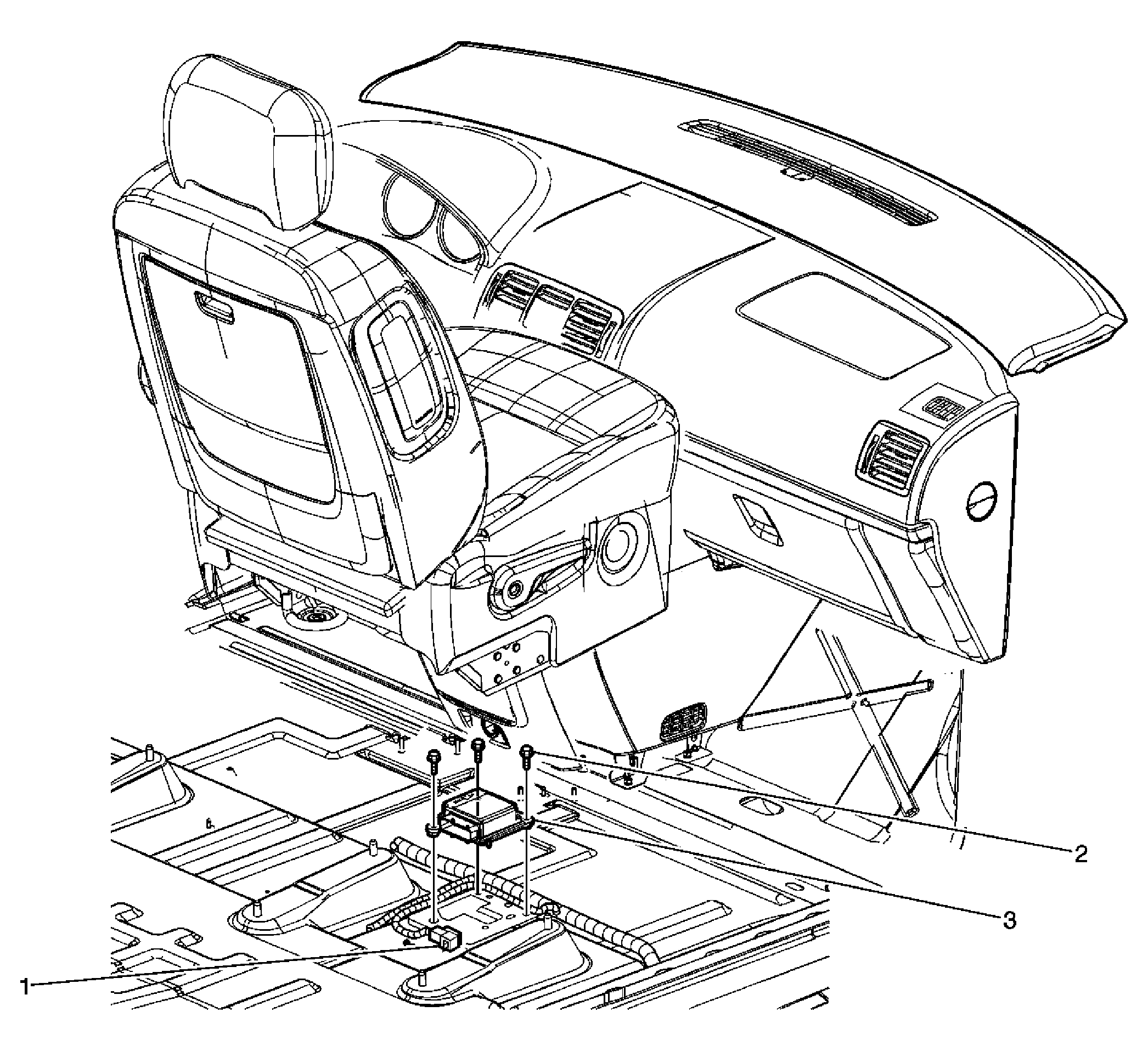

Fig 1: Locating Inflatable Restraint Sensing & Diagnostic Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Do not strike or jolt the inflatable restraint sensing and diagnostic module (SDM). Before applying power to the SDM, make sure that it is securely fastened with the arrow facing toward the front of the vehicle. Failure to observe the correct installation procedure could cause SIR deployment, personal injury or unnecessary SIR system repairs. NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling Zone 9 . Remove the passenger front seat. Refer to Seat Replacement - Front Bucket in Seats. Remove the passenger front carpet retainer. Roll back the carpet. Remove the right side cowl trim panel. Refer to Trim Panel Replacement - Cowl Side in Interior Trim. Remove the right side insulator panel. Refer to Knee Bolster, Insulator, Molding Replacement - Instrument Panel in Instrument Panel, Gages and Console.
1	Connector, Inflatable Restraint Sensing and Diagnostic Module Electrical Tip: Remove the connector position assurance (CPA).
2	Bolts, Inflatable Restraint Sensing and Diagnostic Module (Qty: 3) Tighten: 10 N.m (89 lb in)
3	Module, Inflatable Restraint Sensing and Diagnostic Tip: The AIR BAG indicator may remain ON after the sensing and diagnostic module (SDM) had been replaced. DTC B1001 may set, requiring the SDM part number to be set in multiple modules. If the indicator remains ON after enabling the SIR system, perform the diagnostic system check and follow the steps thoroughly to ensure that the SDM is set properly. Reprogram the body control module (BCM). Refer to Body Control Module Programming and Setup in Programming and Setup.
