Engine Compartment Components
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

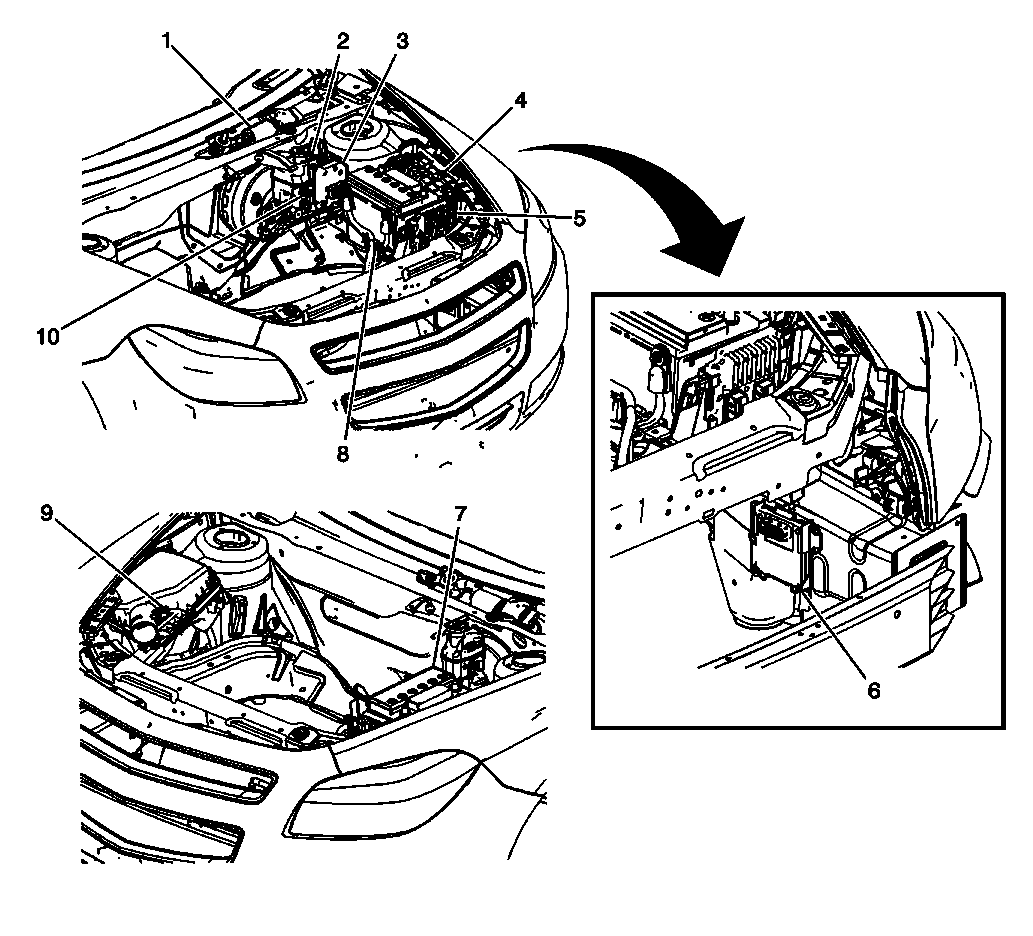

Engine Compartment Components
| Component Name |
Callout |
| Windshield Wiper Motor |
1 |
| Electronic Brake Control Module (EBCM) |
2 |
| Fuse Block - Underhood |
3 |
| Engine Control Module (ECM) |
4 |
| Battery |
5 |
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
6 |
| Battery Current Sensor |
7 |
| Brake Fluid Level Switch |
8 |
Courtesy of GENERAL MOTORS COMPANY
