Installation Procedure
WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

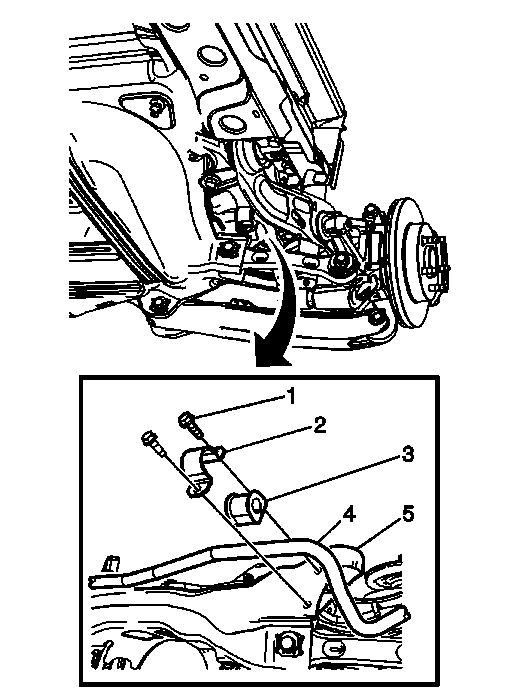

- Install the insulators (3), the clamps (2), on the stabilizer shaft (4).
- Install the stabilizer shaft (4) on the support (5).
- Install the clamp bolts (1) and tighten to 35 N.m (26 lb ft).
- Install the stabilizer shaft to knuckle bolts and tighten the bolts to 55 N.m (41 lb ft).
- Raise the rear support back into position.

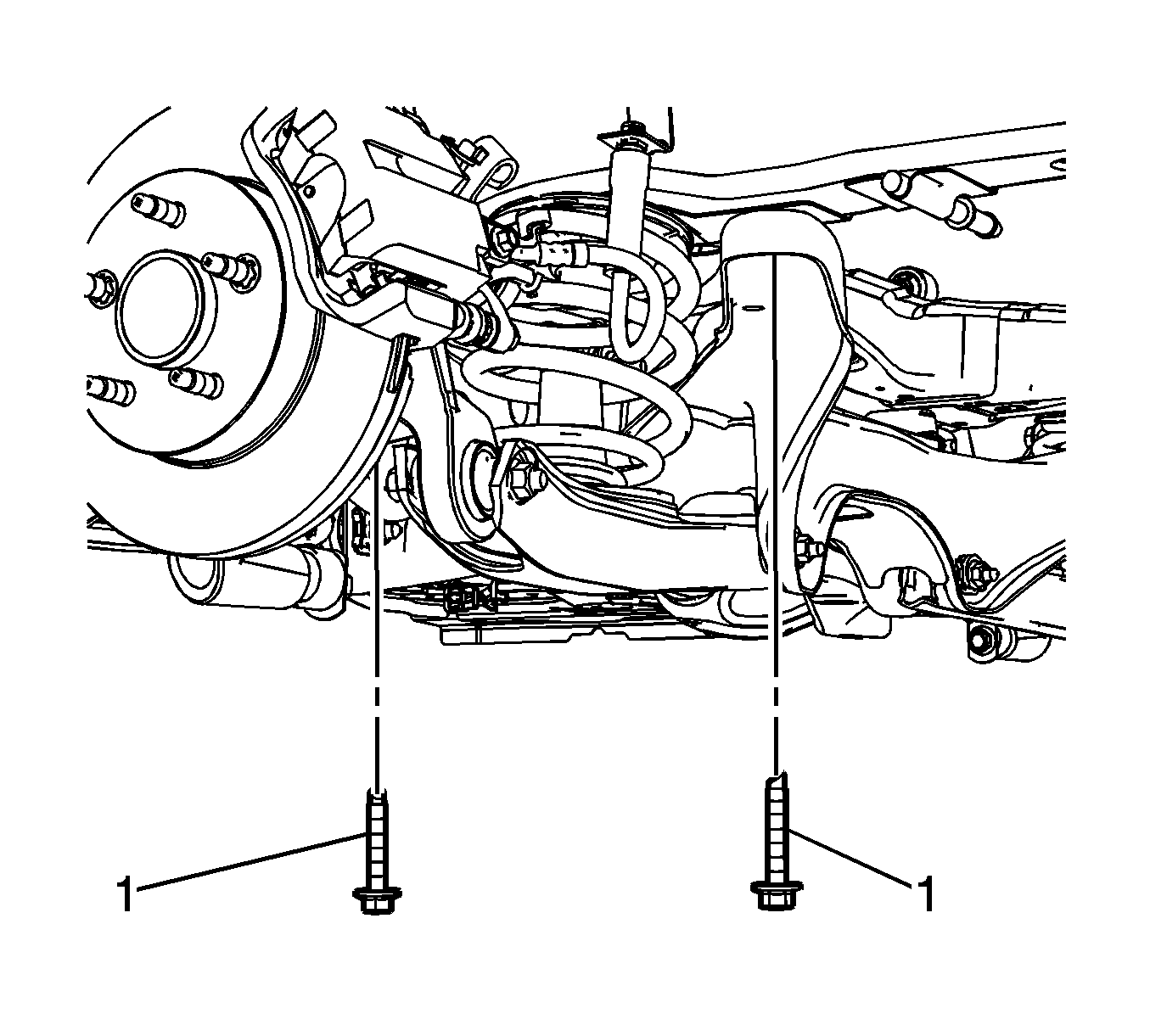

- Install the rear support bolts (1). Refer to Support Replacement .
- Install the upper shock absorber mounting bolts. Refer to Shock Absorber Replacement
- Install the trailing arm bracket bolts. Refer to Rear Axle Control Trailing Arm and Rear Suspension Control Arm Bracket Replacement .
- Install the rear coil springs. Refer to Rear Spring Insulator Replacement .
- Remove the adjustable jack stands from the rear support.
- Install the rear brake calipers on the knuckles. Refer to Rear Brake Caliper Bracket Replacement .
- Install the park brake cables on the trailing arms. Refer to Parking Brake Rear Cable Replacement .
- Install the rear muffler assembly. Refer to Exhaust Muffler Replacement (LE5 or LE9 With MH8) , Exhaust Muffler Replacement (LY7) .
- Install the tire and wheel assemblies. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
CAUTION:
Refer to Component Fastener Tightening Caution .
NOTE:
When lifting the rear support back into position, guide the rear shock absorbers into the proper mounting position.
