Installation Procedure

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

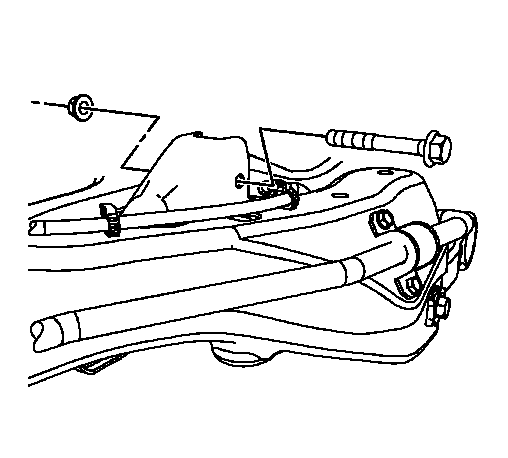

    Fig 1: Identifying Upper Control Arm To Support Assembly Bolt & Nut
    GM1835736Courtesy of GENERAL MOTORS COMPANY
  1. Install the upper control arm in the support.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the upper control arm nut and bolt. Tighten the upper control arm to support assembly nut to 60 N.m (44 lb ft).
    3. Fig 2: Identifying Upper Control Arm To Knuckle Bolt & Nut
    GM1835765Courtesy of GENERAL MOTORS COMPANY
  3. Install the upper control arm nut and bolt in the knuckle. Tighten the upper control arm to knuckle nut to 110 N.m (81 lb ft). Using the J 45059  angle meter, rotate an additional 70 degrees.
    4. Fig 3: Identifying ABS Routing Harness Connectors
    GM1835586Courtesy of GENERAL MOTORS COMPANY
  4. Reposition the wheel speed sensor wiring harness retaining clips (1) on the upper control arm.
  5. Install the rear muffler. Refer to Exhaust Muffler Replacement (LE5 or LE9 With MH8) , Exhaust Muffler Replacement (LY7) .
  6. Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
