Installation Procedure

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

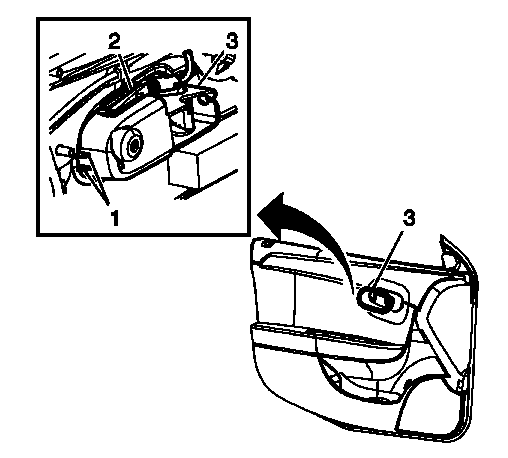

    Fig 1: Exploded View of Handle Bezel to Door Trim Panel
    GM2200898Courtesy of GENERAL MOTORS COMPANY
  1. Install new door inside handle bezel (3) to door trim panel by snapping into place till secure.
  2. Install light tube (2) to top of bezel.
  3. Connect electrical connector.
  4. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
