Horn Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

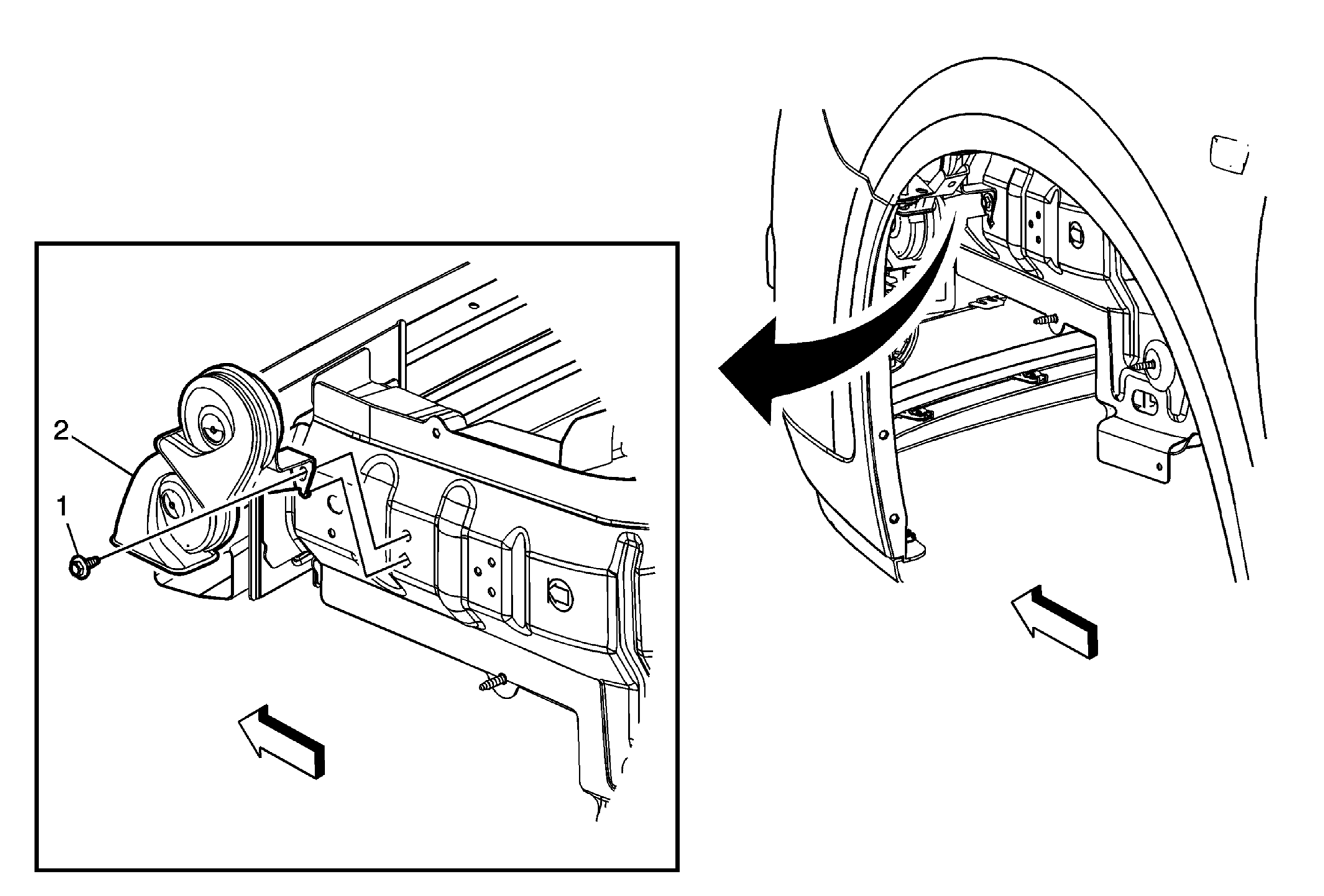

Fig 1: Locating Horn

Courtesy of GENERAL MOTORS COMPANY

Horn Replacement

Callout	Component Name
Preliminary Procedure Remove the front left wheelhouse panel splash shield. Refer to Front Wheelhouse Panel Splash Shield Replacement .
1	Horn Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Horn Procedure Disconnect the electrical connectors. Replace each horn as necessary.

Callout

Component Name

Preliminary Procedure
Remove the front left wheelhouse panel splash shield. Refer to Front Wheelhouse Panel Splash Shield Replacement .

Horn Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Horn

Procedure

Disconnect the electrical connectors.
Replace each horn as necessary.
