Fuel Pressure Relief: Procedure

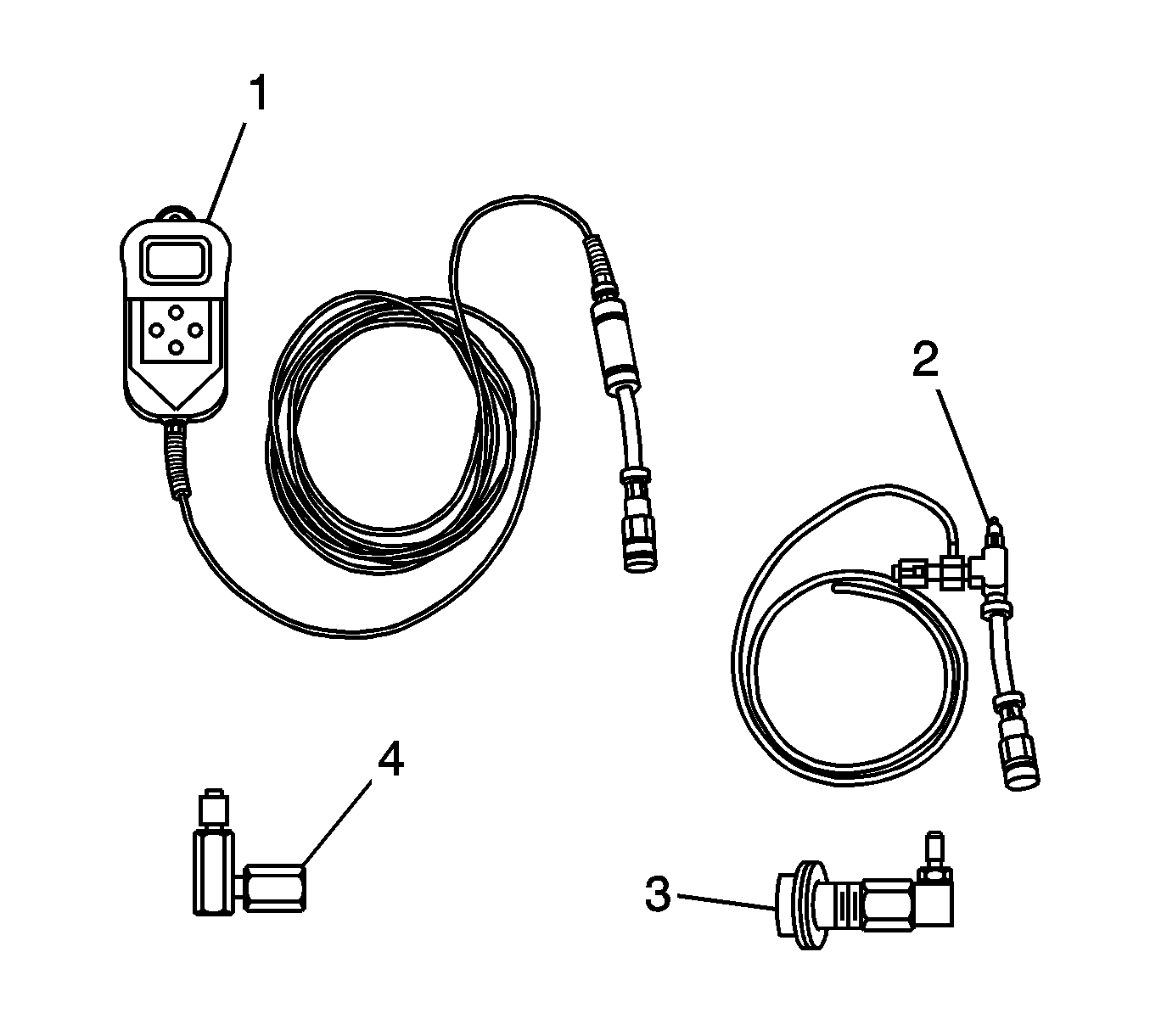

    Fig 1: View Of Digital Pressure Gauge, Special Tools & Components
    GM1828580Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (RPO LS4) .
  2. Loosen the fuel fill cap to relieve tank vapor pressure.
  3. Install the CH-48027  . Refer to Fuel Pressure Gage Installation and Removal .
  4. Once the system pressure is completely relieved, remove the CH-48027  . Refer to Fuel Pressure Gage Installation and Removal .
  5. Tighten the fuel fill cap.
