Installation Procedure

  1. Lubricate the insulators with spray lubricant.

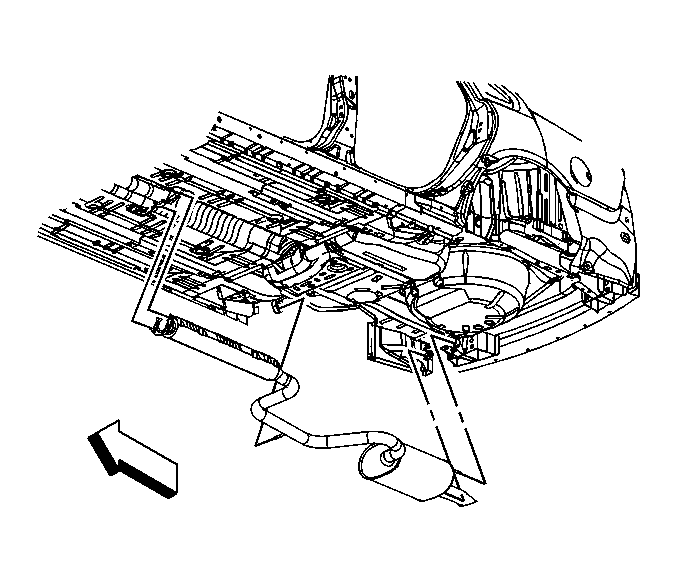

    Fig 1: View Of Muffler Assembly & Exhaust Insulators
    GM1618671Courtesy of GENERAL MOTORS CORP.
  2. With the aid of an assistant, install the muffler assembly to the exhaust insulators.
  3. Install the catalytic converter. Refer to Catalytic Converter Replacement (RPO LS4)  or Catalytic Converter Replacement (RPOs LZE/LZ4/LZ8) .
