Horn Switch Replacement
Horn Switch Replacement

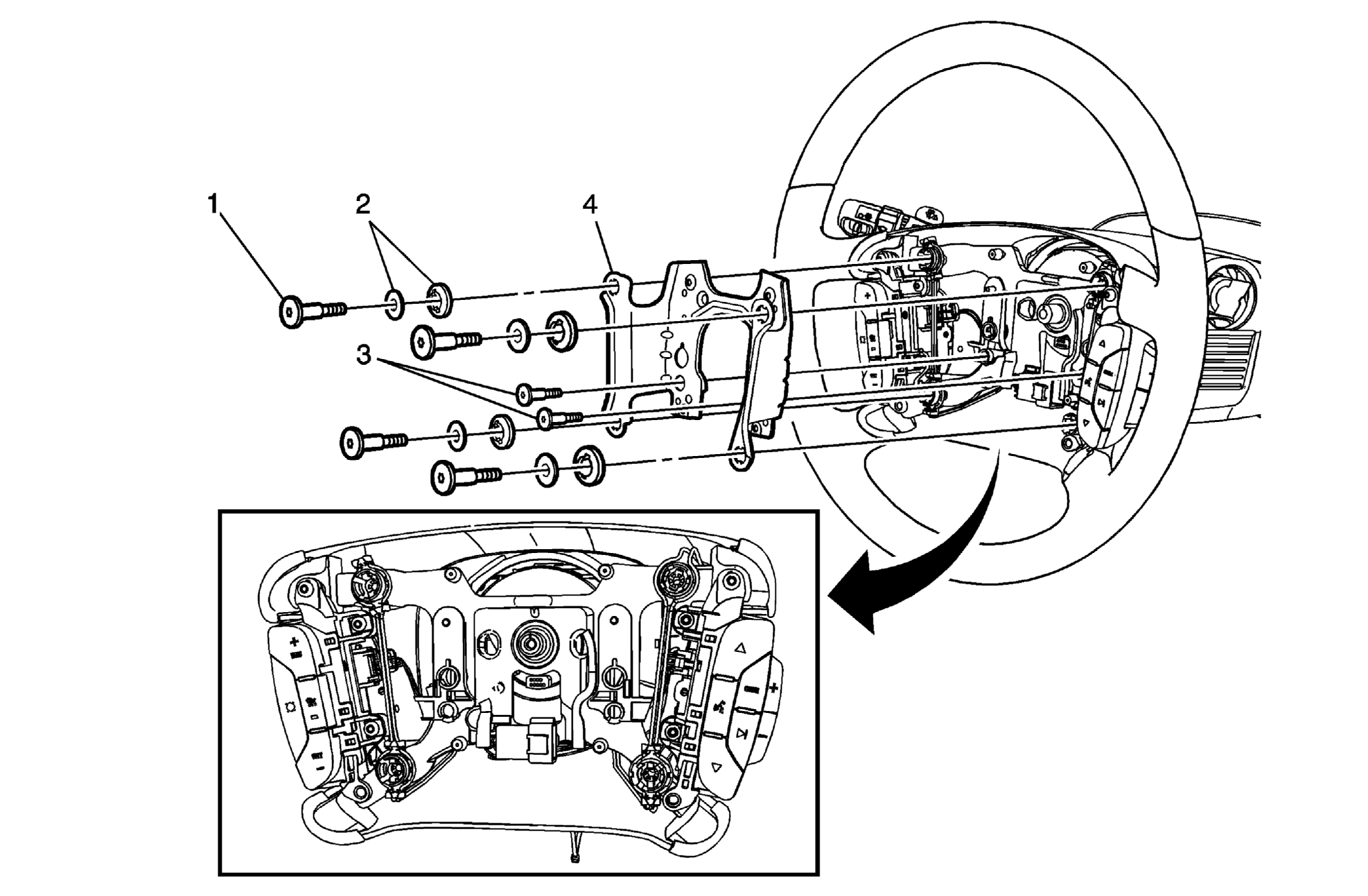

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications
.Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement
. |
|
| 1 | Steering Wheel Horn Switch Bolts (Qty: 4) Tip: Hand start the bolts on installation to avoid cross threading. Tighten: 7 N.m (62 lb in) |
| 2 | Steering Wheel Horn Switch Washers (Qty: 4) |
| 3 | Steering Wheel Horn Switch Screws (Qty: 2) Tip: Hand start the screws on installation to avoid cross threading. Tighten: 5 N.m (44 lb in) |
| 4 | Steering Wheel Horn Switch Assembly Tip: Disconnect the steering wheel horn switch elecrtical connector. |
