Installation Procedure

    Fig 1: Identifying Battery Current Sensor & Battery Cable
    GM1617007Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the tape tab is pointing away from the battery prior to installation.
  1. Slide the NEW battery current sensor (1) up onto the battery cable.
  2. Using NEW tie straps and electrical tape, attach the battery current sensor to the negative battery cable.

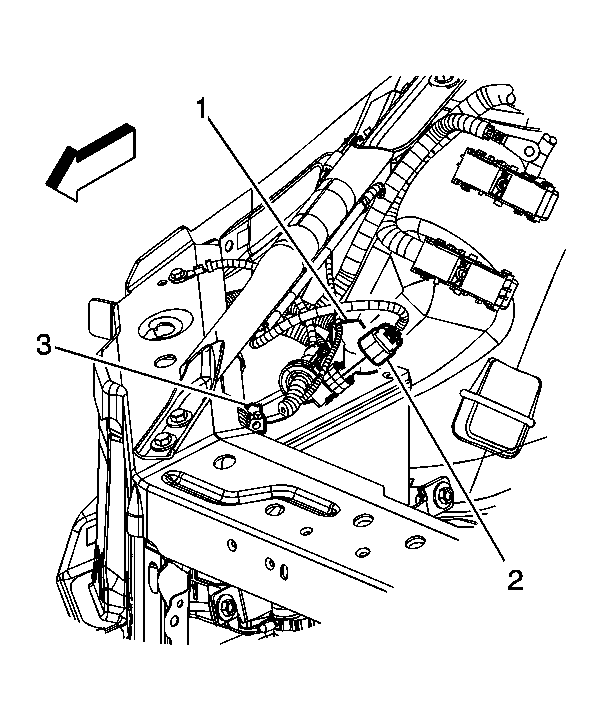

    3. Fig 2: Identifying Negative Battery Cable Terminal & Battery
    GM1616995Courtesy of GENERAL MOTORS CORP.
  3. Install the positive and negative battery cable. Refer to Battery Positive and Negative Cable Replacement (RPO LS4)  or Battery Positive and Negative Cable Replacement (RPOs LZE/LZ4/LZ9) .
  4. Connect the I/P harness electrical connector (2) to the battery current sensor.
