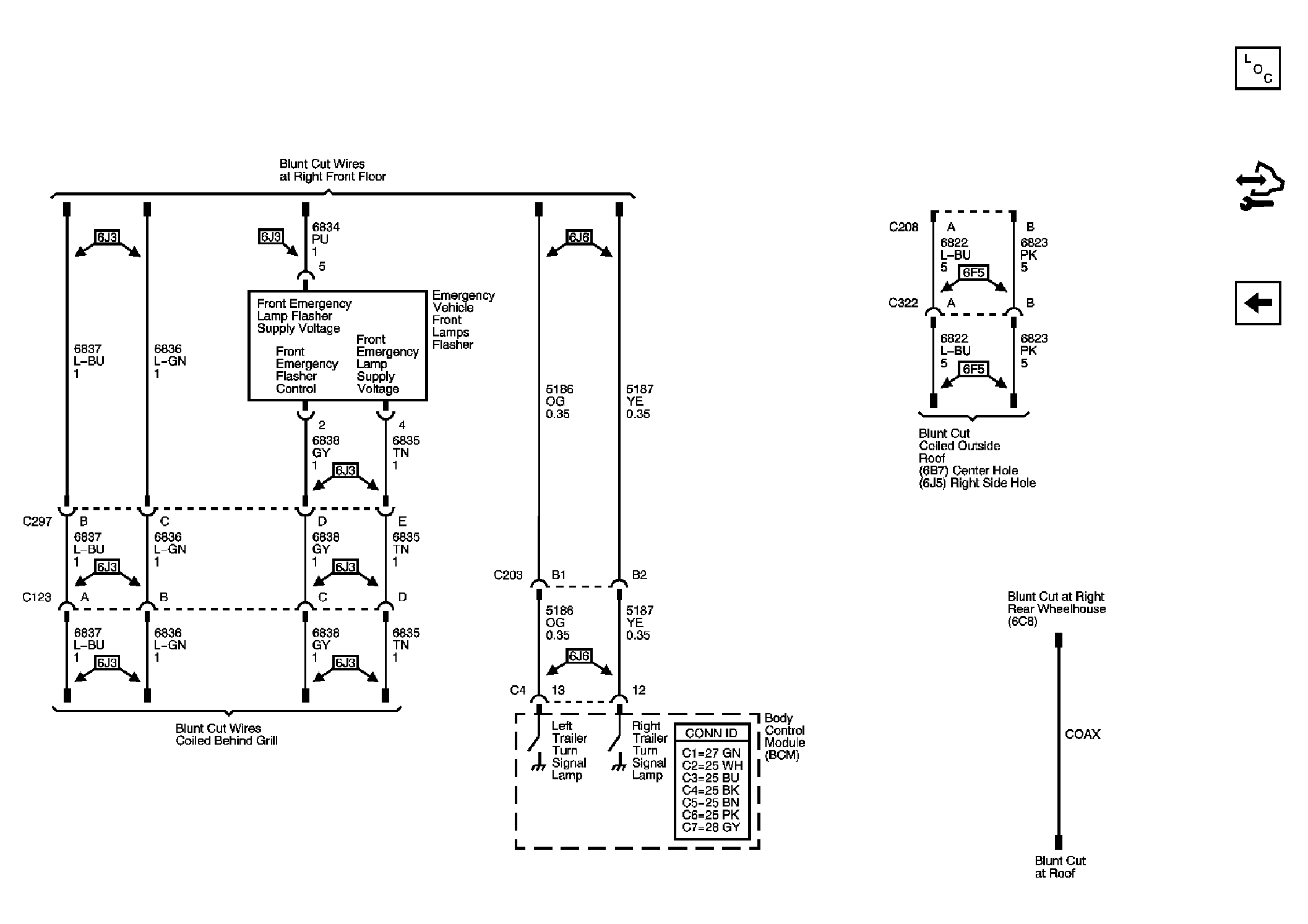

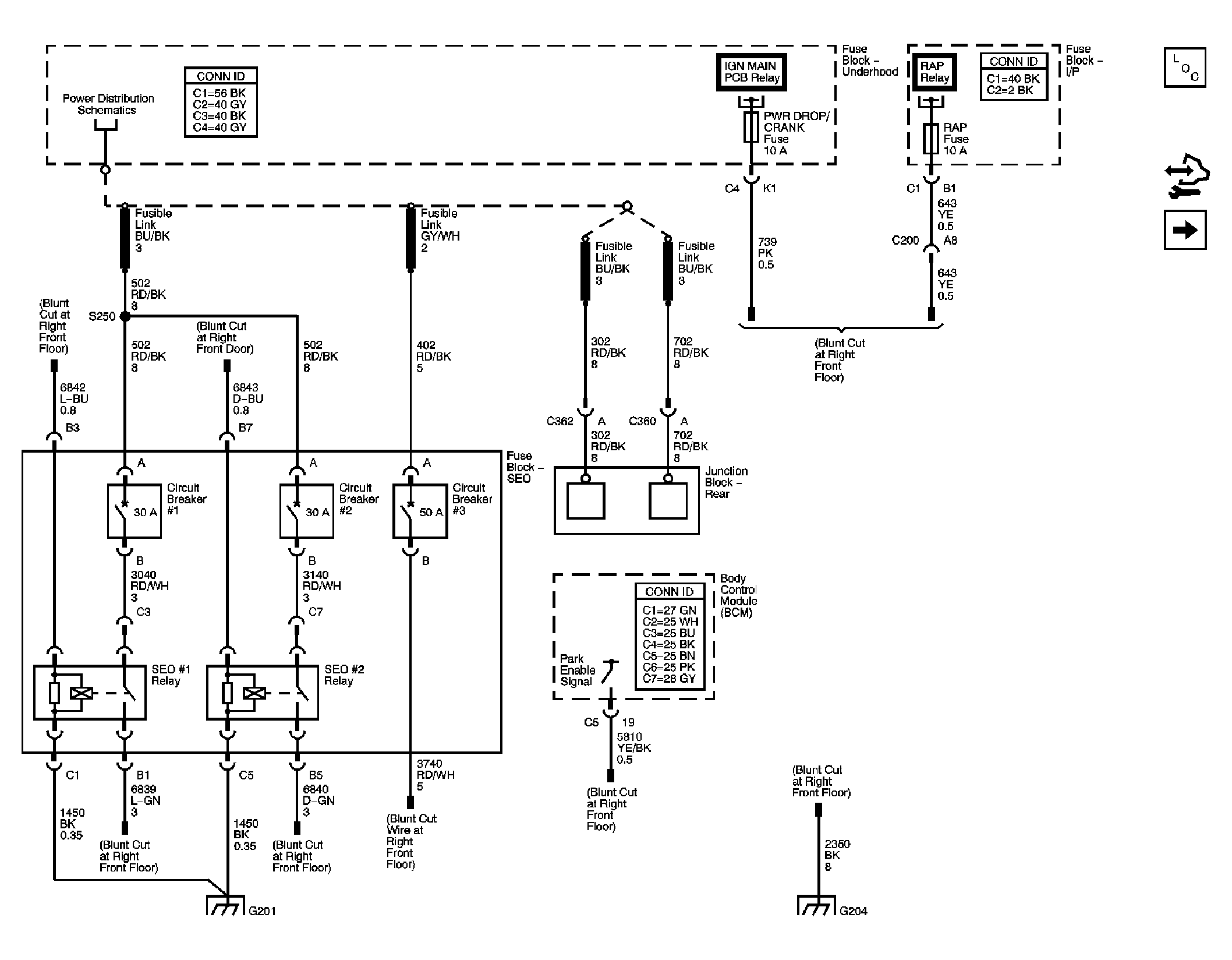

Home >> Chevrolet >> 2007 >> Impala SS >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiring Systems And Power Management - Introduction >> Schematic and Routing Diagrams >> Upfitter Provision Schematics
