Moveable Window Schematics

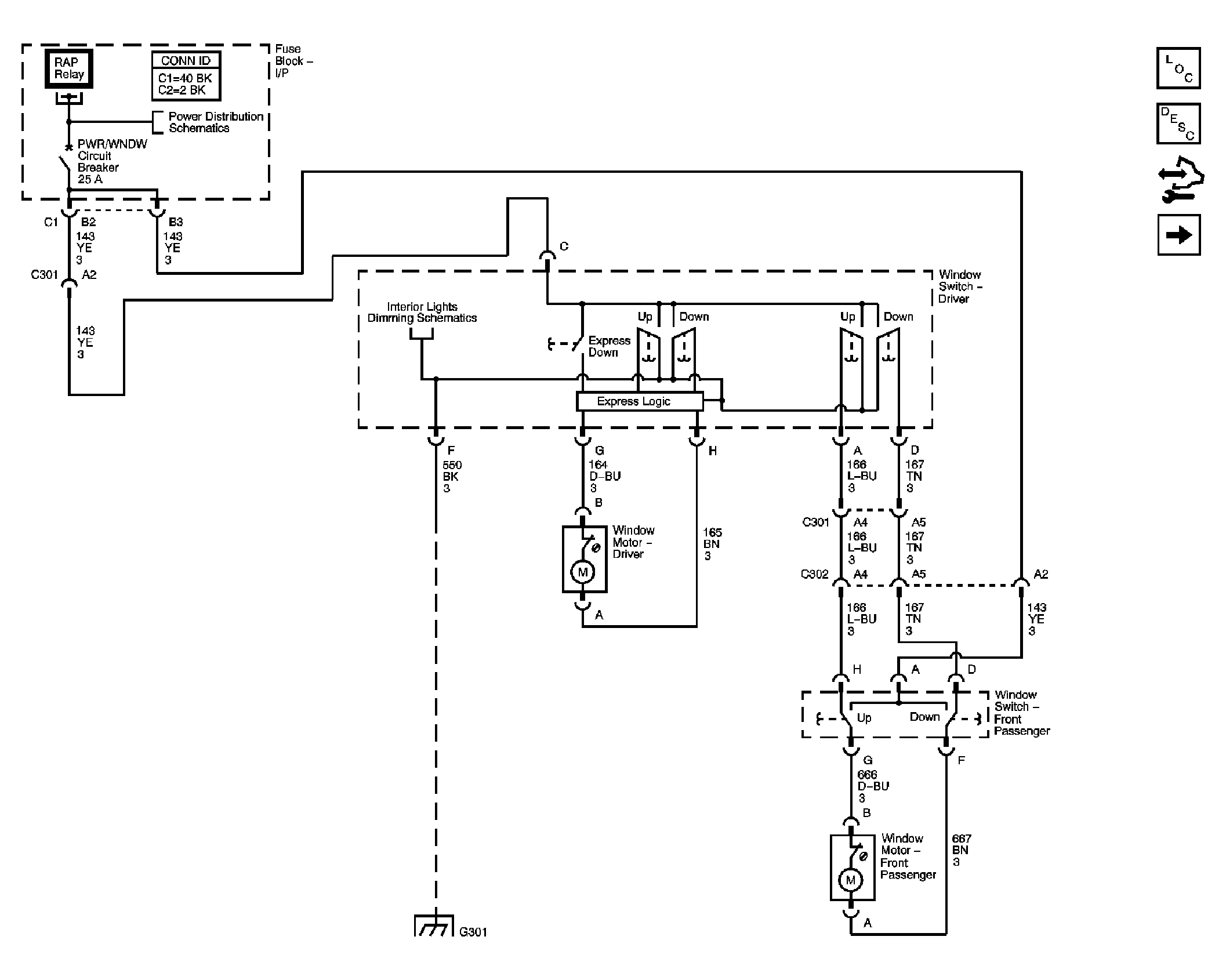

Fig 1: Moveable Window (Coupe) Schematics

GM1761985

Courtesy of GENERAL MOTORS CORP.

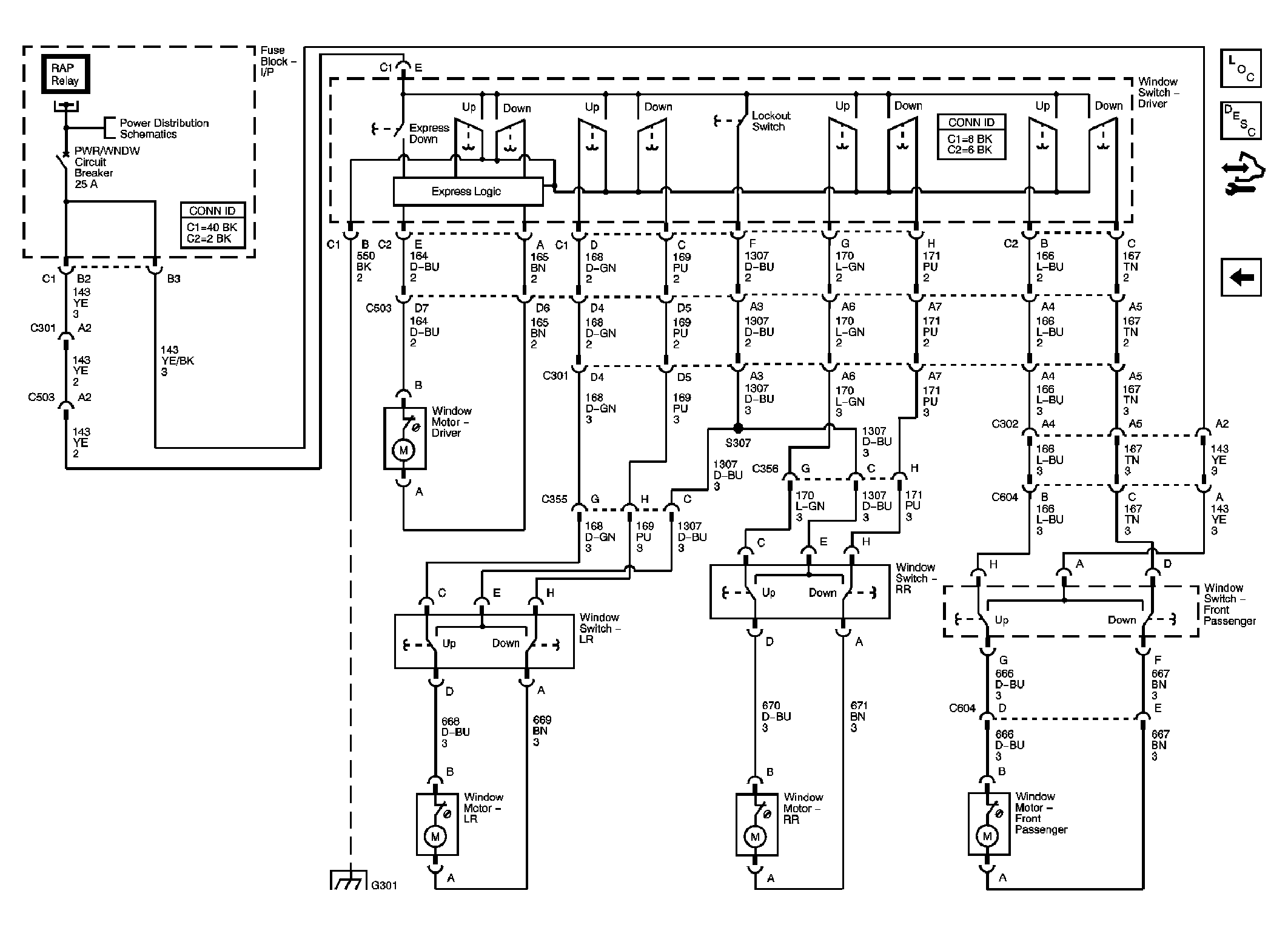

Fig 2: Moveable Window (Sedan) Schematics

GM1761986

Courtesy of GENERAL MOTORS CORP.
