Power Mirror Switch Replacement (Impala)

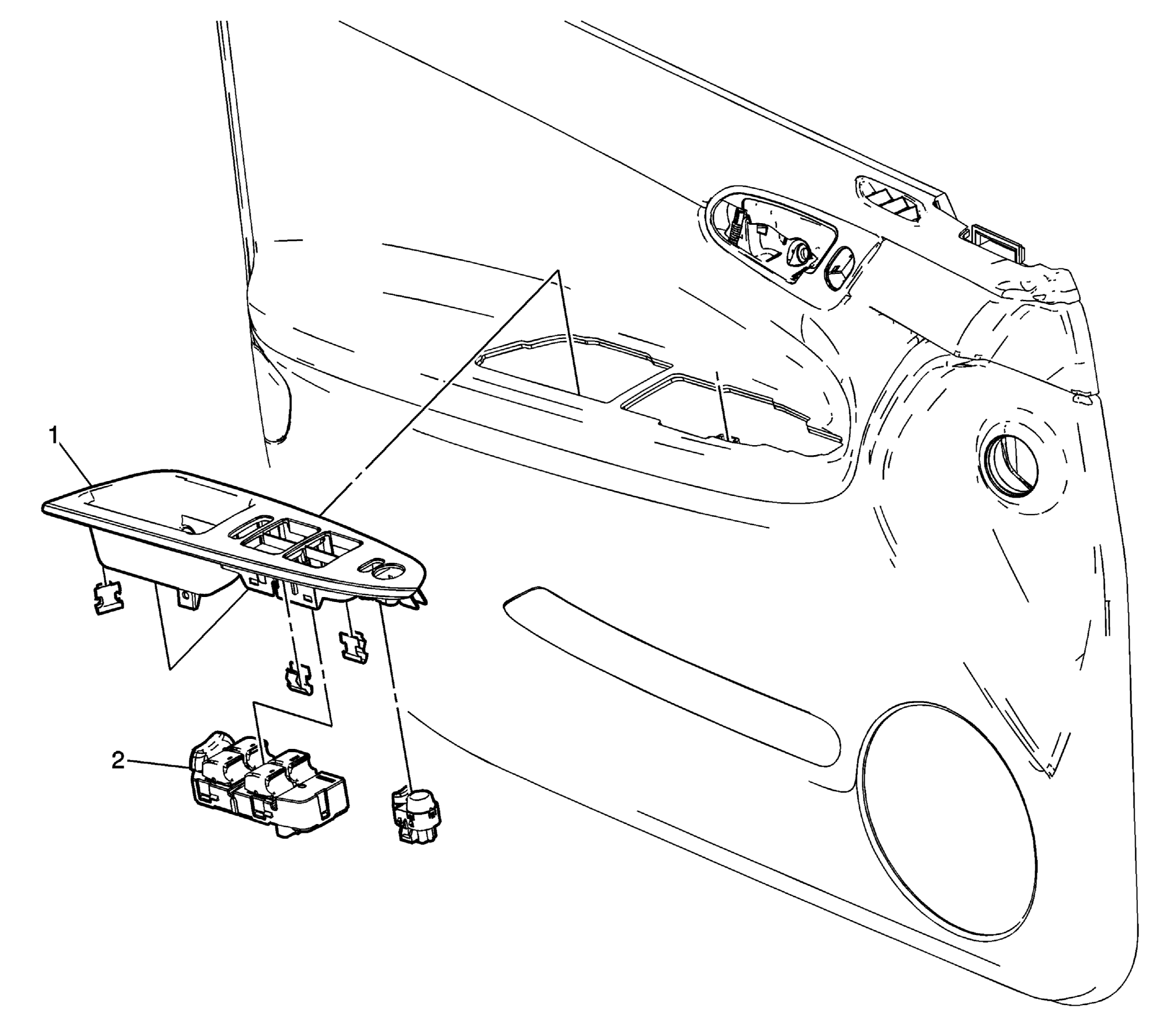

Fig 1: View Of Power Mirror Switch (Impala)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the door panel. Refer to Front Side Door Trim Panel Replacement (Impala) . Remove the front door switch bezel. Refer to Front Door Switch Bezel Replacement (Impala) or Front Door Switch Bezel Replacement (Monte Carlo) .
1	Plate Assembly, Side Door Armrest Switch Mount
2	Switch, Power Mirror

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Plate Assembly, Side Door Armrest Switch Mount

Switch, Power Mirror
