Theft Deterrent System Component Views

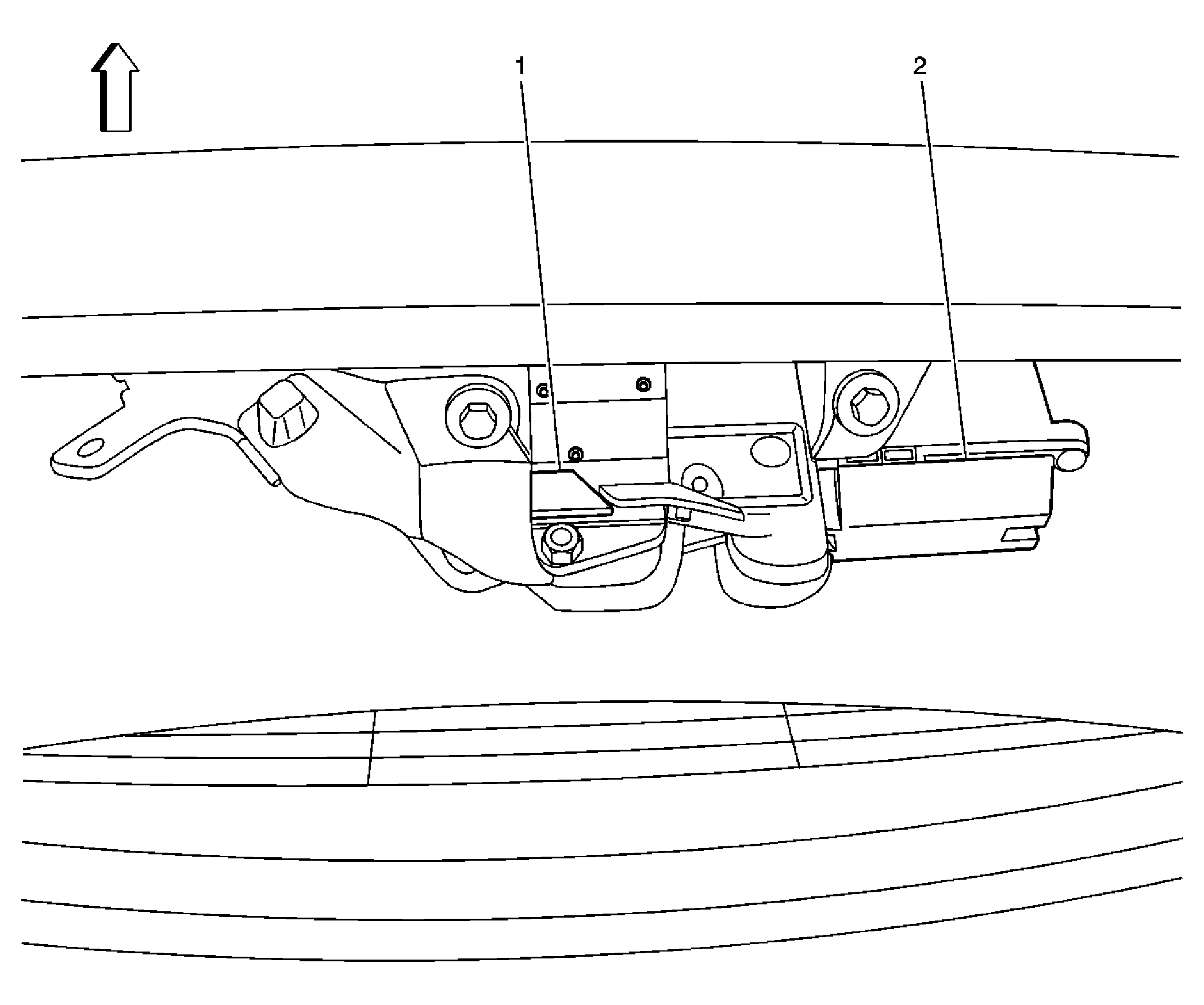

Fig 1: Rear Center of Deck Lid

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Ajar Switch (Coupe)
2	Rear Compartment Lid Release Actuator
