Steering Wheel Secondary/Configurable Control Schematics

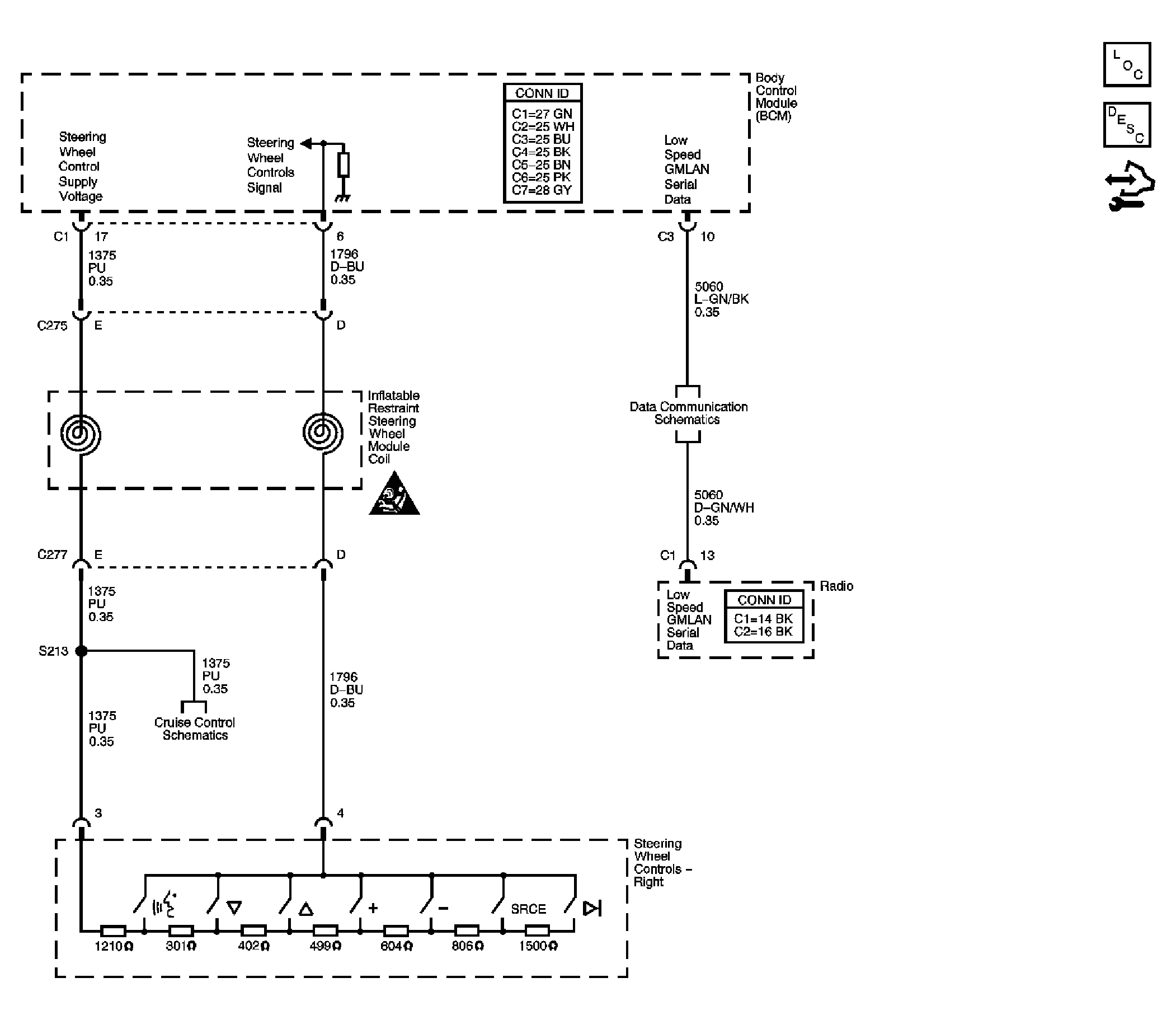

Fig 1: Steering Wheel Secondary/Configurable Control Schematics

GM1762304

Courtesy of GENERAL MOTORS CORP.
