Splice Pack SP207 (Late Production)

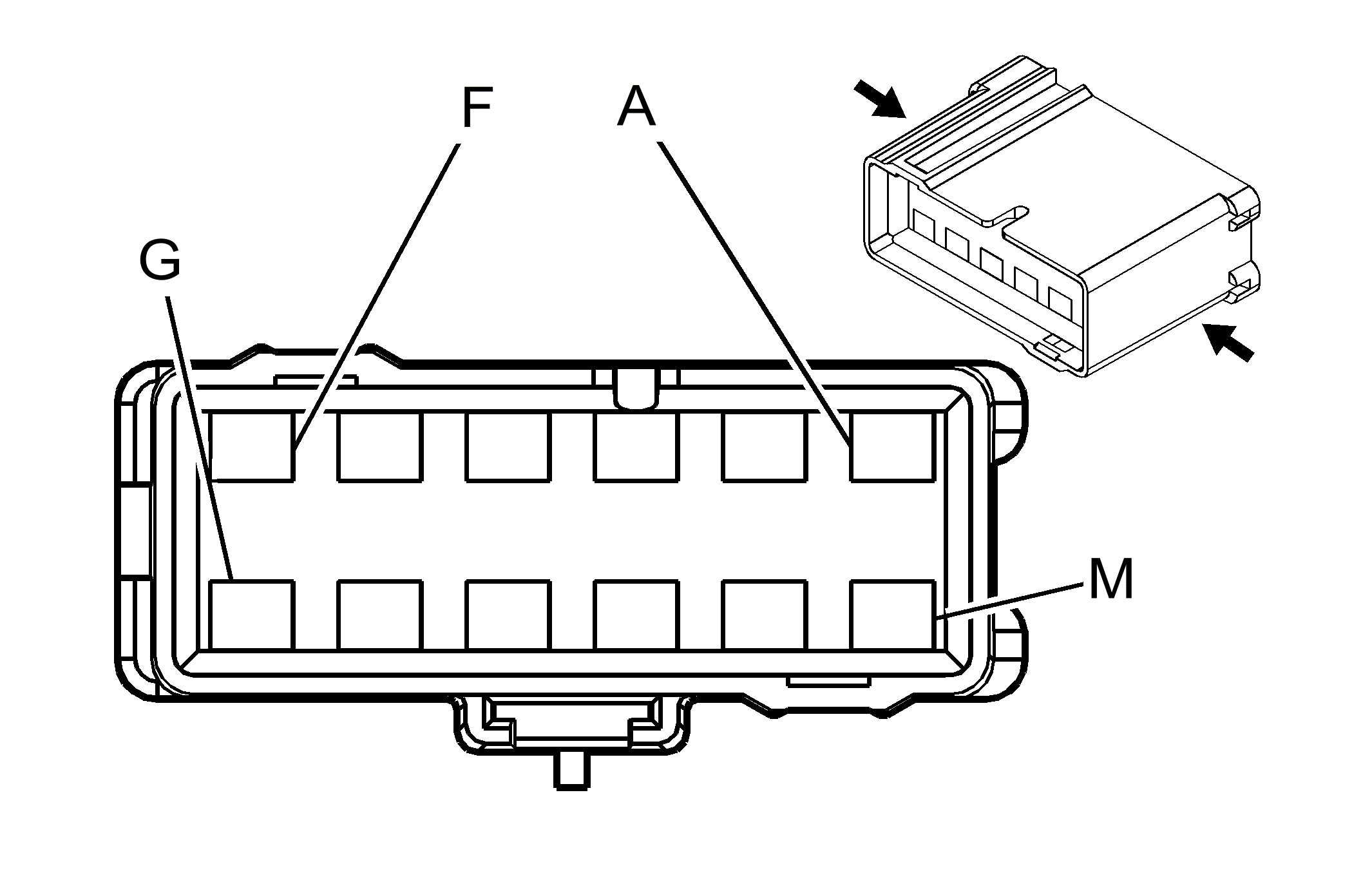

Fig 1: Splice Pack SP207 (Late Production) Connector End Views
GM684861Courtesy of GENERAL MOTORS CORP.
Splice Pack SP207 (Late Production) Connector Parts Information

Connector Part Information
  • OEM: 12176473
  • Service: See Catalog
  • Description: 12-Way F Metri-Pack 280 Series Splice Saver (BK)
Terminal Part Information
  • Pins: A,B,C,D,E,F,G,H,M
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: J,K,L
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Splice Pack SP207 (Late Production) Connection Terminal Identification

Pin Wire Color Circuit No. Function
A D-BU 5985 Accessory Wakeup Serial Data
B D-BU 5985 Accessory Wakeup Serial Data
C D-BU 5985 Accessory Wakeup Serial Data
D TN 28 Horn Relay Control
E TN 28 Horn Relay Control
F TN 28 Horn Relay Control
G GY 8 Instrument Panel Lamp Supply Voltage
H GY 8 Instrument Panel Lamp Supply Voltage
J GY 8 Instrument Panel Lamp Supply Voltage
K PU/WH 1382 LED Dimming Supply
PU/WH 1382 LED Dimming Supply
L PU/WH 1382 LED Dimming Supply
PU/WH 1382 LED Dimming Supply
M PU/WH 1382 LED Dimming Supply
