Engine Electrical Component Views

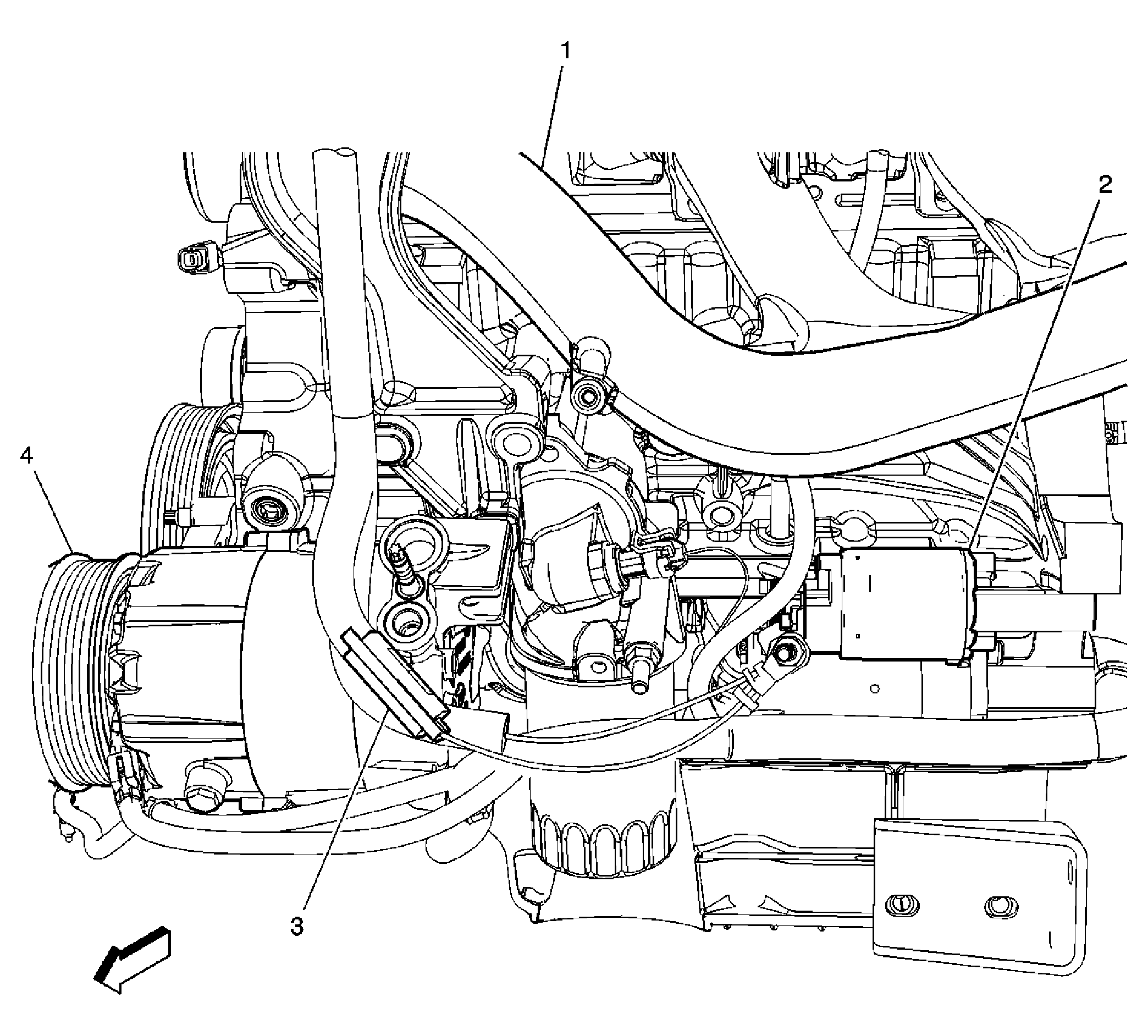

Fig 1: Lower Front Of Engine (LZE, LZ4, LZ4)
GM1700485Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exhaust Manifold
2 Starter
3 Cable Pro Fuse (6J1)
4 A/C Compressor Clutch

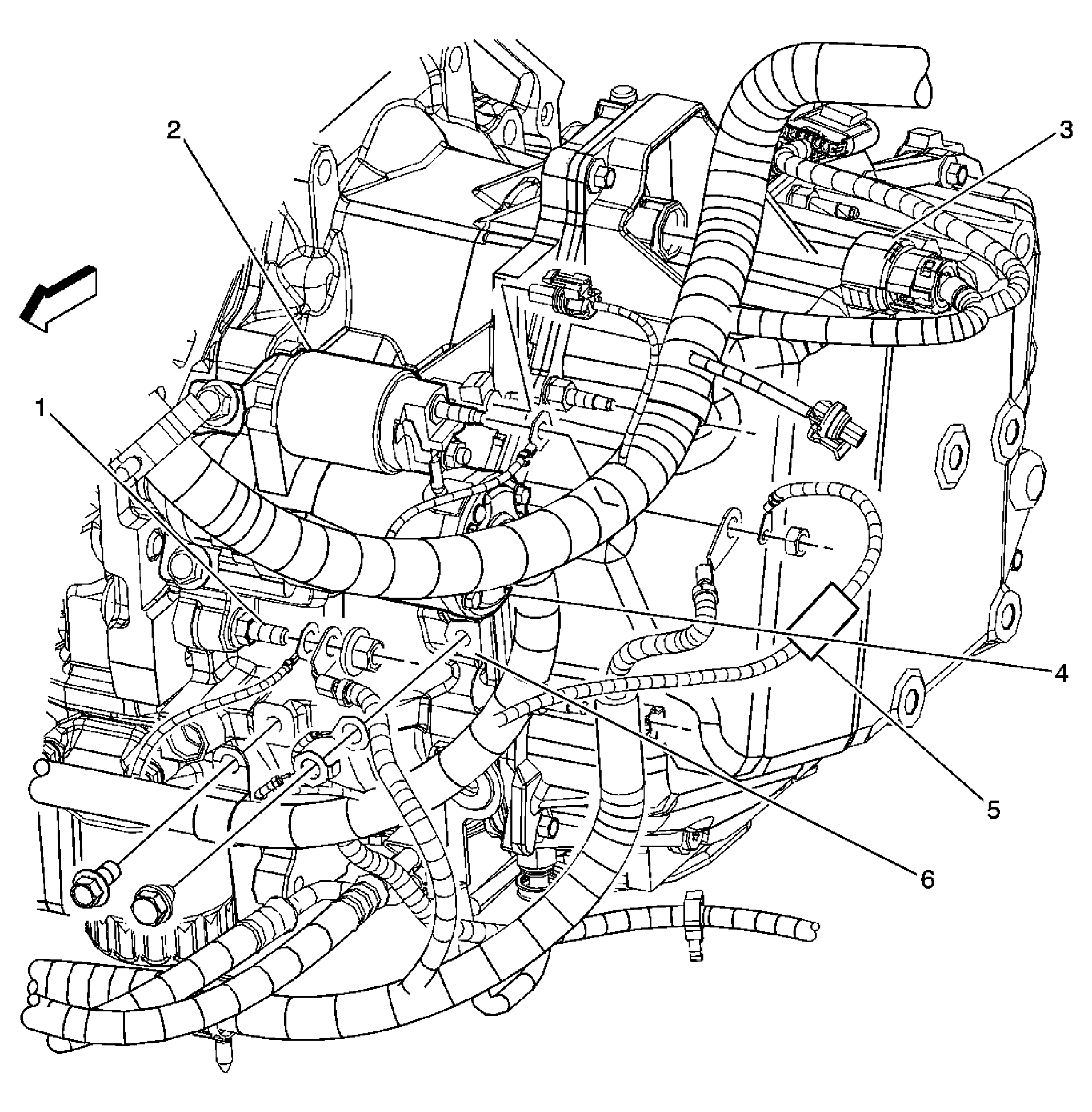

Fig 2: Front of Engine (LS4)
GM1591683Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G111
2 Starter Solenoid
3 C100
4 Starter
5 Cable Pro fuse
6 G113
Fig 3: RF of Engine Compartment
GM1653146Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block - Underhood
2 Generator
3 Brake Fluid Level Switch
4 Battery
5 Inflatable Restraint Front End Sensor - Right
6 G100
7 Horn Assembly
8 Windshield Washer Fluid Container
9 Windshield Washer Fluid Level Switch
10 Windshield Washer Fluid Pump
11 Battery Current Sensor
12 G102

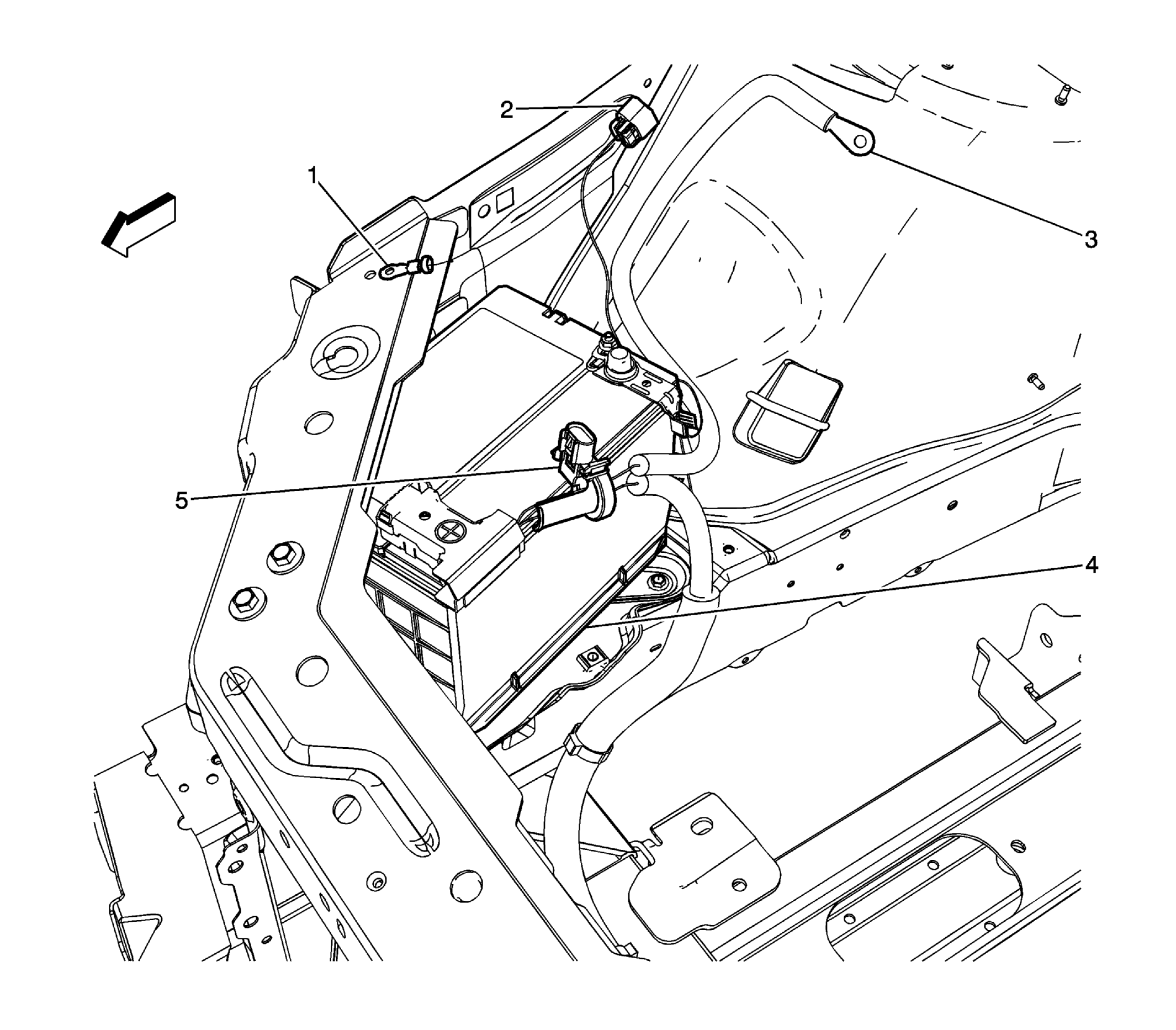

Fig 4: Battery Attachments (LZE, LZ4, LZ9)
GM1700153Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102
2 C105
3 Fuse Block - Underhood Positive Battery Cable Terminal
4 Battery
5 Battery Current Sensor

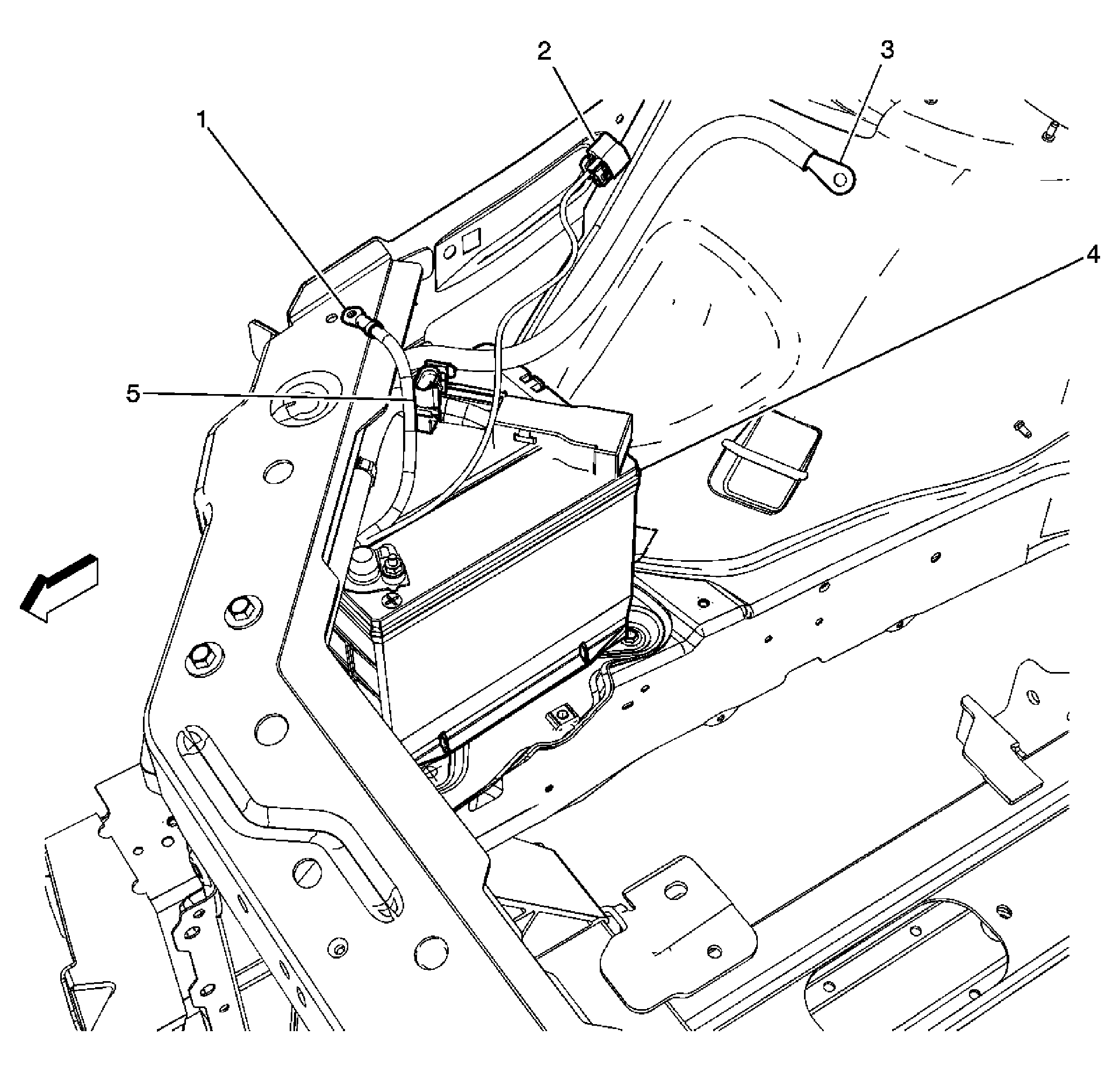

Fig 5: Battery Attachments (LS4)
GM1700152Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G102
2 C105
3 Fuse Block - Underhood Positive Battery Cable Terminal
4 Battery
5 Battery Current Sensor
