Steering Wheel Control Switch Assembly Replacement

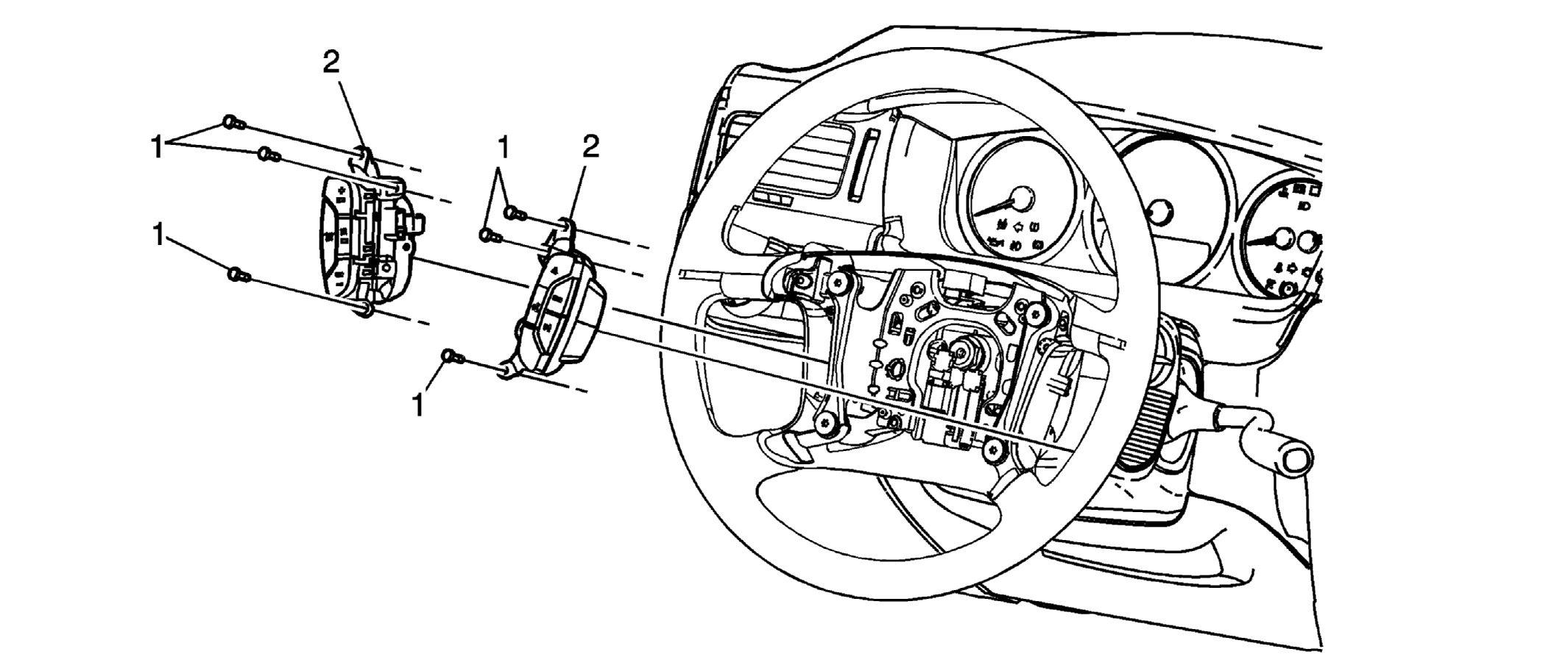

Fig 1: Replacing Steering Wheel Control Switch Assembly
GM1602793Courtesy of GENERAL MOTORS CORP.
Steering Wheel Control Switch Assembly Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1 Bolt/Screw, Steering Wheel Switch
Tip:  Disconnect the electrical connector.

Tighten:  2 N.m (18 lb in)
2 Switch Assembly, Radio, HVAC and Cruise Control Assembly
